Full-color Async controllers A30 1024*512/512*1024 2of50PIN LED display control card | Электронные компоненты

Types

Model

Loading range pixeis(W*H)

HUB port

Main function

Sending card

HD-T901

1280*1024@60Hz, 2048*1024@30Hz

DVI input*1,USB inpu*1,Gigabit LAN output*2

Synchronus Card,need Match Receiving Card And Video Processor

Full-color Async controllers

HD-D15

D15 Control Range:640*64

4*HUB75E

1、High cost-effective for vehicle-mounted or lintel screen,video,image,3Dtext,aninmati0n,etc

2、Support HD video hardware decoding,4G memory,RJ45,USB,etc.

3、HAveoptionof wifi or 3g or 4g version,for wireless ＆cluster manage via phone app＆ cloud

HD-D30

1024*64,512*128

1of50PIN

HD-C15C

384*320 ,1024*120,240*512

10* HUB75E

1、high cost-effective f0r middle/large full color display,Asyn video wall casade control system

2、Have optional wifi or 3g or 4g version,for wireless cluster manage via phone app ＆ Clouds

3、Support HD video hardware decoding,4G memory,0-65536 higher grayscale and refresh rate

4、USB flash expand unlimited program,plug and play dierectly ,USB play directly for video

5、Suppport video,image,3D text,animation,double track stereo aubio output,weather,etc.

6、RJ45 out＆input port,no need IP settinng automatically recognize;

7、A3/A6 box standard equipped with WiFi module,8G memory.

HD-C30

C30Control Range:640*320

2of50PIN

HD-C35

C35 :1024*512

2of50PIN

HD-A3

1024*512,widest 4096,highest 2048

Need match receivibg card

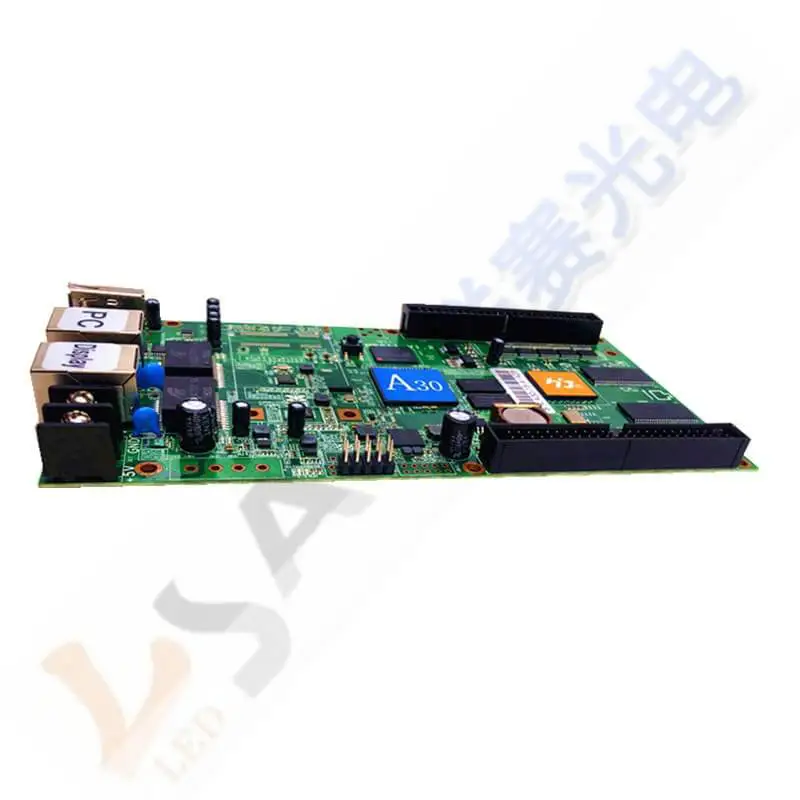

HD-A30

1024*512, 512*1024

2of50PIN

HD-A30+

1024*512, 2048*256,3840*128,256*2048

Need match receivibg card

HD-A601

800*600,2048*232, 3840*112, 232*2048

Need match receivibg card

HD-A602

1280*720,2048*450, 3840*240, 450*2048

Need match receivibg card

HD-A603

1920*1080,2048*1012,3840*540,1012*2048

Need match receivibg card

Receiving

HD-R5018

256*128, 128*256

8*HUB75E

1、Two ethernt ports,receive data viagigabit ethenet cable

2、Workingwith

C15/C30/C15/C35/A30/A30+/A601/A602/A603/A3/A6/T901

HD-R501

256*192, 128*384

12*HUB75E

Wi-Fi module

Mobile App Wi-Fi control or Internet cloud

Ouly use full color cards

Add on D10/D30/C30/A30/A30+/A601/A602/A603/A3

3G module

3G Internet cloud remote control

Ouly use full color cards

4G module

4G Internet cloud remote control

Ouly use full color cards

HUB75E-5

Input:1*50pin

Output: 5*HUB75E

Controller  D30 Olny

HUB75B-8

Input: 2*50pin

Output: 8*HUB75B

Controller  C10/C30/D30/A30/R500

HUB75E-10

Input: 2*50pin

Output: 10*HUB75E

Controller  C10/C30/D30/A30/R500
