2.4G 4Ch Mini Frsky D8 Compatible Receiver with Pwm Output for Djt/Dft/Dht Transmitter Rc Fpv Racing Drone | Игрушки и

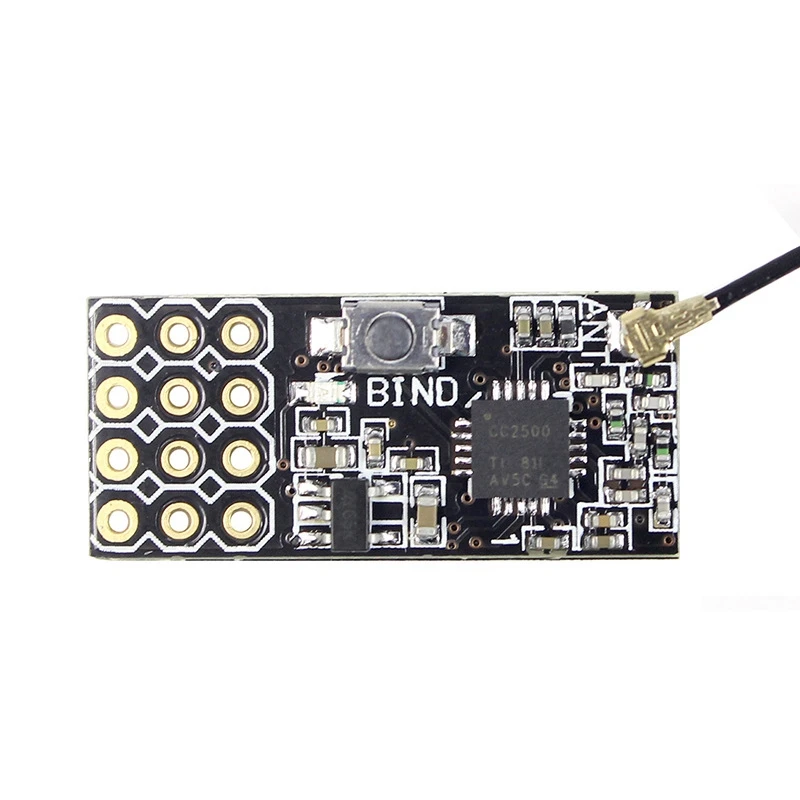

How To Bind:X9D: Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power.
DJT, DFT: Hold the TX module button and power on transmitter, at this point the TX module get into binding mode. Power on receiver press and hold BIND, LED off when binding completed, release BIND key after transmitter restart, finally restar receiver.
XJT: Dip switch select D8 mode, and then the same way as above.
Failsafe:Currently only support the third channel failsafe, can not be defined by yourself, so keep the throttle channel in the third channel.
Description:

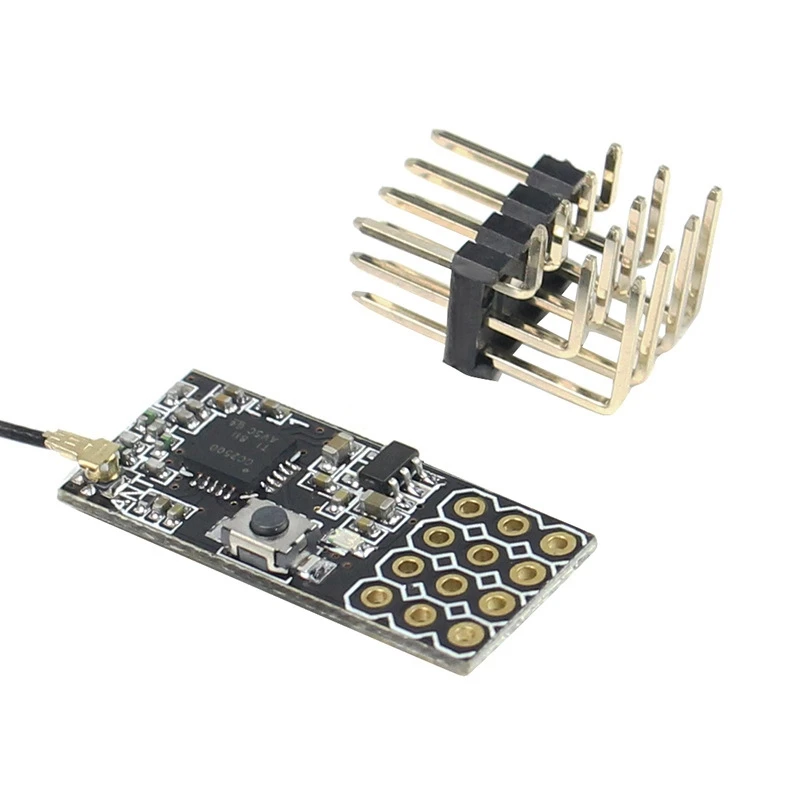

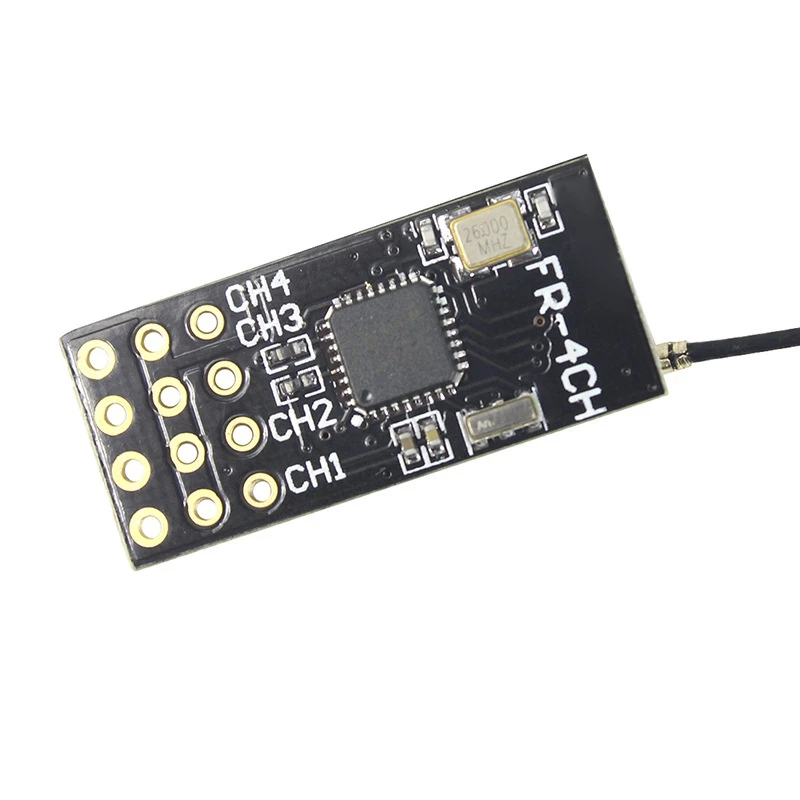

Item Name: 2.4G mini receiver
Channel: 4CH
Resolution: 1024
PWM Output: Yes
Operating Voltage: 3.5-10V
Current: 50MA
Control Range: Greater than 500M+
Compatibility: Compatible with frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT
Note: The plug need to solder by yourself.
Colour:Black + Gold
Material:Metal + plastic
Size:About 2.5x1.1cm

Package Contents:
1x Receiving board
1x Accessory pack
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
