HDMI KVM extender 60M Support USB Mouse Keyboard Over cat5/6 ethernet cable CAT5/6 Extender Audio Video Converter |
The Extender over CAT-5E/6 uses one piece of CAT-5e/6 cable to extend the HDTV display up to 30/45/60/120 meters for 1080p, It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable construction.
1* The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however CAT-5E/6 cables are available everywhere and can be processed easily by the user or installer.
2*Because the head of the long HDMI cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However,CAT-5e/6 cables do not have such problems.
3* With this extender, the transmission distance can be up to 60 meters while using CAT-5e/6 cables, for the general HDMI cables, they must be customized when the length is over 10 meters.
This Extender has many features that enable it to perform in superior manner, among those features and you will find:
1*One pair as a full functional module, no need of setting.
2*CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.

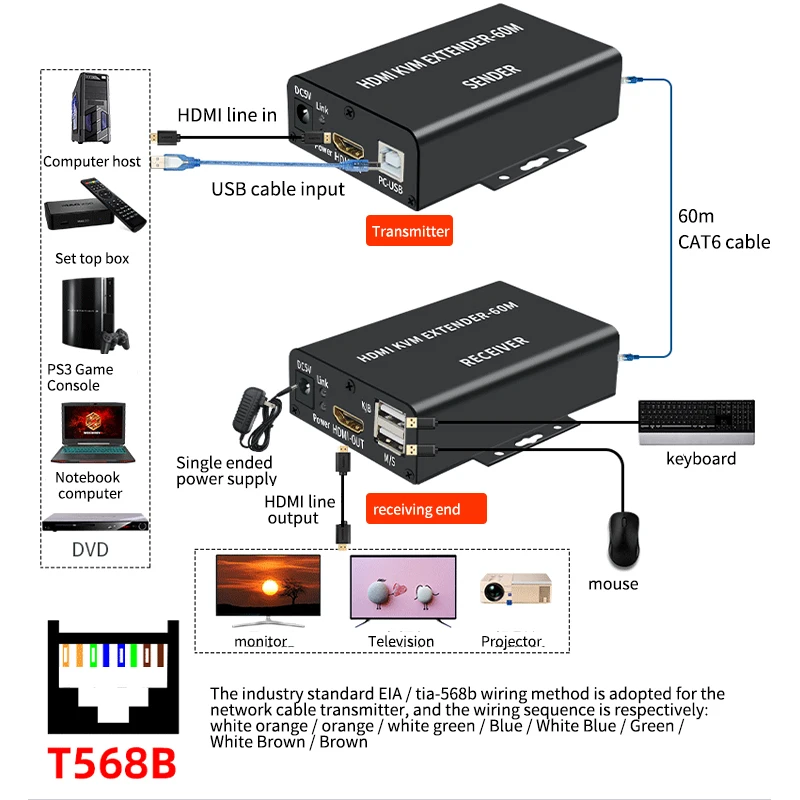

3*CAT-5e/6 follow the standard of IEEE-568B
4*Transmission distance can be up to 30/45/60/120 meters for 1080p while using CAT-5e/6 cable.
Input DDC signal : 5volts p-p(ttl)
Maximum single link range :1920*1080, 1080p
Output video : HDMI
Mouse/Keyboard Interface : USB
DTV/HDTV : 1080p/1080i/720p/576p/480p/576i/480i
HKE60 : 60meters
Interlaced(50&60hz) : 480i 576i 1080i
Progressive(50&60hz) : 480p 576p 720p 1080p
Power consumption : 5wattd(max)
Operating temperature : 0 to+70℃
Operating humidity : 10%to85%RH(no condensation)
Storage temperature : -10℃to+80℃
Storage humidity : 5%to95%RH(no condensation)
External power supply : DC5V @1A

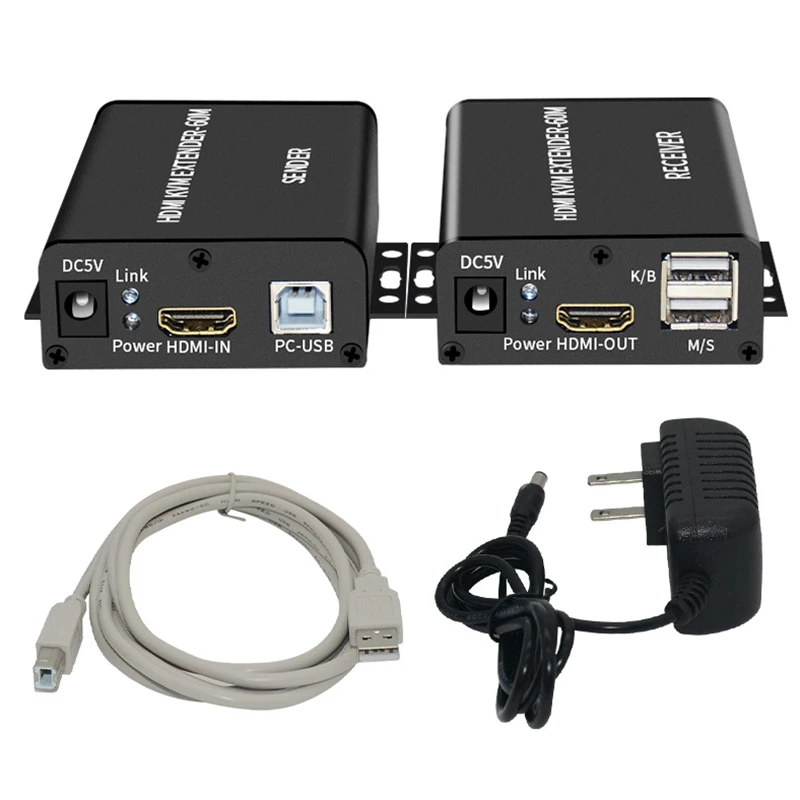

1*DC5V power Plug
1* One USB A-B cable
