SCULPFUN S9 90 effect Laser Engraving Machine cutter 410x420mm Area Full Metal Structure Quick Assembly Design |

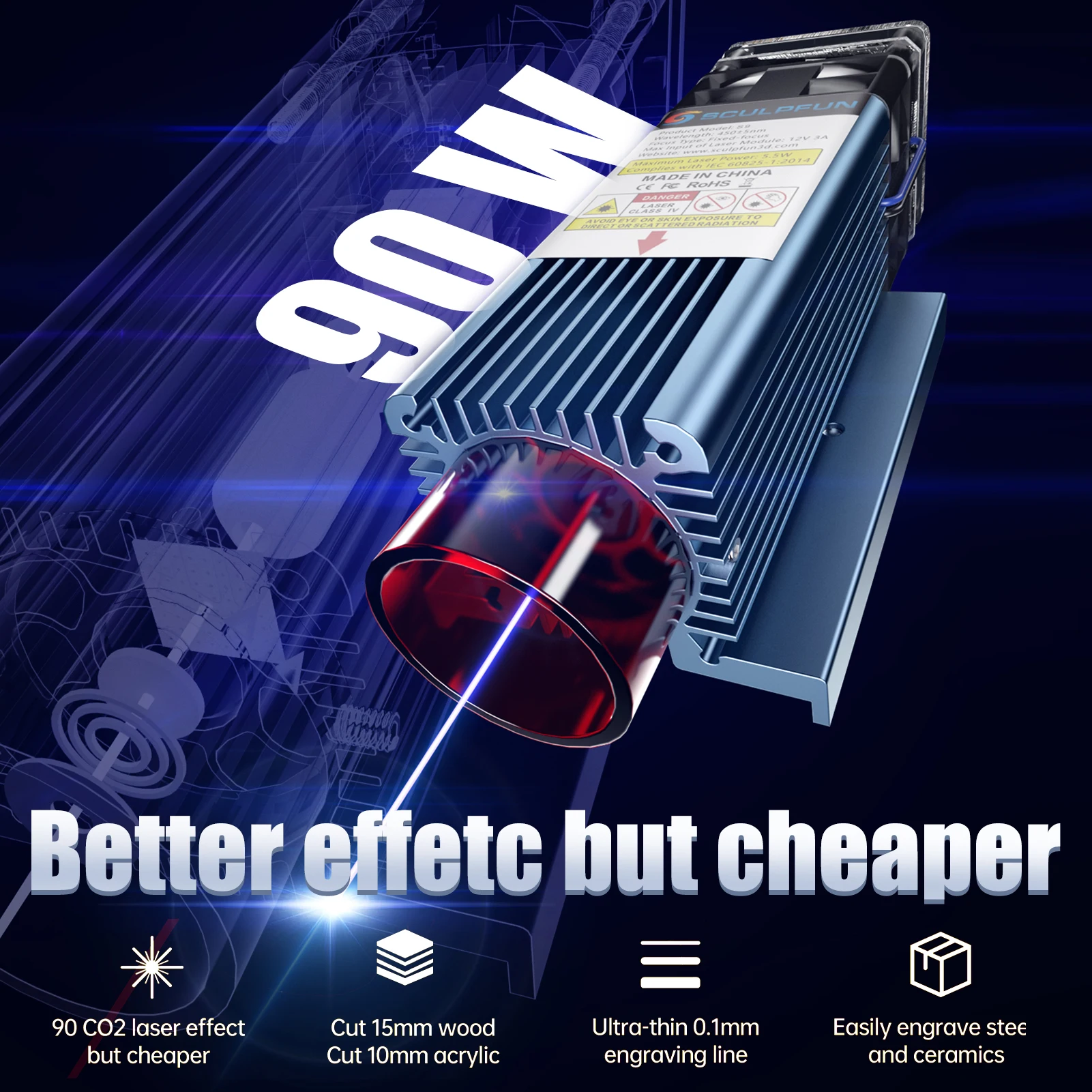

Latest Laser Beam Shaping Technology: S9 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel.
Fast Focusing Design: Combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use.
Solid & Easy Assembly Structure: The full-metal structure design makes the machine work stably, and improves the engraving accuracy. The assembly can be completed in 10-20 minutes. The structural frame is very durable and available to upgrade. During use,
Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, IOS system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. And comes with a A4 size steel pad to protect the table from laser damage. Isolate fire hazards.
8.Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x420mm large-area engraving interval can meet your various engraving needs.
Model: SCULPFUN S9
Engraving Size: 410*420mm

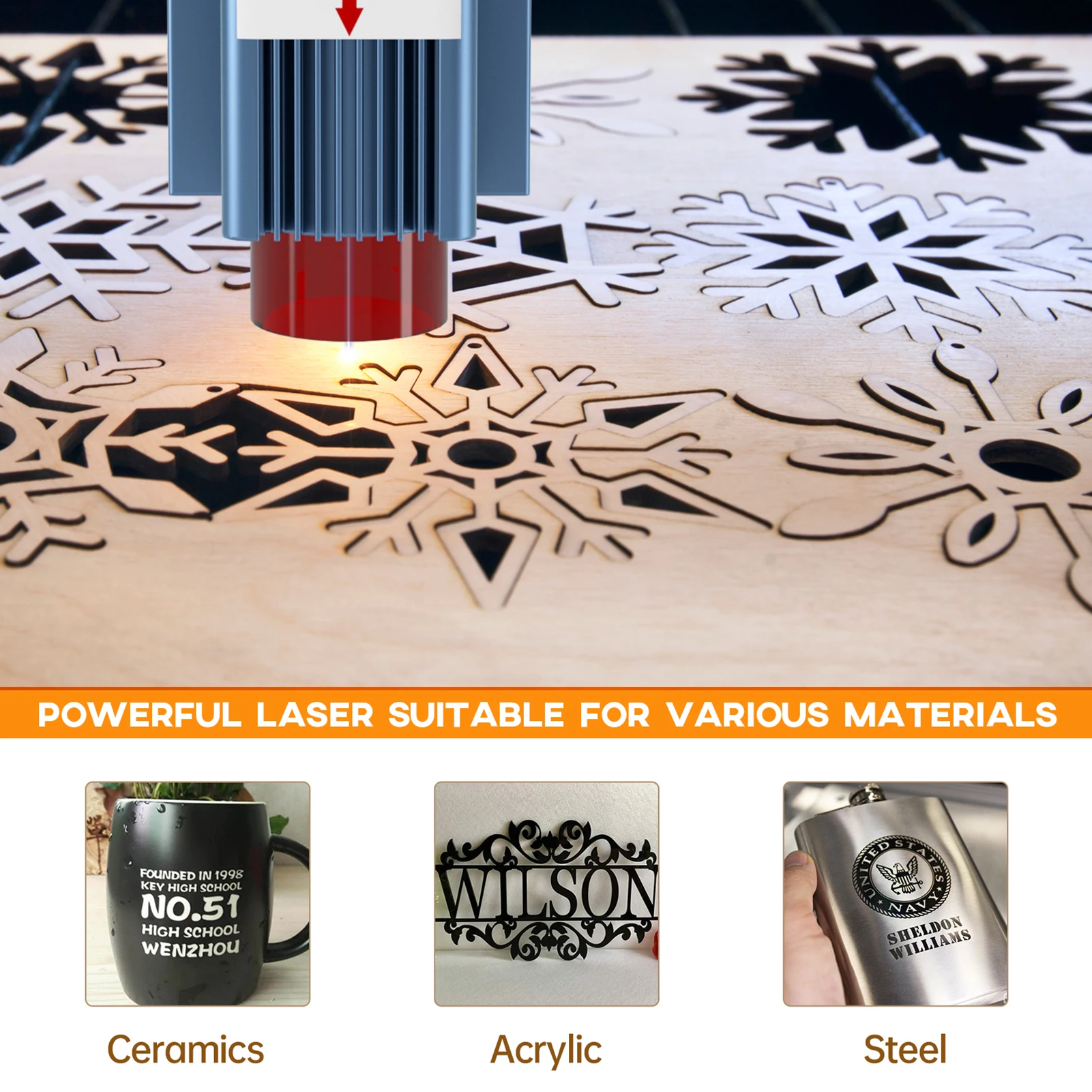

Engraving Materials: Wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, 304 Stainless steel, ceramic，dark stone
Cutting Material: Wood, acrylic, cardboard, fabric, bamboo, plastic board, KT board
Machine Electricity Power: 30W (It has nothing to do with cutting or engraving performance,just electricity consumes)
Diode Laser Power: 5.5-6W
Laser Wave Length 455±5nm
Engraving Accuracy: 0.01mm
Focusing Method: Ffixed focus laser + sliding device
Laser Protective Cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
Operating Software: Compatible with LaserGRBL, LightBurn, Benbox, GrblController, LiteFire,
Operatin System: Compatible with IOS system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data Transmission Method: USB connection
Power Supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Machine Weight: 3.0kg/ 6.61lbs
Package Weight: 4.4kg/ 9.7lbs
Package Size: 59 x 34 x 12cm/23.3 x 13.3 x 4.7in
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
1× X axis assembly
2× X shaft
2× Y shaft
1× Control box module set
3× Support feet
1× Laser module set
1× Power Supply
1× USB cable
1× Tool Kit
1× 10x10cm wood chip 3mm thickness
1× 10x10cm wood chip 10mm thickness

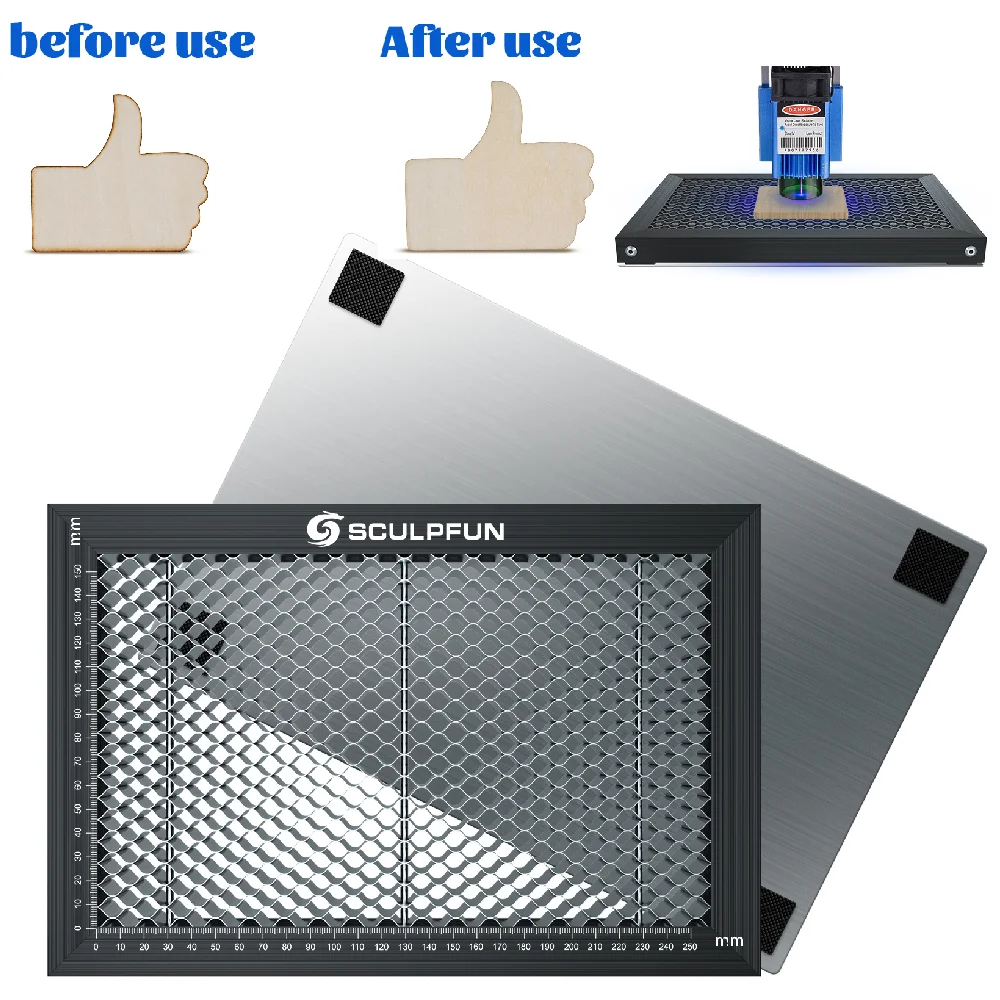

1× A4 size steel desktop protection pad
