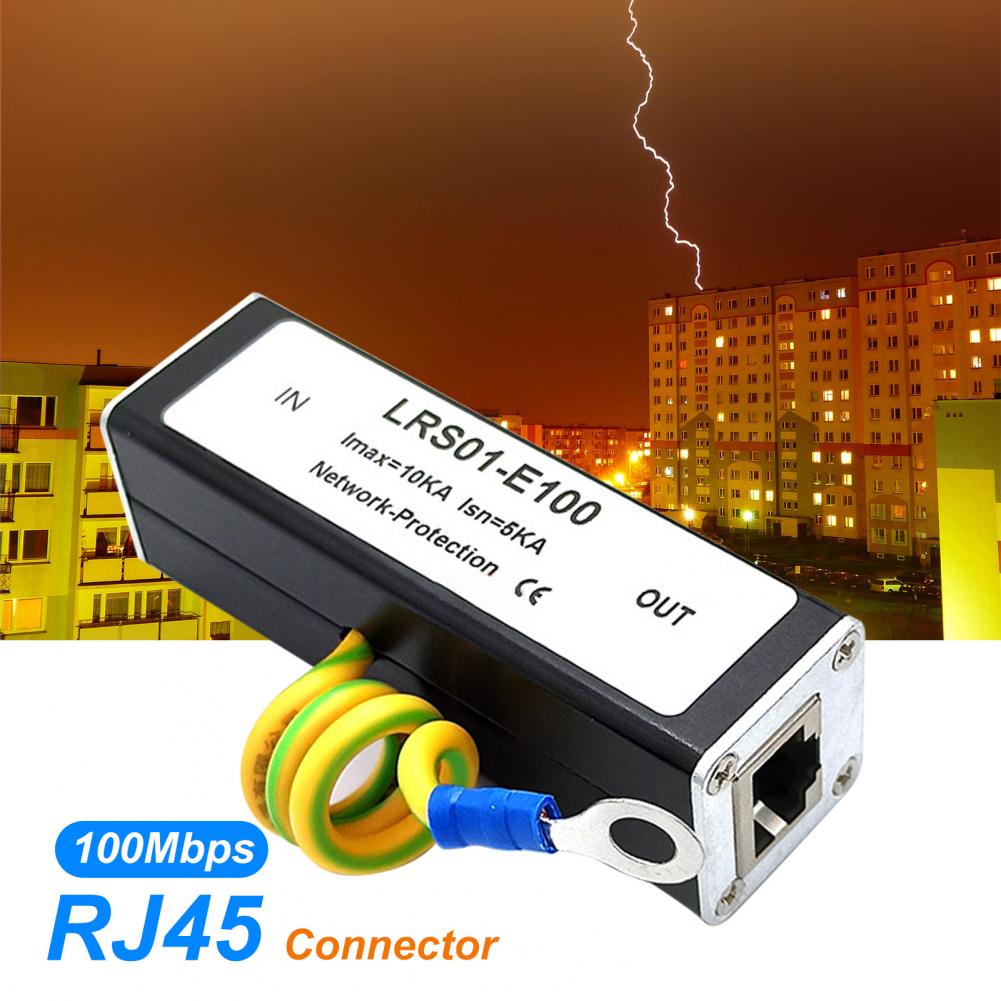

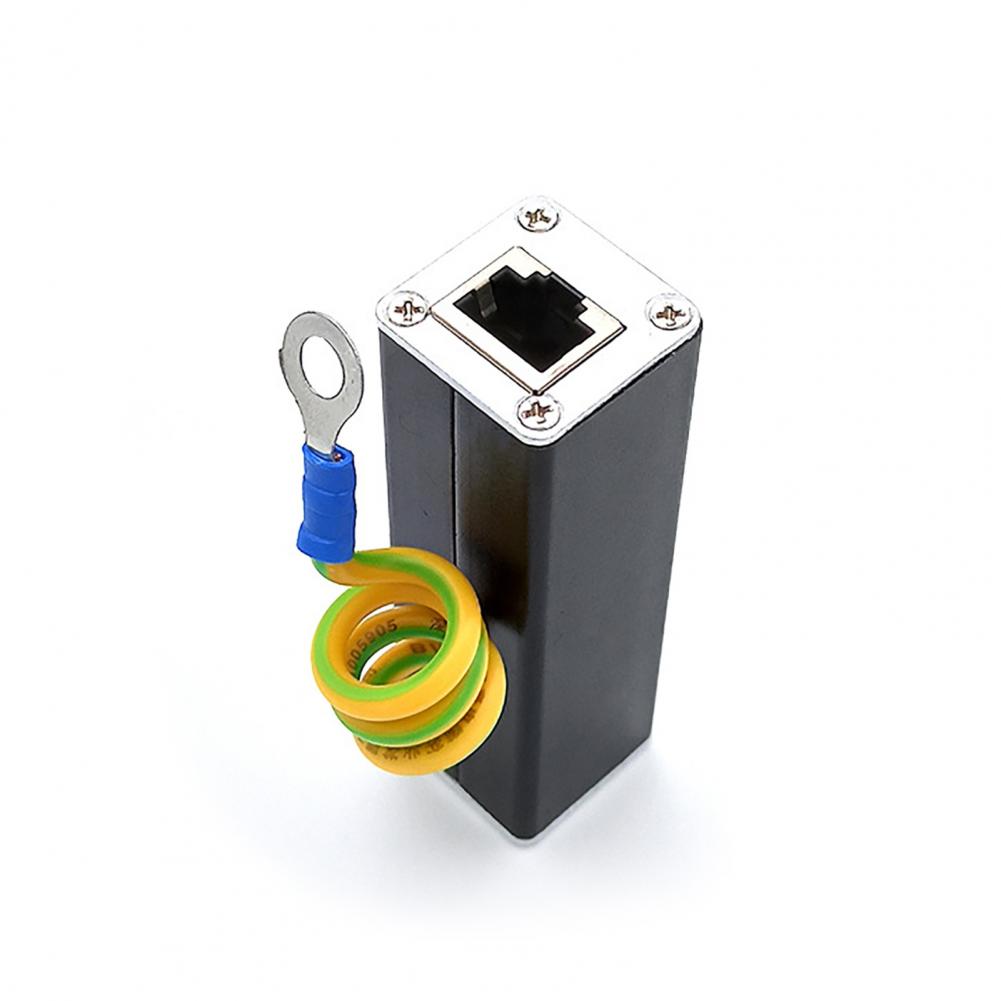

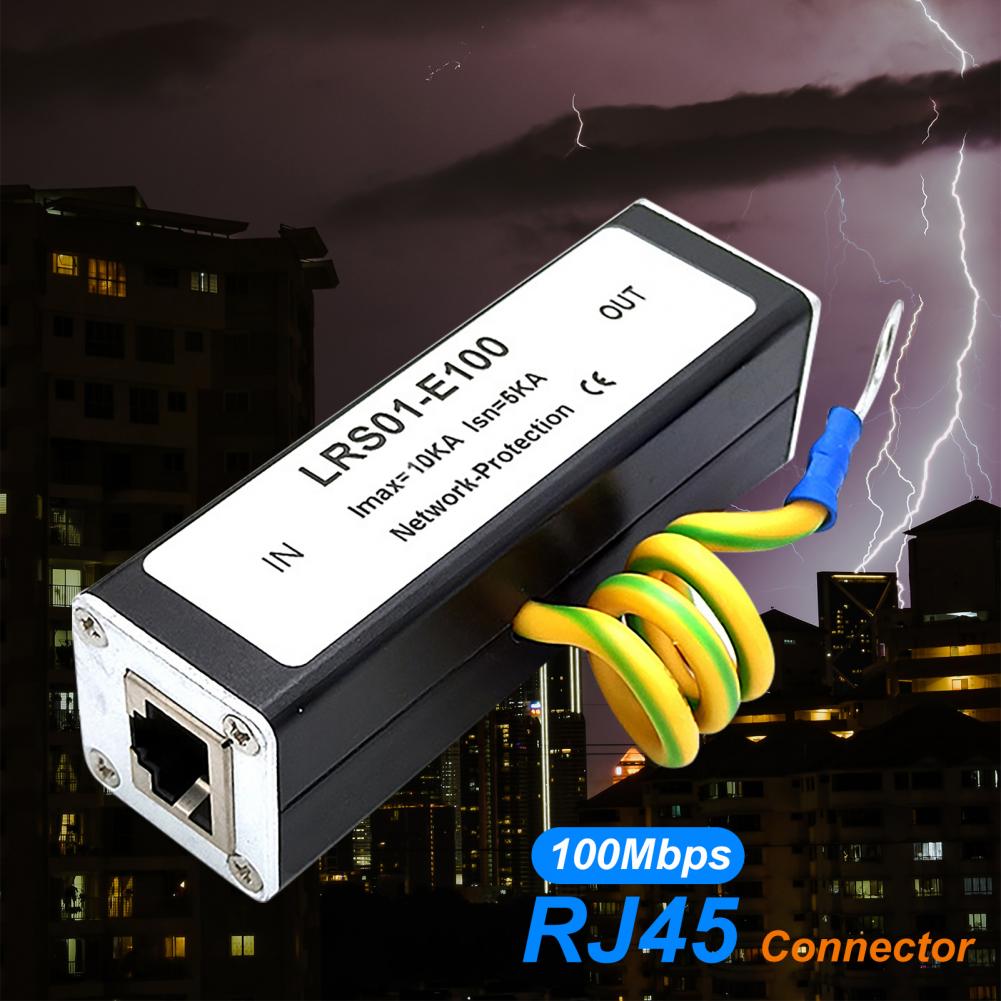

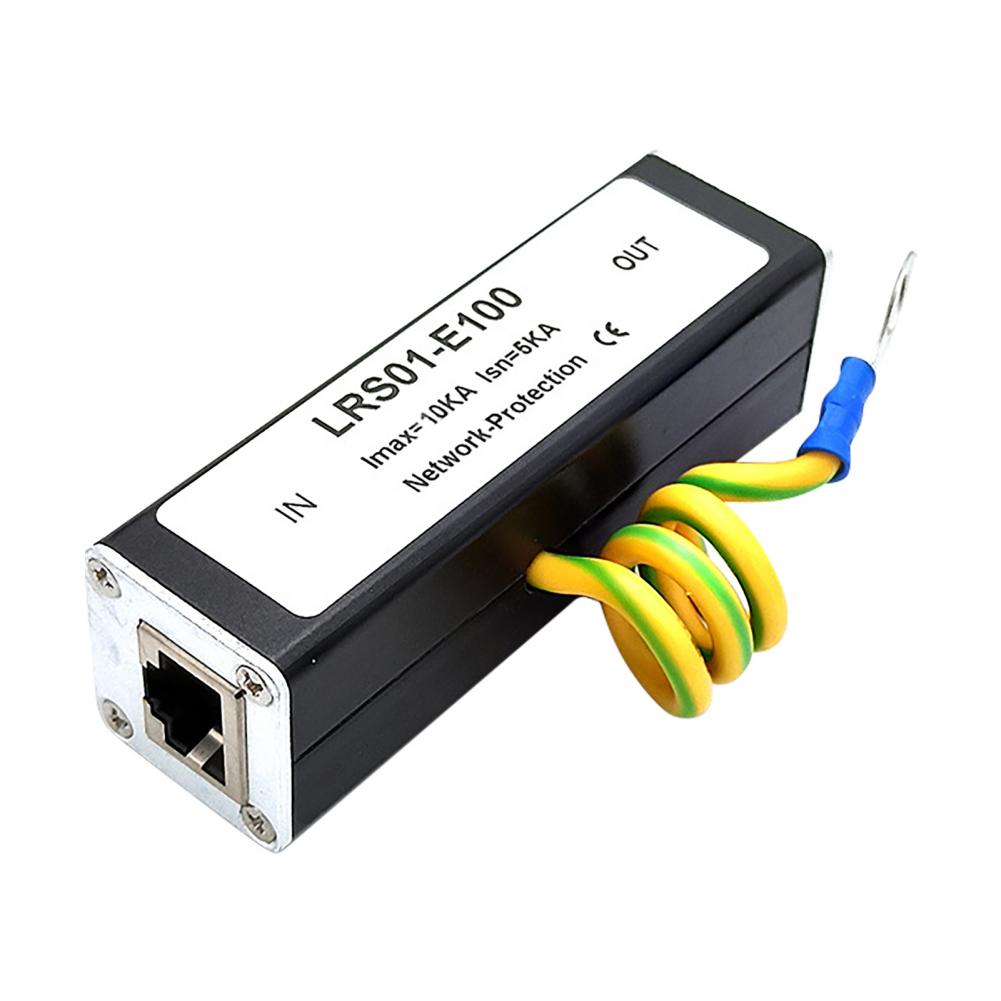

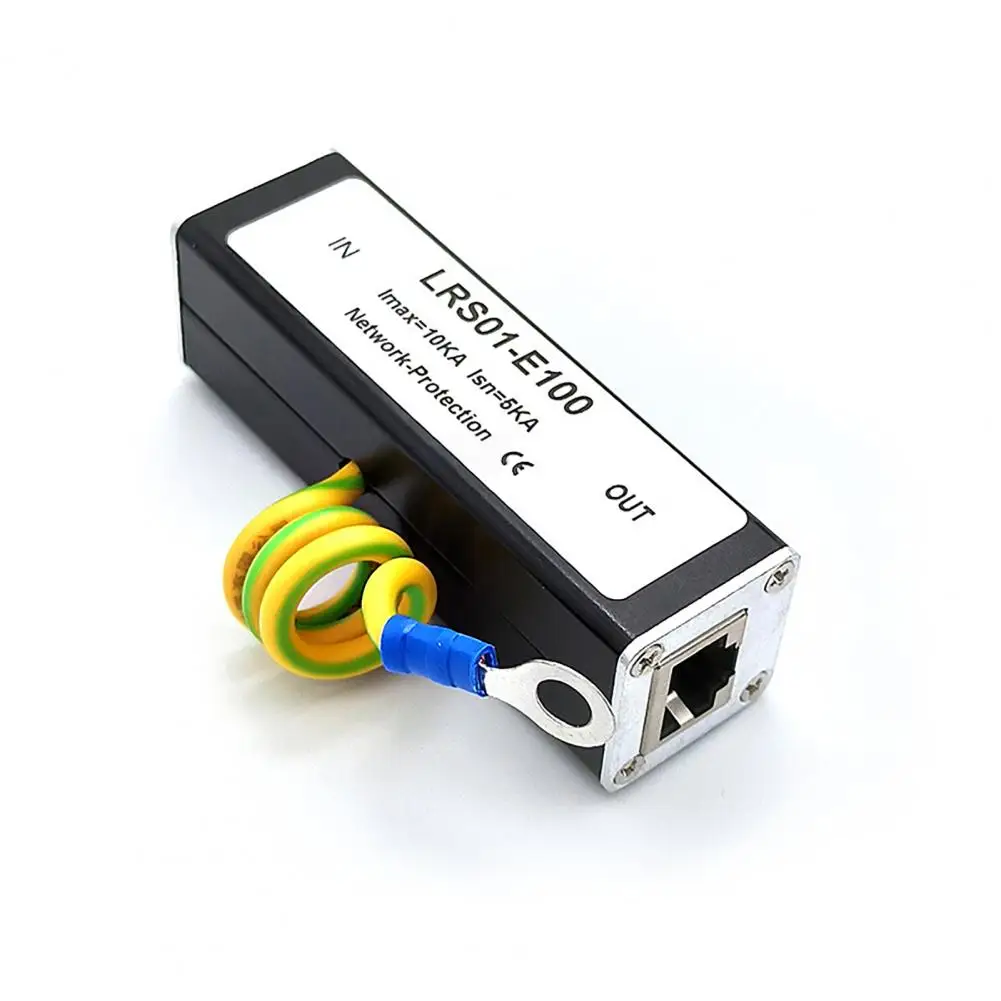

Surge Arrester Anti-interference Quick Response Compact Network RJ45 Safe Surge Protective Device for Monitoring Equipment
The surge arrester features quick response and anti-interference circuit, which has stable performance.
Featured with multiple circuit protection and low residual voltage, the surge arrester is safe to use.
Made of electronic components, the surge arrester is eco-friendly and reliable to use.

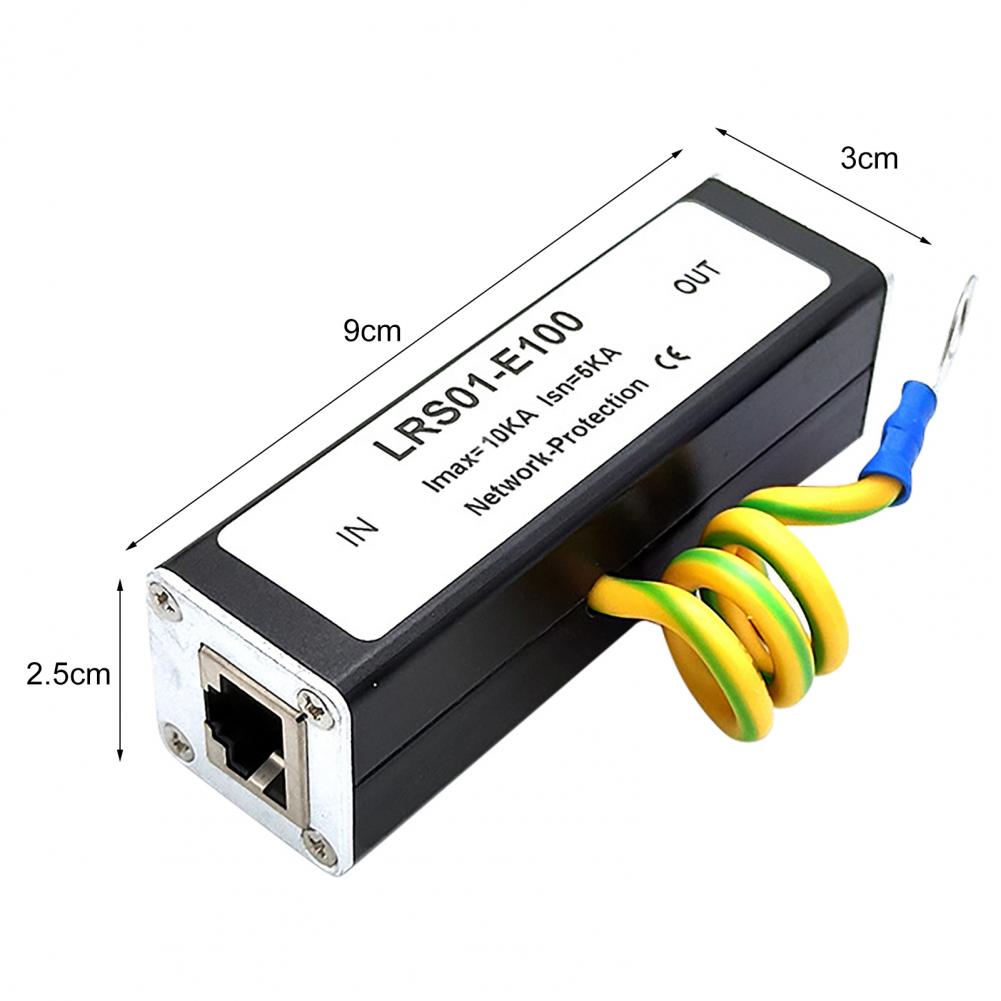

The length of the surge arrester is 9cm, width is 3cm and height is 2.5cm, so you can install it conveniently due to its compact size.
The surge arrester is suitable for over-voltage protection of related equipment that transmits video signals through coaxial cables.
Item Name: Surge Arrester
Material: Electronic Component

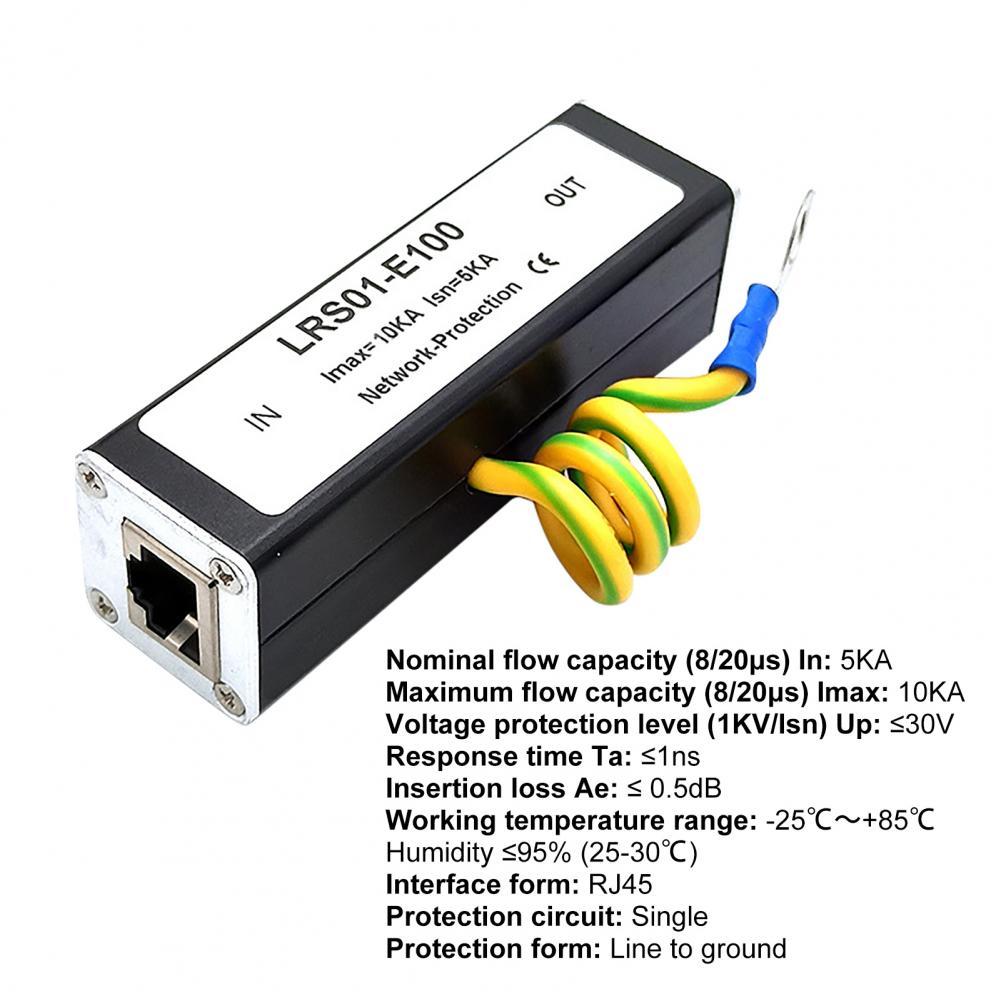

Nominal Flow Capacity (8/20μs) In: 5KA
Maximum Flow Capacity (8/20μs) Imax: 10KA
Voltage Protection Level (1KV/Isn) Up: ≤30V
Response Time: ≤1ns
Insertion Loss: ≤ 0.5dB
Working Temperature Range: -25-+85 Degrees Celsius
Humidity ≤95% (25-30 Degrees Celsius)
Interface Form: RJ45
Protection Circuit: Single
Protection Form: Line to Ground
Features: Safe, Quick Response, Protective
9cm x 3cm x 2.5cm/3.54" x 1.18" x 0.98" (Approx.)
Due to the light and the screen setting difference, the item's color may slightly differs from the pictures.
Please allow slight dimension difference due to the manual measurement.
1 x Surge Arrester
