STM32 development board designed for the STM32F407ZxT6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions.

aeProduct.getSubject()

Overview

Open407Z-C is an STM32 development board designed for the STM32F407ZxT6 microcontroller, consists of the mother board and the MCU core boardCore407Z.

The Open407Z-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F4 series microcontrollers.


What's on the mother board

aeProduct.getSubject()

  1. MCU core board connector: for easily connecting the MCU core board
  2. ULPI interface: for connecting high-speed USB peripheral (the STM32F407Z integrates USB HS controller without any PHY device)
  3. 16-bit FSMC + SPI interface: for connecting touch screen LCD
  4. 8-bit FSMC interface: easily connects to peripherals such as NandFlash, Ethernet, etc.
  5. SPI1 / SPI2 + AD / DA interface
    • for connecting SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3 module, etc.
    • for connecting AD/DA module as well, thanks to the SPI1 AD/DA alternative function
  6. SDIO interface: for connecting Micro SD module, features much faster access speed rather than SPI
  7. I2S2 / I2S3 / I2C1: for connecting I2S peripherals, such as Audio module
  8. USART2 interface: easily connects to RS232, RS485, USB TO 232, etc.
  9. CAN1 interface: for connecting CAN module
  10. CAN2 interface: for connecting CAN module
  11. I2C1 / I2C2 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), FRAM (FM24CLxx), etc.
  12. DCMI interface: for connecting camera module
  13. UART3 interface: easily connects to RS232, USB TO 232, etc.
  14. Ethernet interface: easily connects the MCU to ethernet network by using an additional ethernet module
  15. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  16. PS/2 interface: easily connects to PS/2 keyboard and/or mouse
  17. 16-bit FSMC interface: easily connects to peripherals such as NorFlash, SRAM, etc.
  18. 5V DC jack
  19. 5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
  20. MCU pins connector: all the I/O ports are accessible on expansion connectors for further expansion
  21. POWER JMP
    • 5VDC: powered from 5V DC jack
    • Core5V: powered from the MCU core board
  22. LEDs jumper
  23. User key / Wake-Up button jumper
  24. Joystick jumper
  25. PS/2 jumper
  26. LEDs: convenient for indicating I/O status and/or program running state
  27. User key: convenient for I/O input and/or interact with running code
  28. Wake-Up button: wake up the STM32 MCU from sleep mode, also used as regular user key
  29. Joystick: five positions

For jumpers 22-25:

  • short the jumper to connect to I/Os used in example code
  • open the jumper to connect to other custom pins via jumper wires

What's on the Core407Z

aeProduct.getSubject()

  1. STM32F407ZxT6 (STM32F407ZET6 by default): the high performance STM32 MCU which features:
    • Core: Cortex-M4 32-bit RISC
    • Feature: a full set of single-cycle DSP instructions
    • Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
    • Operating Voltage: 1.8V-3.6V
    • Package: LQFP144
    • Memories: 512kB/1024kB Flash, 192+4kB SRAM
    • MCU communication Interfaces:
      • 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C
      • 1 x FSMC, 1 x SDIO, 2 x CAN
      • 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
      • 1 x 10/100 Ethernet MAC
      • 1 x 8 to 14-bit parallel camera interface
    • AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
    • Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
  2. AMS1117-3.3 (on bottom side): 3.3V voltage regulator
  3. MIC2075 (on bottom side): onboard USB power management device
  4. Power supply switch, powered from 5Vin or USB connection
  5. Boot mode switch, for configuring BOOT0 pin
  6. Power indicator
  7. VBUS LED
  8. Reset button
  9. 8M crystal oscillator (on bottom side)
  10. 32.768K crystal (on bottom side), for internal RTC with calibration
  11. JTAG/SWD interface: for debugging/programming
  12. USB interface
    • as DEVICE, used for establishing USB communication between PC and the STM32 development board
    • as HOST, connecting to USB devices such as USB flash drive through a USB OTG cable
  13. MCU pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
  14. 5Vin pinheader, 5V power supply is required when using USB HOST/OTG
  15. USB HOST/OTG jumper
    • short the jumper when using USB HOST/OTG
    • open the jumper to disconnect from I/O port
  16. VBAT selection jumper
    • short the jumper to use system power supply
    • open the jumper to connect the VBAT to external power, such as battery
  17. VREF selection jumper
    • short the jumper to connect VREF+ to VCC
    • open the jumper to connect VREF+ to other custom pin via jumper wire

Photos

aeProduct.getSubject()

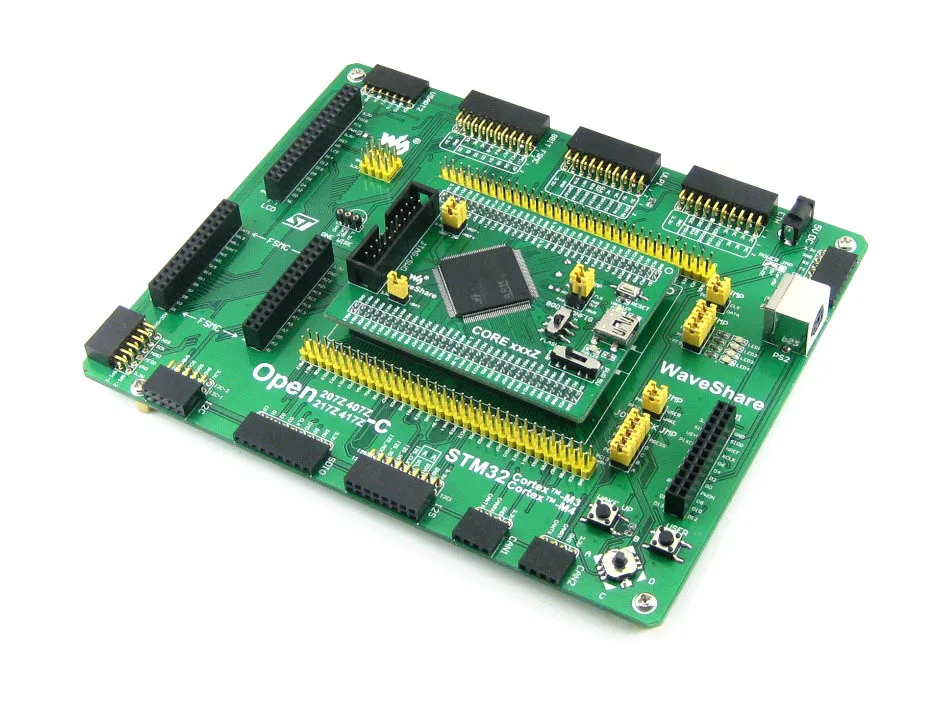

Open407Z-C development board aeProduct.getSubject()
Open407Z-C development board aeProduct.getSubject()

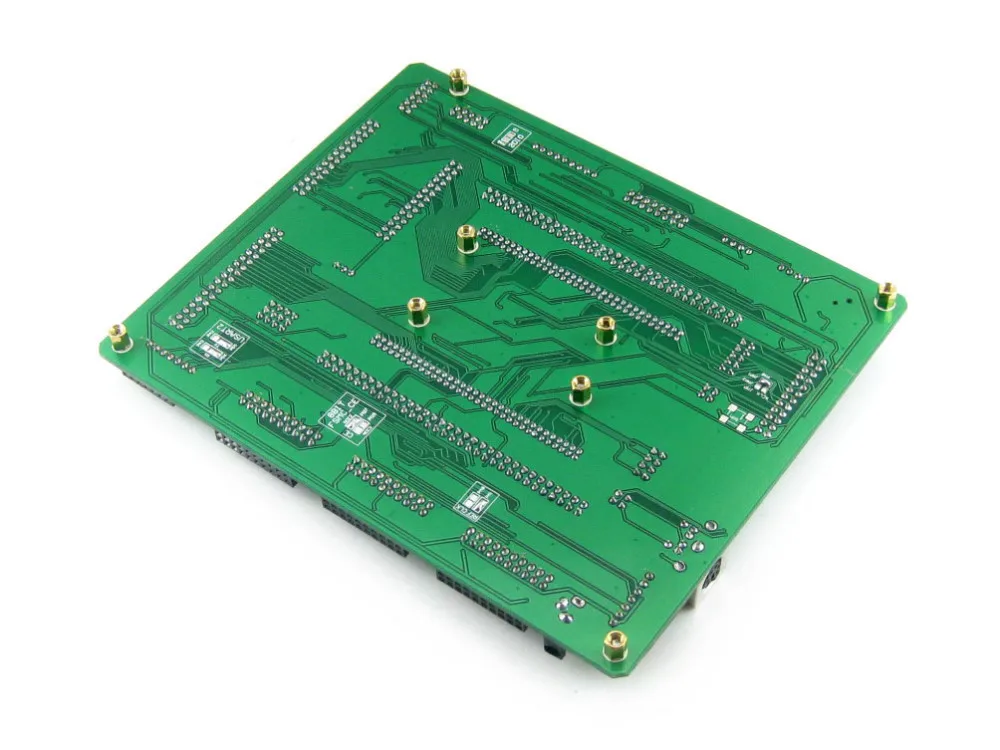

Open407Z-C development board back view aeProduct.getSubject()
Open407Z-C mother board aeProduct.getSubject()
MCU core board Core407Z aeProduct.getSubject()
MCU core board Core407Z aeProduct.getSubject()

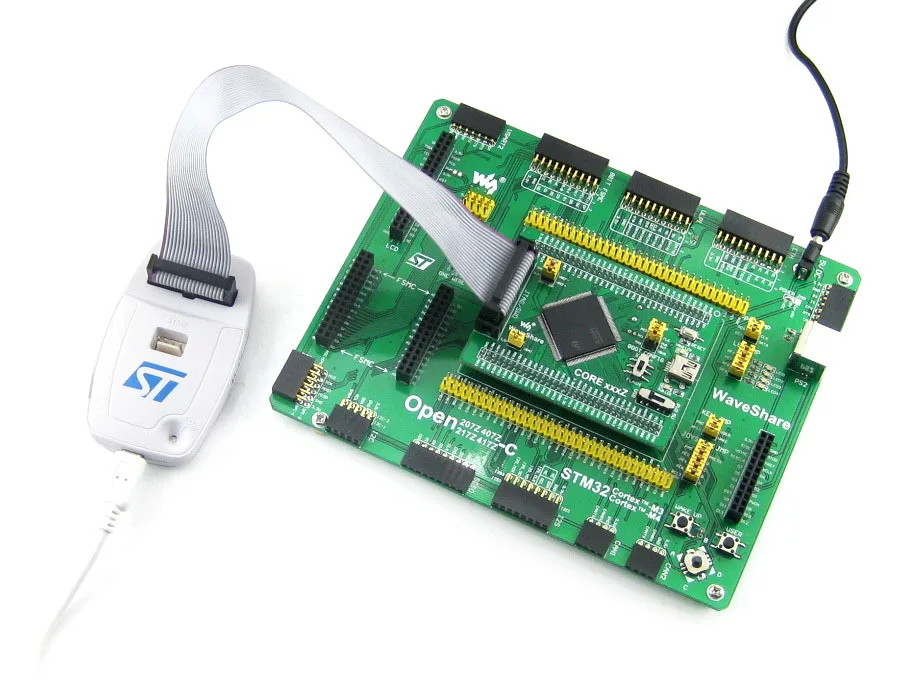

Connecting to a debugger
Connecting to various peripherals aeProduct.getSubject()
Open407Z-C μC/OS-II (1) aeProduct.getSubject()
Open407Z-C μC/OS-II (2) aeProduct.getSubject()
Open407Z-C μC/OS-II (3) aeProduct.getSubject()
Open407Z-C μC/OS-II (4) aeProduct.getSubject()
Connecting to USB device through OTG cable aeProduct.getSubject()
Connecting to USB3300 USB HS Board aeProduct.getSubject()
Connecting to UDA1380 Board aeProduct.getSubject()
Connecting to OV7670 Camera Board aeProduct.getSubject()
Connecting to RS232 Board aeProduct.getSubject()
Connecting to RS485 Board aeProduct.getSubject()
Connecting to USB UART Board aeProduct.getSubject()
Connecting to CAN Board aeProduct.getSubject()
Connecting to 8 Push Buttons aeProduct.getSubject()
Connecting to 5 IO Keypad aeProduct.getSubject()
Connecting to AD Keypad aeProduct.getSubject()
Test Board on the AD/DA port aeProduct.getSubject()
Connecting to FRAM Board aeProduct.getSubject()
Multi I2C peripheral Module connected to the I2C bus aeProduct.getSubject()
Connecting to DataFlash Board aeProduct.getSubject()
Connecting to VS1003B MP3 Board aeProduct.getSubject()
Connecting to NRF24L01 RF Board aeProduct.getSubject()
Connecting to Micro SD Storage Board aeProduct.getSubject()
Connecting to NandFlash Board aeProduct.getSubject()
Connecting to NorFlash Board aeProduct.getSubject()
Connecting to SRAM Board aeProduct.getSubject()
Connecting to Ethernet Board aeProduct.getSubject()
Connecting to any accessory board you need

Note:
The Open407Z-C supports programming via STM32 UART bootloader, a USB TO UART accessory board is also provided in the package.
The Open407Z-C does NOT integrate any debugging function, a debugger is required.


JTAG/SWD interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

Figure 1. JTAG Header Pinout
aeProduct.getSubject() Figure 2. SWD Header Pinout
aeProduct.getSubject()

Development Resources

The User Guide CD includes development resources listed as follow:

  • Related software (KEIL etc.)
  • Demo code (examples in C, μC/OS-II)
  • Schematic (PDF)
  • STM32 development documentations (Datasheet etc.)

Package Contains

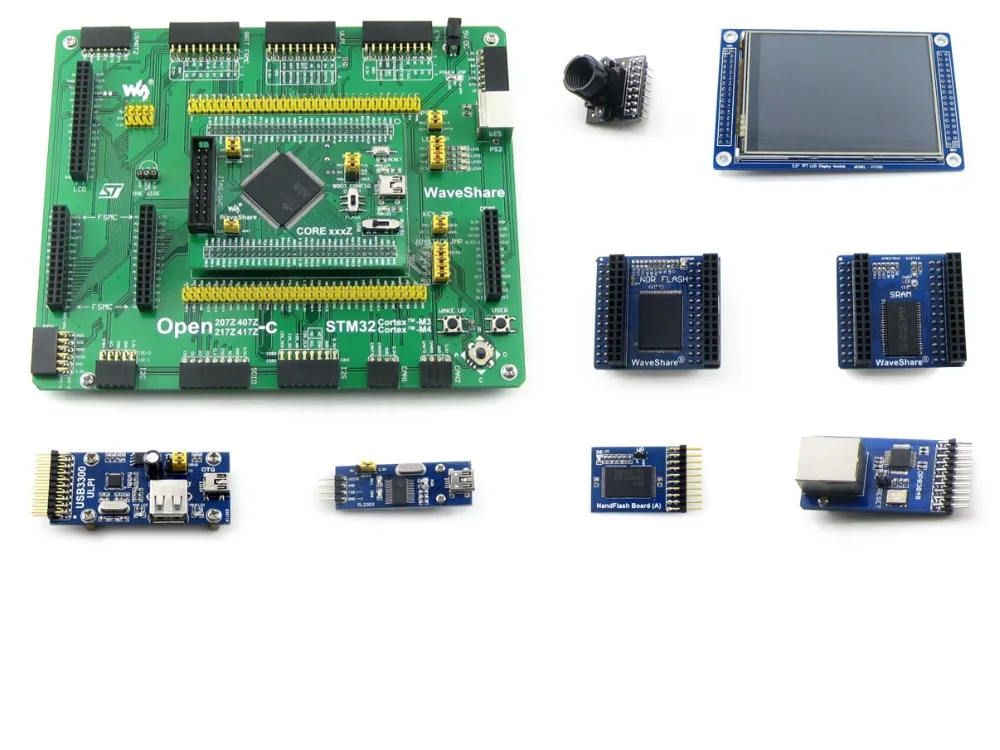

The "Standard Package" and "Accessory Boards Package" below are included.

Standard Package

  1. Open407Z-C development board x 1
  2. PL2303 USB UART Board (mini) x 1
  3. USB type A plug to mini-B plug cable x 1
  4. USB type A receptacle to mini-B plug cable x 1
  5. 4-pin wire x 2
  6. 2-pin wire x 2
  7. USB power cable x 1
  8. User Guide CD x 1
1 aeProduct.getSubject() 2 aeProduct.getSubject() 3 aeProduct.getSubject() 4 aeProduct.getSubject() 5 aeProduct.getSubject() 6 aeProduct.getSubject() 7 aeProduct.getSubject() 8 aeProduct.getSubject()

Accessory Boards Package

  1. 3.2inch 320x240 Touch LCD x 1
  2. USB3300 USB HS Board x 1
  3. DP83848 Ethernet Board x 1
  4. NandFlash Board (A) x 1
  5. NorFlash Board (A) x 1
  6. IS62WV12816BLL SRAM Board x 1
  7. OV7670 Camera Board (B) x 1
  8. Ethernet Cable x 1
1 aeProduct.getSubject() 2 aeProduct.getSubject() 3 aeProduct.getSubject() 4 aeProduct.getSubject() 5 aeProduct.getSubject() 6 aeProduct.getSubject() 7 aeProduct.getSubject() 8 aeProduct.getSubject()
