2pcs/Lot 433MHz RS232 Interface |3W 6KM Ultra Long Distance Si4432 Wireless RF Module SV6300 (Not Including Antenna)

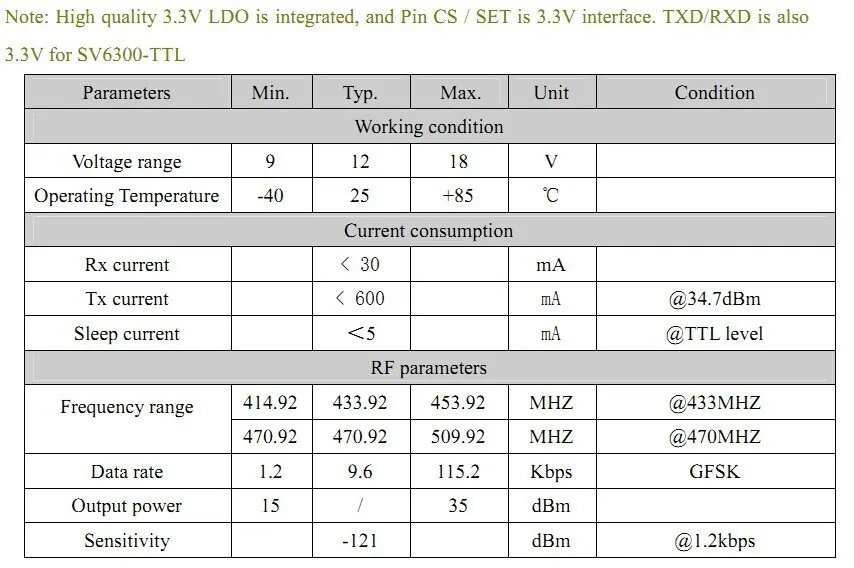

    Description: SV6300 is highly-integrated RF module, which adopts high performance Si4432 from Silicon Labs. It has 3 optional Interface (TTL, 232, 485). SV6300 has high sensitivity and 3W output power to achieve long RF range and reliable RF communication. SV6300 comes with many parameters which are configurable, such as:  frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device. The features of long distance,wide working voltage and simple parameters configuration make SV6300 wildly used in many fields.      Feature: Frequency:433/470 MHz    Industrial class  40 channels  4 bytes Net ID & 2 bytes Node ID  Series Data Rate:1200 ~ 115200 bps  Air Data Rate: 1200 ~ 115200 bps  GFSK modulation  RSSI    Parameters save automatically  Interface: TTL/RS232/RS485  Bi-directional & Half duplex    Sensitivity:-121 dBm    Max output power: 3W/+35 dBm Working voltage:9~18.0V  Working temperature:-40 ~ +85 °C    Weight:160 g       Application: Remote control telemetry                     Security system  Industrial data acquisition  Home automation Wireless data communication  Access system  Robot control  Wireless PC peripherals     Typical application         Block Diagram            Electrical Characteristics:       Mechanical dimension:     Pin definition:

Accessories

The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.



The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC. There are 3 types of USB Bridge, which are SU108-TTL, SU108-232, SU108 - 485. SU108 -TTL is for TTL Interface, SU108-232 is for 232 Interface, SU108 - 485 is for 485 Interface:

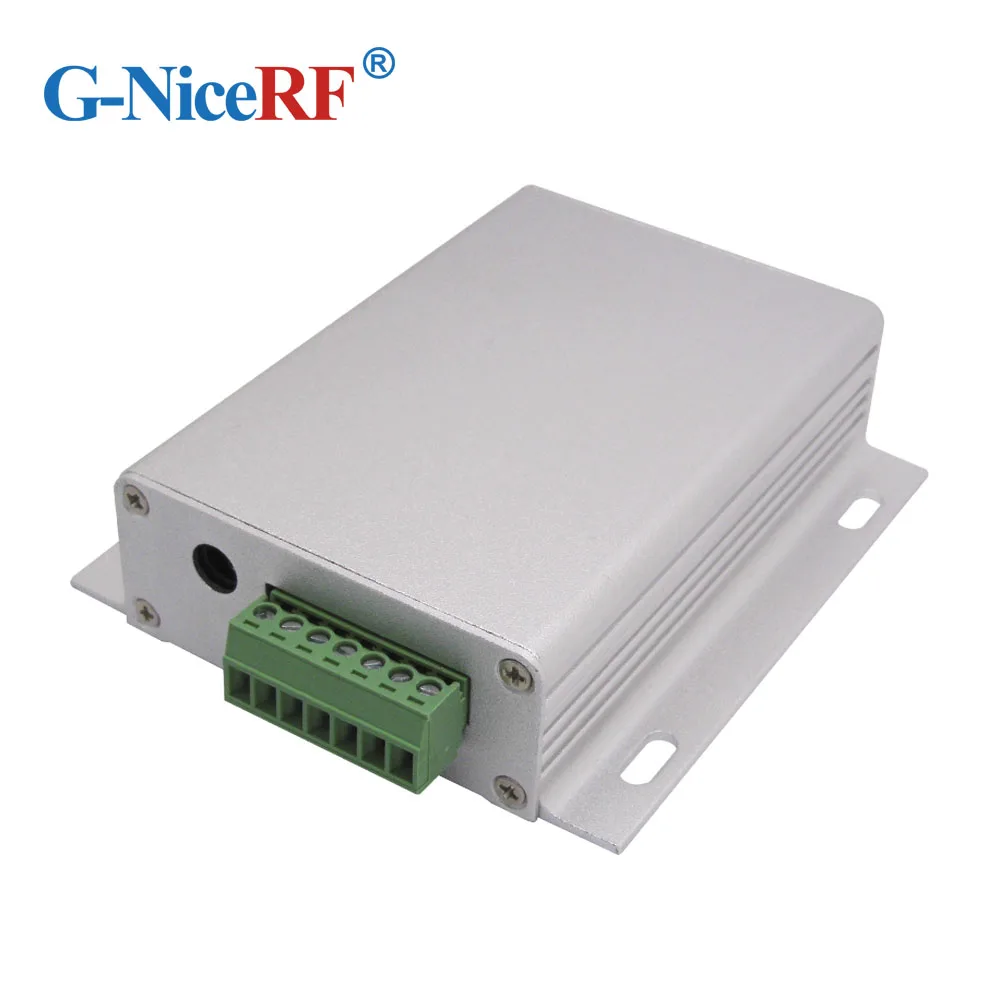

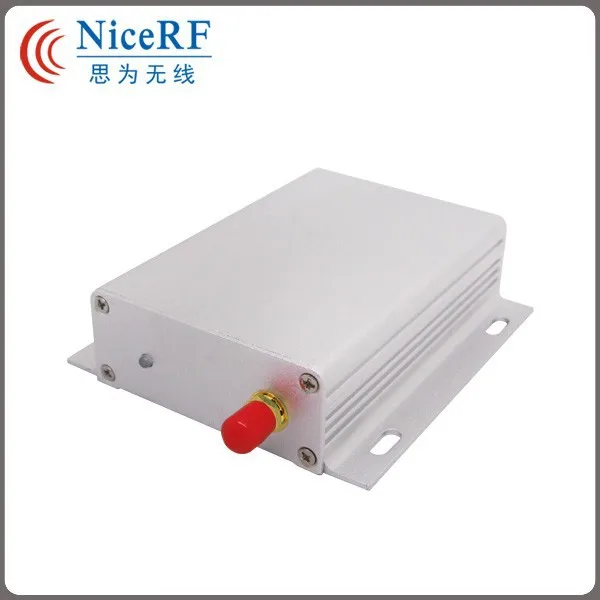

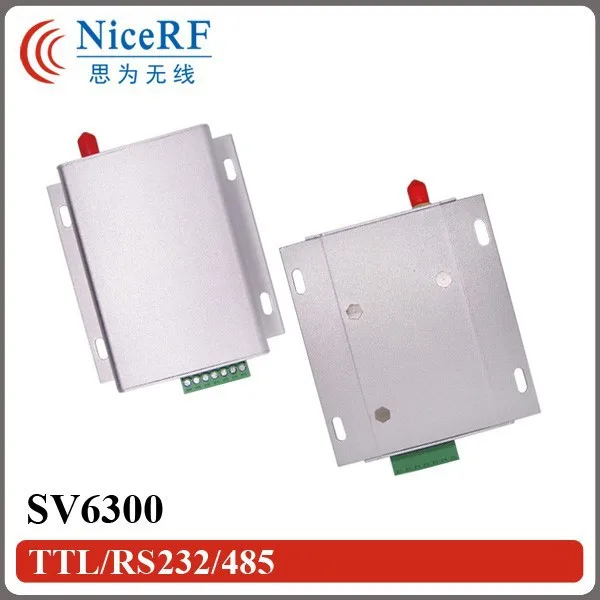

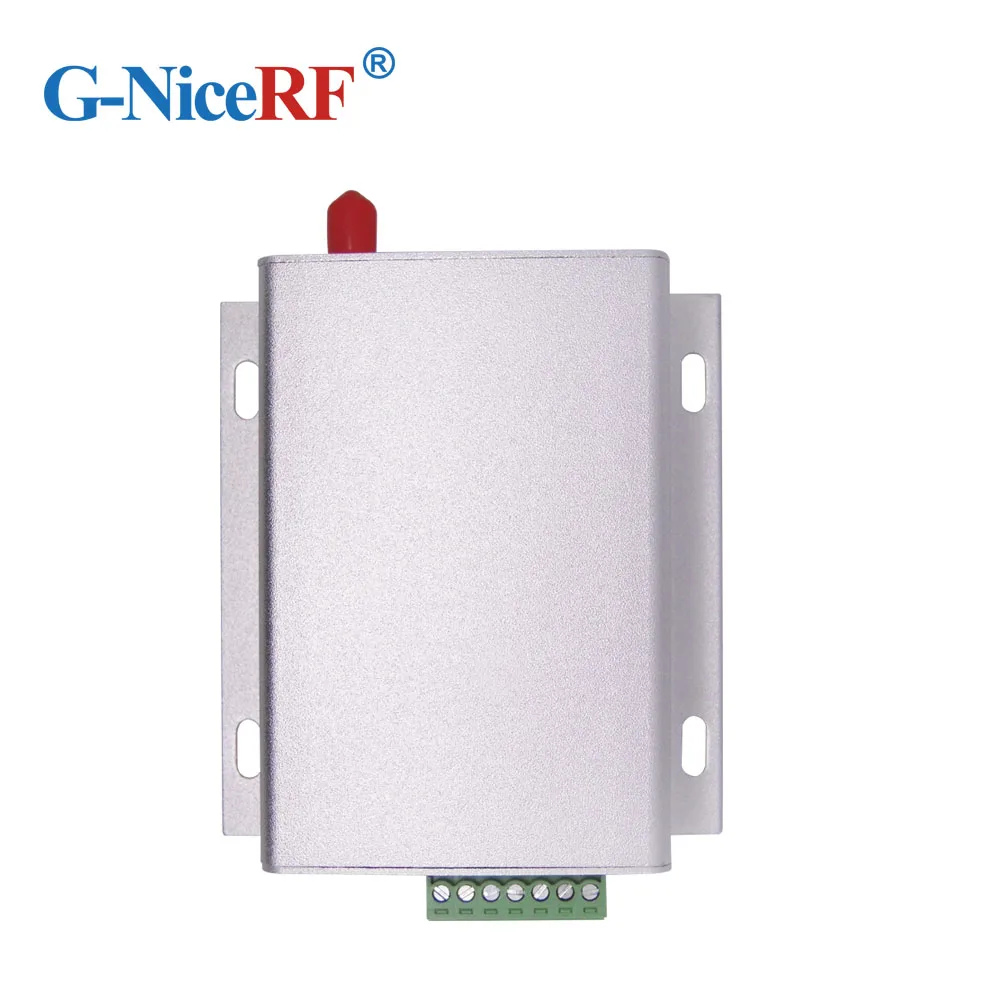

Product show:

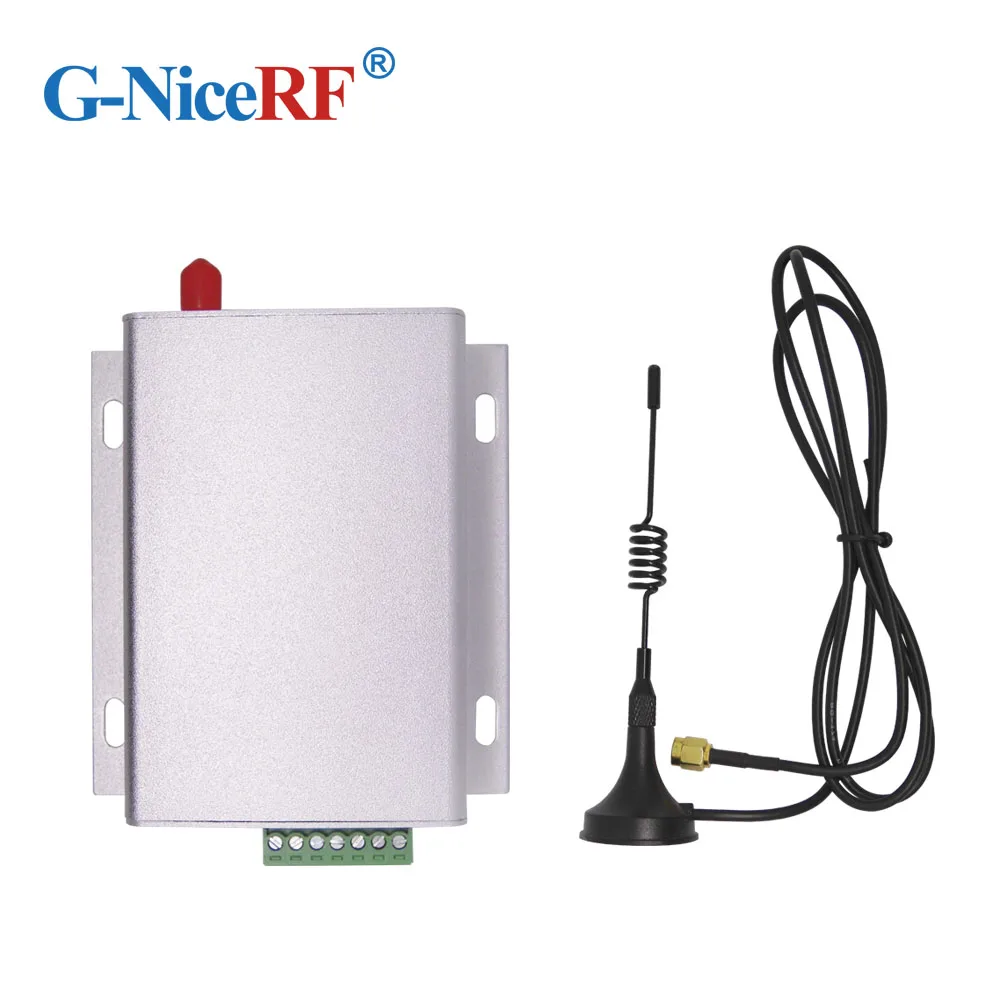

    Package include:  2pcs SV6300 module in 433MHz RS232 interface 2PCS 433MHZ Sucker antennas
