Free shipping GSM remote switch board ( GSM-AIR) / Sixteen relay output control Battery on for power off alarm | Безопасность

GSM-AIR GSM Remote Control Board ( GSM Relay Controller )

(New version 2016 GSM relay controller, more features including: Log data, fast program and reset button on board, Support customized SMS controller for ON/OFF controller and pulse control each seperate relay channels)

Same quality, better functions and more features!

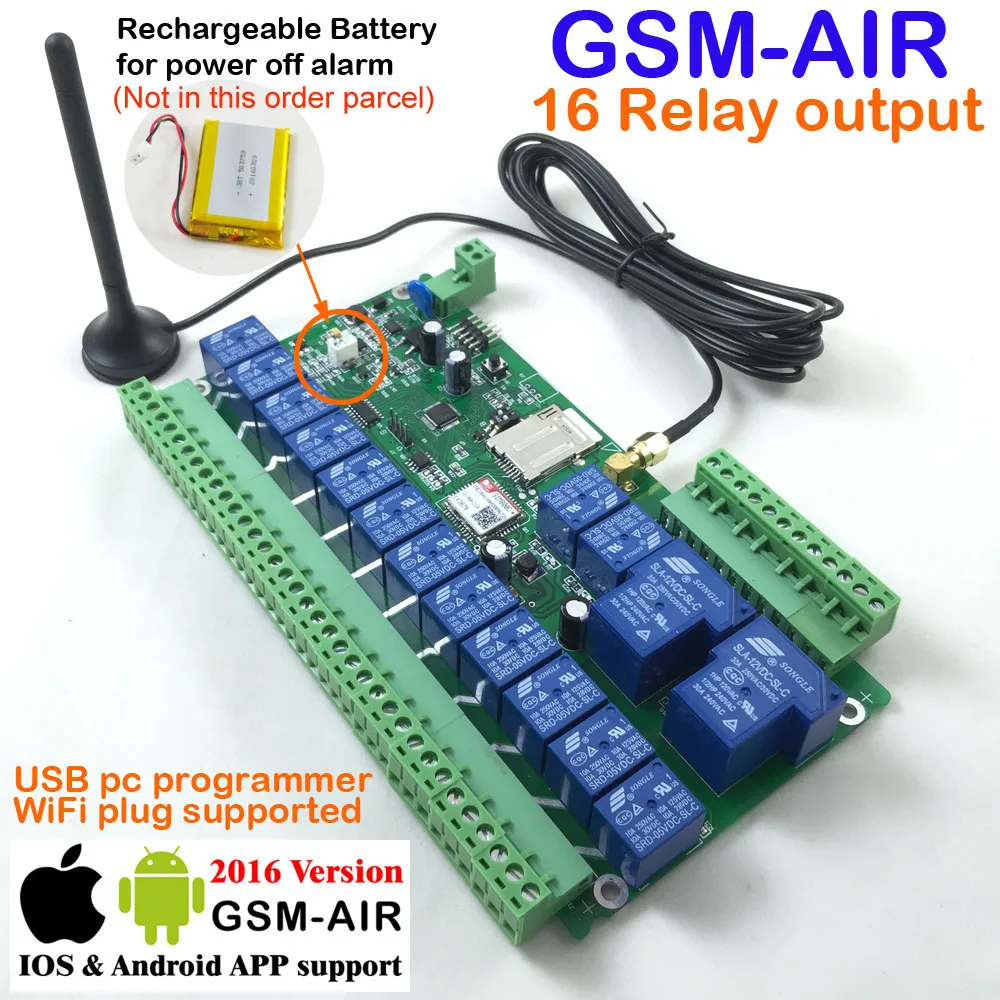

16 Relay on-board output and rechargeable battery on board for power off alarm

Maximum authorized phone numbers: 200

Package including:

One pcs GSM-AIR GSM controller box
One pcs GSM Magnet mount antenna (3 meter wire length)
One pcs USB program adapter

Must be noted: Battery is not in the normal order package,if you need the battery for power off alarm, please order from other link seperately.

Must be noted: Battery is not in the normal order package,if you need the battery for power off alarm, please order from other link seperately.

For android app,please go to google Play Store to search "GSM RELAY"

For Iphone app,please go to Apple App Store to search "GSM RELAY" , GSM-RELAY app can be use d to manage the waferstar GSM-RELAY, GSM-CTL,GSM-AIR and GSM-TOG several types GSM controllers.

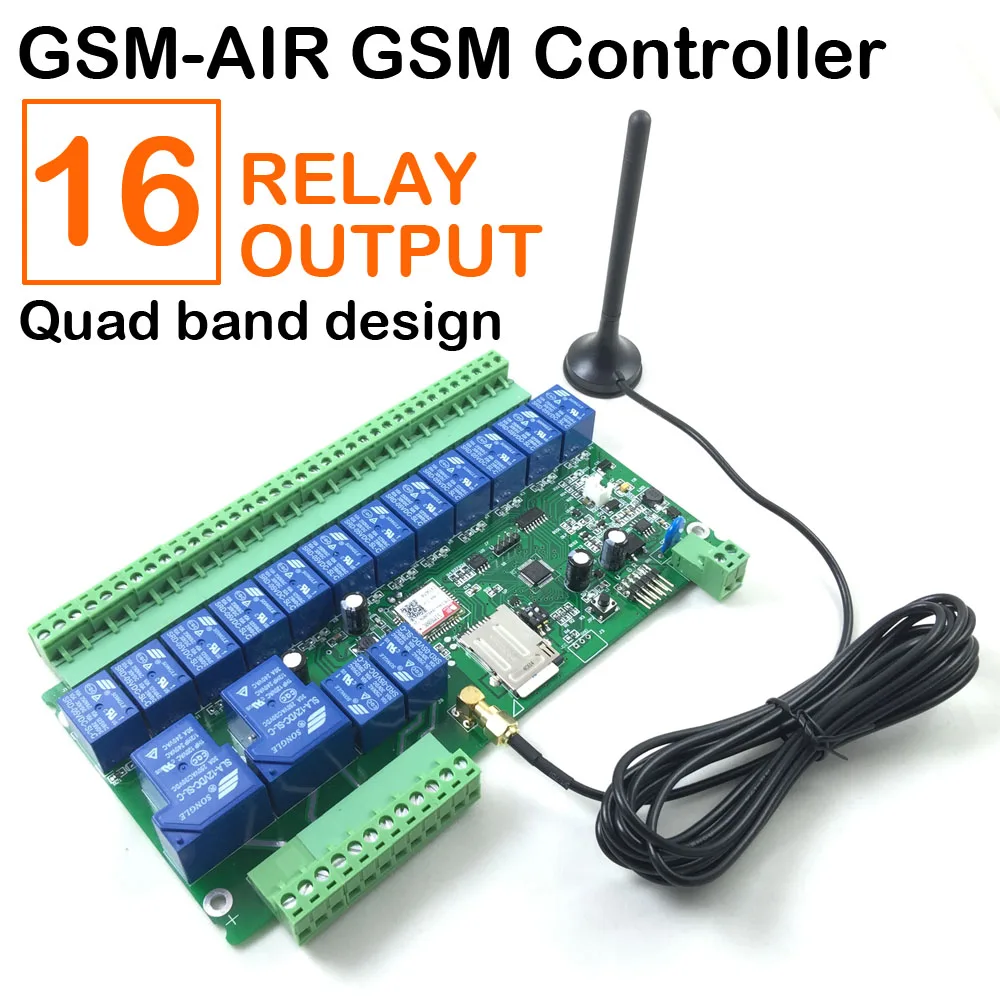

The GSM-AIR is a wireless gsm remote controller switch that connects to the GSM cell phone network.
It has sixteen independent relay switches, and the NO.1 Relay switch is activated by calling its cell phone number, it will reject the call without answering and switch on the device connected to it,then there are no call costs incurred when dialling the unit, it will recognise an authorised telephone number calling it and reject the call without answering.
It has other 15 independent relay switches which can be switched on or off by sending the GSM-AIR an sms text message.

Specifications:

• Real-time & interactive control
• 16 channels  250V 10A 50 Hz relay contacts
• Works  with GSM phones
• Operating temperature (-25 .. +60 °C)
• Relays operates almost every appliance
• Small standby power (< 10mA 12V)
• Relay memory after power failure
• Optional password to keep the system at safety operating mode.
• Remote Password change
• Two operating mode optional ( remote setting with GSM phones)
• One relay is woking with the phone calling, and others working with the SMS
• Commands can added to GSM-phone number for raeady made commands
• Working voltage is at DC12V.
• On board rechargeable battery for power off alarm

GSM-AIR app software on the mobile phone for android and iphone system

Standard accessory: USB Program adapter with PC Software

GSM Magnet Mount Antenna ( Specially designed for Water proof type GSM remote control box)

Search the "gsm relay" to download the app for easy control:

1. GSM-AIR Software for Android system mobile phone at google play store

2. GSM-AIR Softwafer for iphone system mobile phone at apple app store

-----------------------------------------------------------------------------------------------------------------

For this version GSM-AIR,also support the wifi plug

and wifi-plug is optional for order, with wifi-plug, then your gsm controller is also can be configured and remote control with wifi when you near the products
