7 Inch Color LCD Video Door Phone with 1 Camera + 2 Monitor

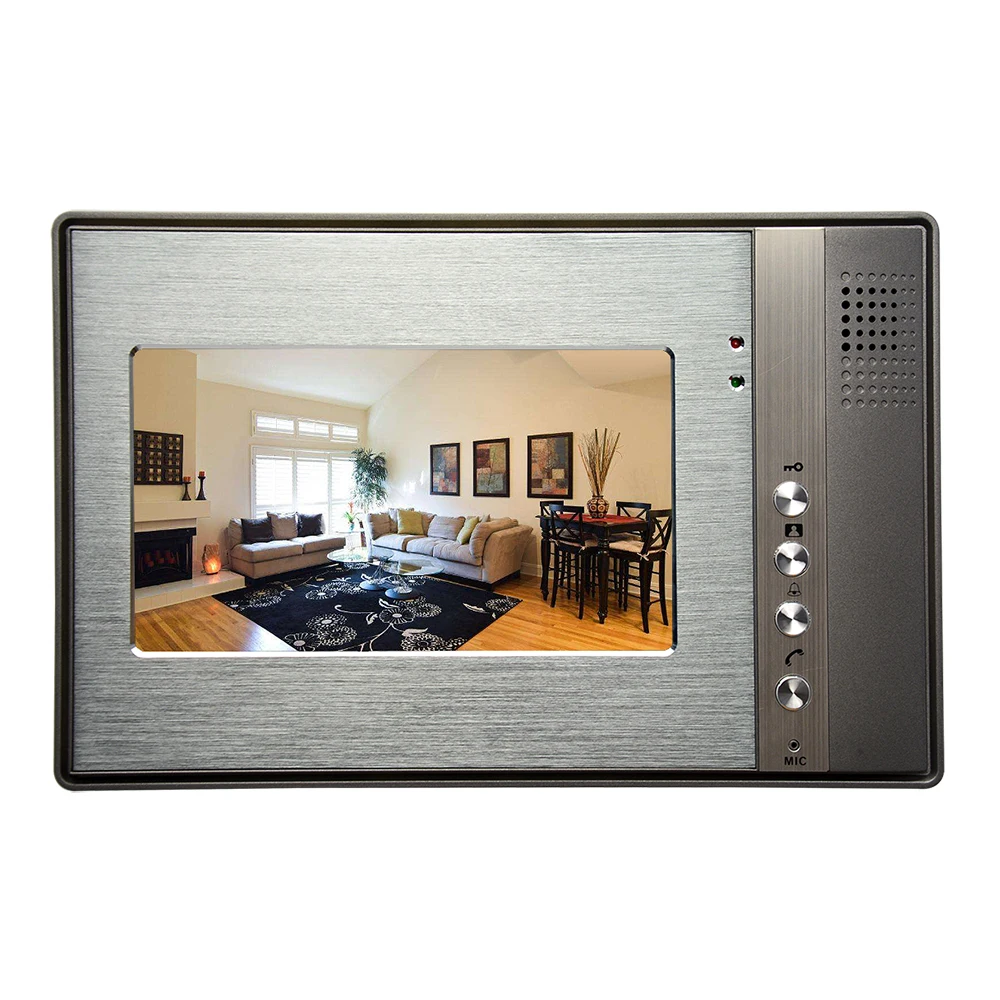

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.
With micro-processing technology, auto-remote control, excellent performance and high reliability
The TFT 7 inch digital color LCD for monitor
Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote & ID & Password controlling etc
Additional monitor available up to 6(optional) and 3 outdoor cameras at most
TFT color screen with low power consumption, no radiation and high definition
Brightness, chroma and volume adjustable
16-chord melody rings for option
Cabling: 4-core connection cable
Type: Wired Video Doorphone & LCD Wired Indoor Monitor
Wiring requirements: 30 meters: RVV4 x 0.5mm;50 meters: RVV4 x 0.75mm;100 meters: RVV4 x 1.0mm

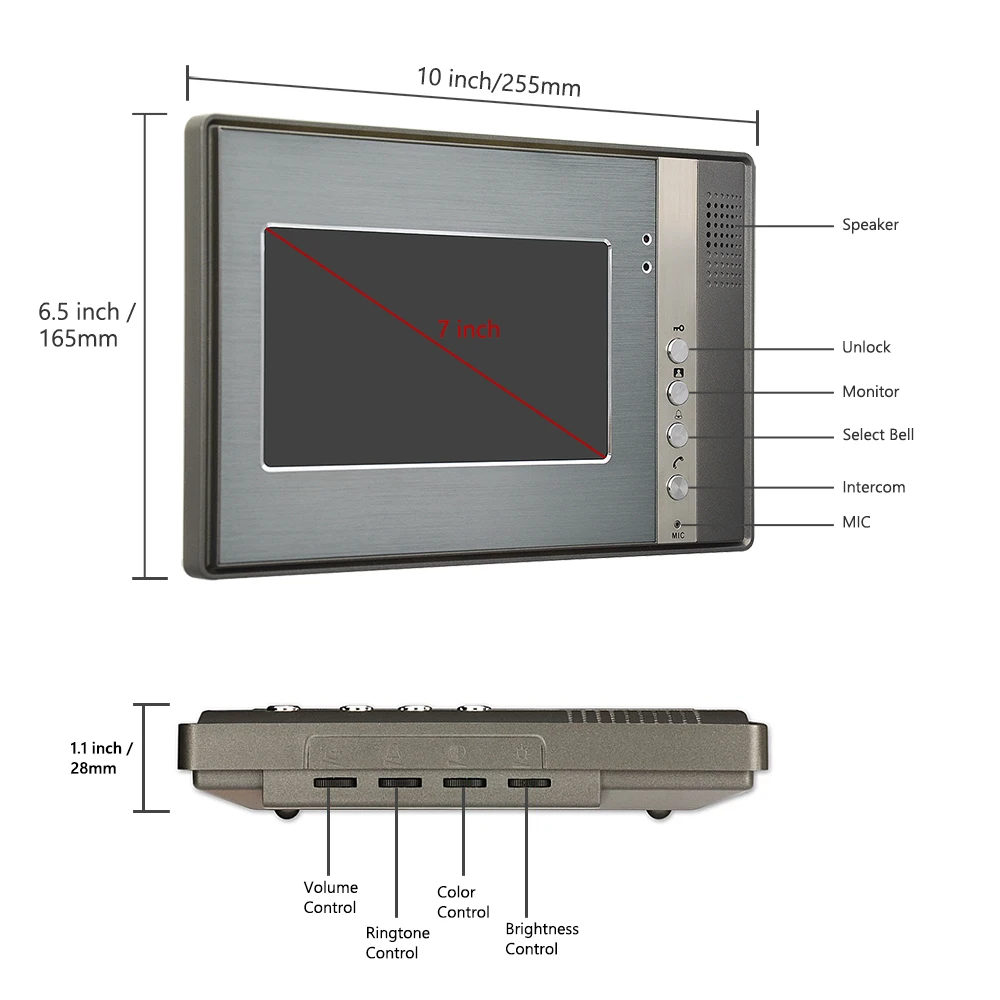

Monitor: 7-inch TFT-LCD 800 x480
Imaging Sensor: 1/3 CMOS
Illumination: 0 Lux
Working temperature: -15-55 degrees
Relative humidity: 10 % ~ 90%(RH)
Dissipation: stand-by <0.5W working <10W
Talk time delay: 60 seconds
Monitor time delay: 60 second
Power Source : Adapter input voltage: AC100-240V 50Hz-60Hz

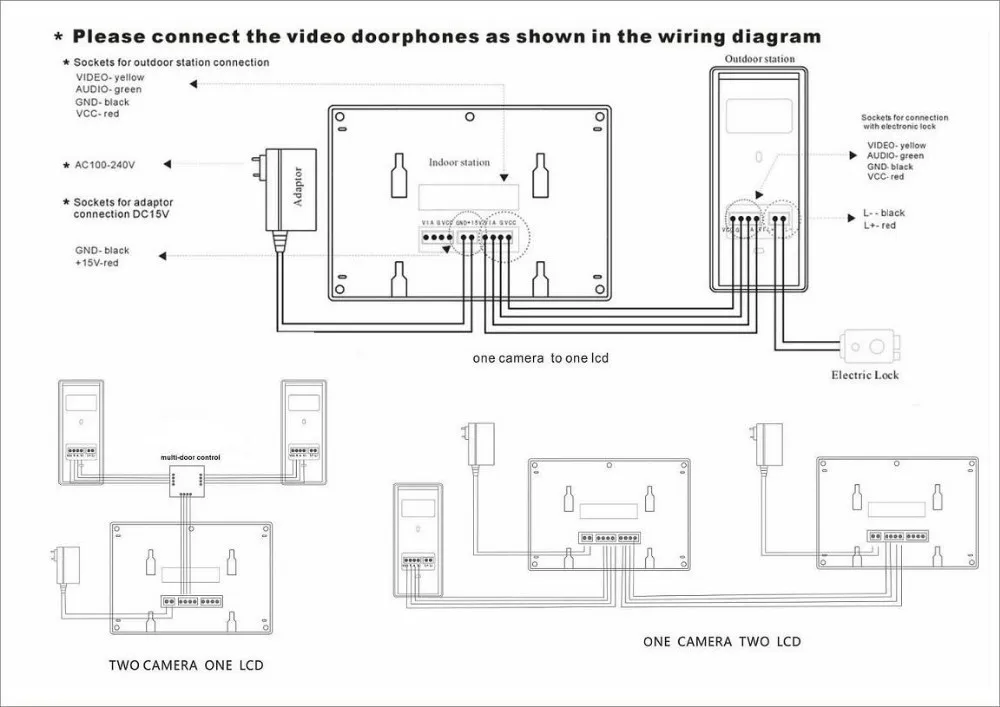

We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
Indoor to outdoor max distance
Indoor to indoor max distance
Outdoor to Electric lock max distance
This door phone system can be widely used in Villa, office, private house, and other place needs intercom. It is not only a intercom system, but also a home security system.
