8CH HD HDMI 1080P DVR AHD Security Camera System indoor720P IR Waterproof CCTV Outdoor DIY Home Video Surveillance Kits | Безопасность






8CH HD HDMI 1080P DVR AHD Security Camera System indoor720P IR Waterproof CCTV Camera
Outdoor DIY Home Video Surveillance Kits
What is included?
- 1 X 8CH AHD 1080N / 960P Hybrid Security Network DVR
- 1 X Power Supply for DVR
- 1 x Online CD software
- 1 X USB Mouse
- 1 X User’s Manual
- *no HDD Included!
- 4 X 1200TVL Dome Cameras
- 4 X Outdoor waterproof bullet camera
- 8 X Video Power 65ft BNC Cable
- 2 X 4-to-1 Splitter Cable
- 2 X Power supply For CCTV Cameras
AHD 1080N / 960P / 720P DVR System
8CH AHD 1080N/ 960P/720P DVR System Support: AHD / TVI /CVI /NVR / HVR 5 IN 1
What is AHD / CVI / TVI / NVR / HVR 5 in 1? AHD:Full HD Digital Video Recorder. DVR:Digital Video Recorder. TVI :Full HD Digital Video Recorder. Supports TVI format cameras CVI :Full HD Full HD Digital Video Recorder. Supports CVI format cameras NVR:Full HD Network Video Recorder. HVR:High Definition / Hybrid Digital Video Recorder. This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR. Save the huge cost when you want to upgrade the dvr system to be NVR!!! 720P or 1080P IP Cameras supported(ONVIF Protocal)to get high definition image Support Multi-language- Support Multi-language menus option up to 28 kinds of Language..
English,Spanish,German,French,Russian,Japanese....etc.











AHD 1080N 960P DVR Specifications
System | Operating system | Embedded LINUX operating system |
Display | Operation interface | 16 bit real color GUI interface support mouse operation |
Display | 1/4/8CH | |
Video | Video standard | PAL(625 lines,50fps);NTSC(525lines,60fps) |
Compression | H.264(High Profile) | |
Display quality | Monitor:960P;VGA:1280*1024;HDMI(1920*1080P) | |
Playback quality | 1080N/ 960P/720P/960H/D1 | |
Record Resolution& Frame | PAL: 960P/720P/960H/ D1@100fps | |
NTSC:960P/720P/960H/D1@120fps | ||
Playback Frame | PAL: 960P/720P/960H/ D1@100fps | |
NTSC:960P/720P/960H/D1@120fps | ||
AHD mode input | 8*1080N(analog) / 8*960p(analog) / 8*720p(analog)/4*960p(analog+4*720p(digital) | |
Motion detection | 192(16*12)detection area;can set multi-level of flexibility | |
Audio | Audio compression | G.711A |
Record and playback | Record mode | Manual,alarm,motion detection,timing |
Local playback | 8CH 1080N/ 960P/720P/960H/D1 | |
Video search | Time,date,event,channel search | |
Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; |
Audio:691.2M/day*channel | ||
Video storage | Local HDD ,Network | |
Back up mode | Network backup,USB portable HDD,USB DVD-RW | |
Network | Protocol | DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL etc |
IE Browser | Windows IE ,Firefox ,Chrome ,Safari etc. | |
CMS | Free use | |
Mobile Phone | Android\ iPhone\ iPad\ Blackberry\ Windows Mobile | |

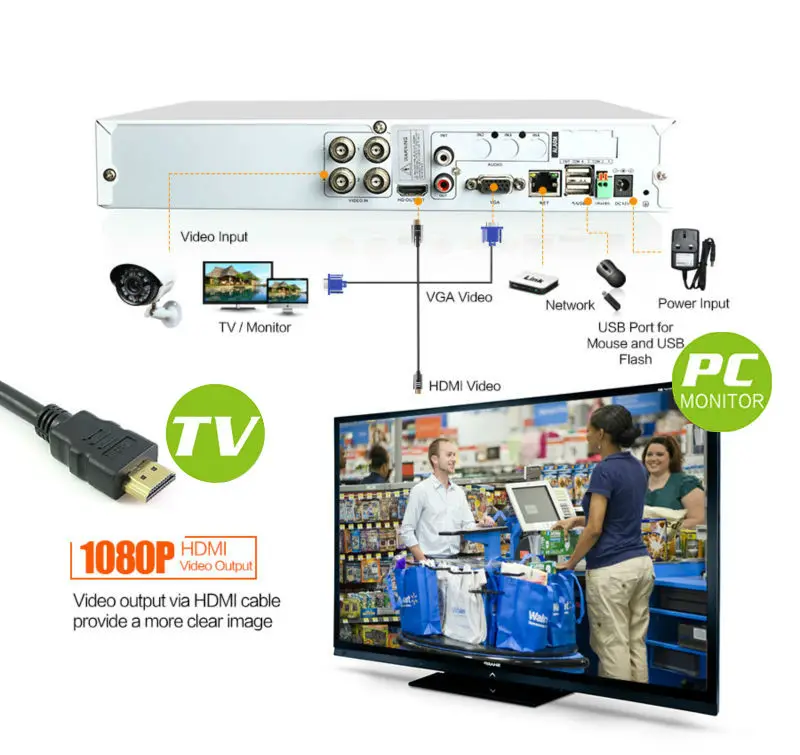

Interface | Video input | 8CH BNC |
Video output | 1CH VGA,1CH HDMI 1080p | |
Audio input | 4CH RCA | |
Audio output | 1CH RCA | |
Network port | RJ45 10M/100M Ethernet port | |
PTZ control | 1 RS485;support multi kinds of PTZ Protocol | |
USB port | 2*USB2.0 | |
HDD port | 1 SATA(each max support 4TB) | |
other | Language | English,Finnish,French,German,Greek,Italian,Japanese ,Polish,Portuguese,Arabic,Farsi,Russian,Spanish,Thai,Turkish, etc |
Mouse | yes | |
Remote controller | yes | |
Power | DC12V/2A |
Camera Specifications
Sensor | 1/3 SONY CCD 1.3 Megapixel 720P sensor | |
Signal | PAL | NTSC |
Pixels | 720P | 720P |
Line | Sony 1200TVL | |
Illumination | 0Lux / IR ON | |
Lens | 3.6mm/6mm(optional) | |
IR LED | 36pcs Φ8mm High Power IR LED | |
IR Distance | 25Meter | |
Vertical | 50Hz | 60Hz |
Horizontal | 15.625KHz | 15.734KHz |
Clock | 28.375MHz | 28.636MHz |
Scanning | 2:1 Interlace | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100,000s | 1/60-1/100,000s |
W.B | Auto Tracking | |
B.L.C | ON | |
A.G.C | ON | |
Gamma | 0.45 | |
Video Output | 1Vp-p, 75Ω | |
IP Rating | IP67 | |
Bracket | waterproof Especial Bracket | |
Power | DC12V | |
Dimension | 14*14*12cm | |
Volume Weight | 0.4kg |
