Material: acetate cloth
Adhesive: acrylic adhesive
Product specification: 1080MM*30M
Inner diameter of paper core (mm): 76.36
Insulation resistance (>1000000)
Substrate thickness (mm): 0.175
Adhesive force (N/10mm): 4
Peel strength (N/M): 300
Tensile strength (N/10mm): 600
Elongation (%): 15
Breakdown voltage (KV): 1.9
Flame retardancy (grade): 94V-0
Solvent resistance: excellent
Electrical corrosion coefficient: 1
Thickness (mm): 0.2mm
High temperature (DEG C: 130
Substrate: acetate cloth
Technical specification: equivalent to 3M adhesive:
Silicone resin origin: United States, Japan, France, acrylic resin origin: Taiwan
- - - - - - - - - - - - - - - - - - - - --

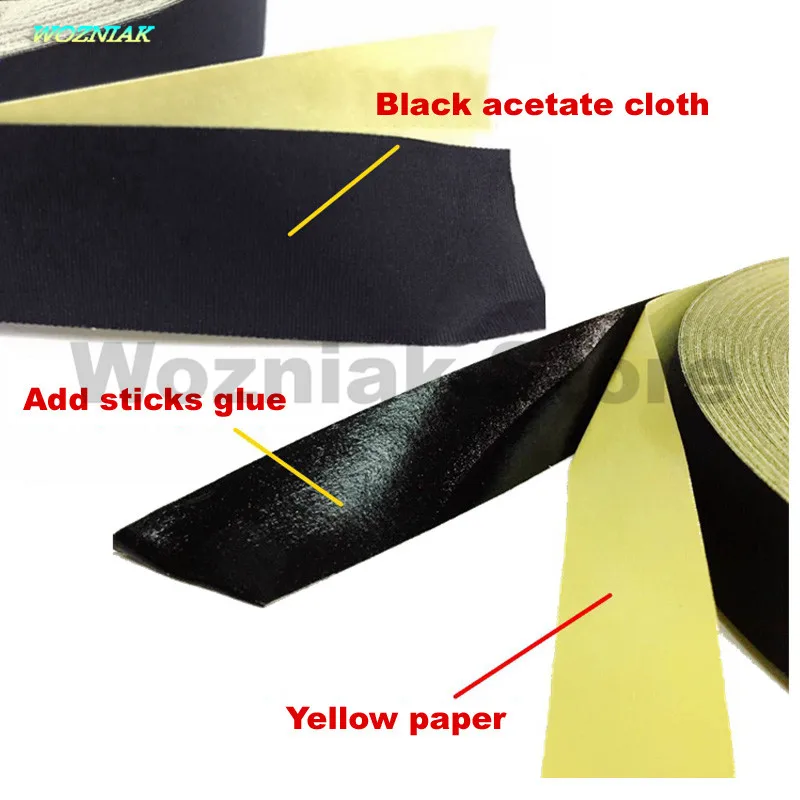

The prepared acrylic is evenly spread on the treated acetate cloth
Surface, and then into the drying room, remove volatile solvents and 150 degrees of high temperature reverse
A stable, sticky polymer material should be formed. This material is non-toxic and free of charge
The use of the body is safe, and it will not cause pollution to the environment when used
Features: high quality acetate fiber cloth is used as base material, which has high temperature resistance,
It has the characteristics of solvent resistance, anti-aging and so on. It has the characteristics of stable and reliable performance,
Because acid cloth substrate moisture permeability ability, good elasticity, easy to wash and dry, not static and hair ball, and aging resistance, up to 15 years. Acetate cloth tape to acetate cloth substrate processed with high temperature resistance, aging resistance, soft paste, from the shape of good, easy cutting, easy unwinding, acid and alkali, anti mildew properties, insulation performance is better than general glass fiber cloth and glass cloth, widely used in TV, transformer, air conditioning, computer manufacturing.
1 、 used for motor coil outer package, transformer, kinescope factory, etc.
2. Used for inter layer insulation and strapping of transformers (especially high frequency converters, microwave ovens, transformers), fixing of parts in oven, winding and fixing of ceramic heater and quartz tube, etc..
Product characteristics: the insulation performance is better than glass cloth and general glass fiber cloth, and the adhesive effectively absorbs resin and insulating paint, and the temperature is 130 DEG C, -180 DEG C.
Application: it is used for the outer packing of motor coil. Special marking can be printed on the surface.
