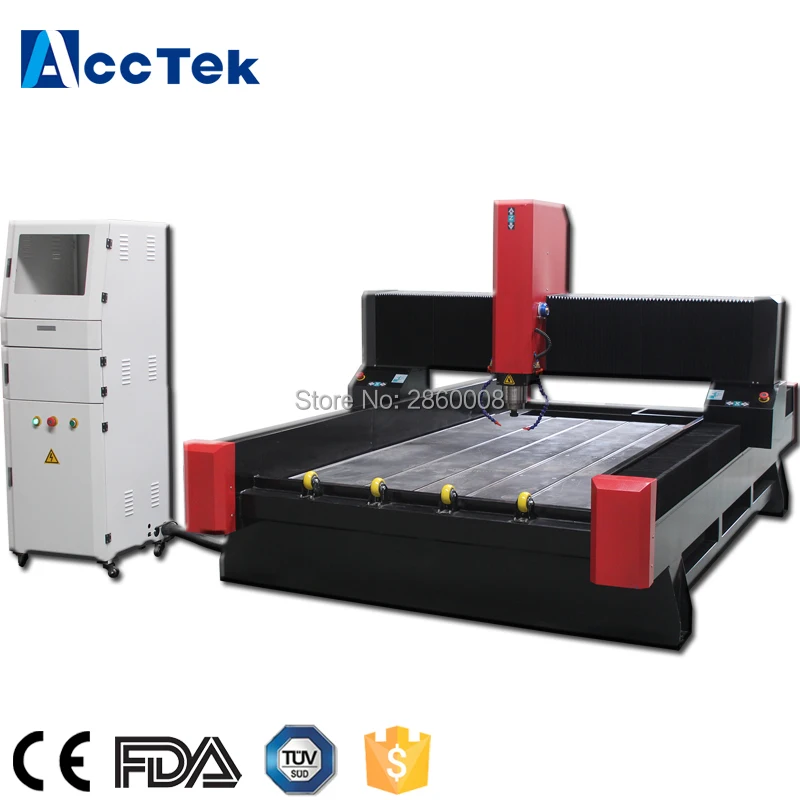

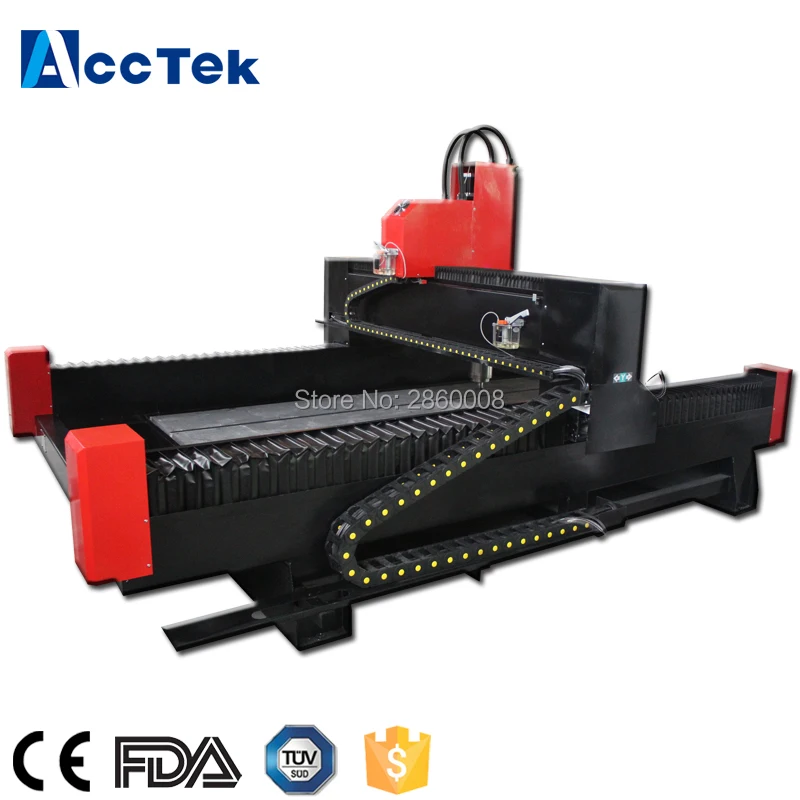

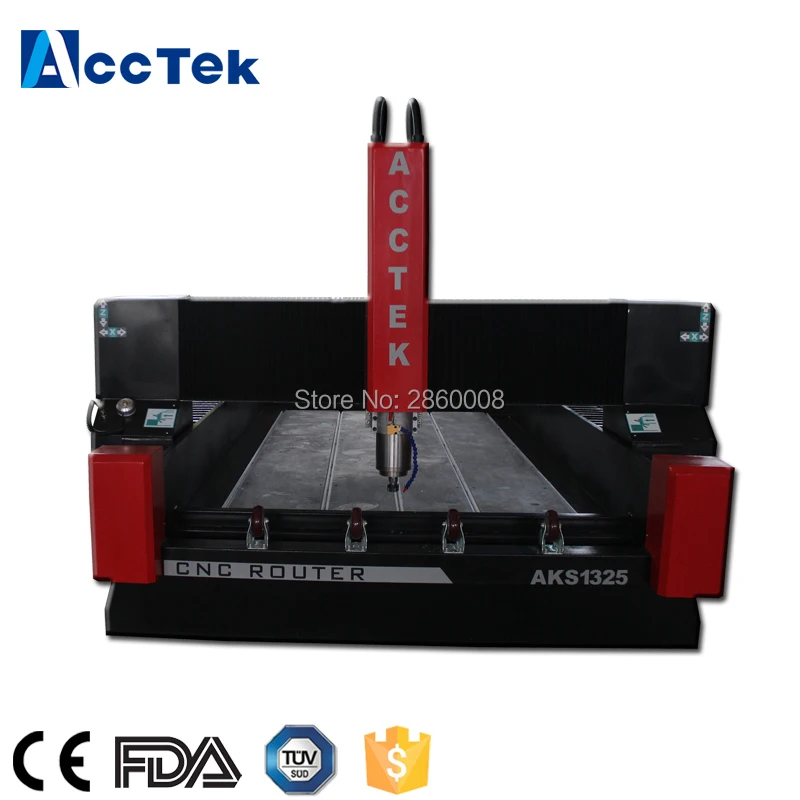

Cheap 1325 (7090 9015) marble stone cnc router cutting machine |

Before you place order, contact our sales for gifts please.

Name: Beck Guo

Email: export at acctekcnc.com

Skype: acctek.beck

Mob, whatsapp: +86-15098848753

   Cheap 1325 (7090 9015) marble stone cnc router cnc stone cutting machine

Features of marble stone cnc router cnc stone cutting machine

1).Double motors and drivers of Y axis ensure steady movement.

2).Rack gear transmission ensures fast speed and high accuracy.

3).Imported square rails ensures high accuracy and heavy workload.

4).Humanized design of T-slot table and clamps, can clamp the work piece, the operation is convenient.

5).Intelligent protection of working table can avoid damage resulted from the wrong operation.

6).Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.

7).Automatic lubrication system fulfills the periodic lubrication maintenance just one single touch.



Parameter of AKS1325 marble stone cnc router cnc stone cutting machine

NO.	Description	Parameter
1	X,Y,Z Working Area	1300X2500X350mm
2	X,Y,Z Traveling Positioning Accuracy	±0.02/300mm
3	X,Y,Z repositioning Positioning Accuracy	±0.03mm
4	Frame	Welded Steel Structure
5	X-Z Structure	Ball Screw and rack pinion
6	Max. Power consumption (Without spindle)	5.5Kw
7	Max. Rapid Travel speed	16000mm/min
8	Max. Working Speed	8000mm/min
9	Spindle Power Motor	5.5Kw water cooling
10	Spindle Speed	0-24000RPM
11	Drive System	Stepper system (Option: servo system)
12	Working Voltage	AC220V/ 50/60Hz (Option: 380V)
13	Command Language	G code
14	Operating System	Mach3 System (Option: DSP Software))
15	X-Y Resolution	<0.02mm
16	Software compatability	Artcam Software, Type3 Software (Option: Wentai Software)
17	Running Environment	Temperature: 0-45 degree Relative humidity: 30%75%





Applicable Materials and industries:
Suitable for engraving and lettering on natural granite, marble, stone, bluestone, crystal stone, micro-crystal stone, all kinds of artificial stone, glass, murals, monument, tombstone, decorative baseboard, etc.
Suitable for carving the epitaph, stone, decoration, kitchen, furniture and other industries.

Samples of AKS1325 marble stone cnc router cnc stone cutting machine



Package:  1. we use the water proofing membrane to cover the machine and put the Foam pad on the each side and corner. 2. put the plywood cover the machine and use the stainles stell bar to fix the plywood packing. 3. the bottom and above the packing  ,we use the square steel tube to strong the plywood.

Warranty:

1.1.5 years warranty for cnc router machine ,half year warranty for spindle. Free offer you replacement or maintainance if there is a failure in warranty period .

2. Professional technical person provide 24-hour service online by MSN, Skype, Yahoo, Gmail and so on.

3. We can also go to your country and service for you.



Please feel free to contact me :

Beck Guo

Email: export at acctekcnc.com

Skype: acctek.beck

Mob, whatsapp: +86-15098848753
