ELP 1080P 2MP CMOS Night Vision high speed IR Camera with 100 degree no distortion lens Mini industrial Webcam USB | Безопасность

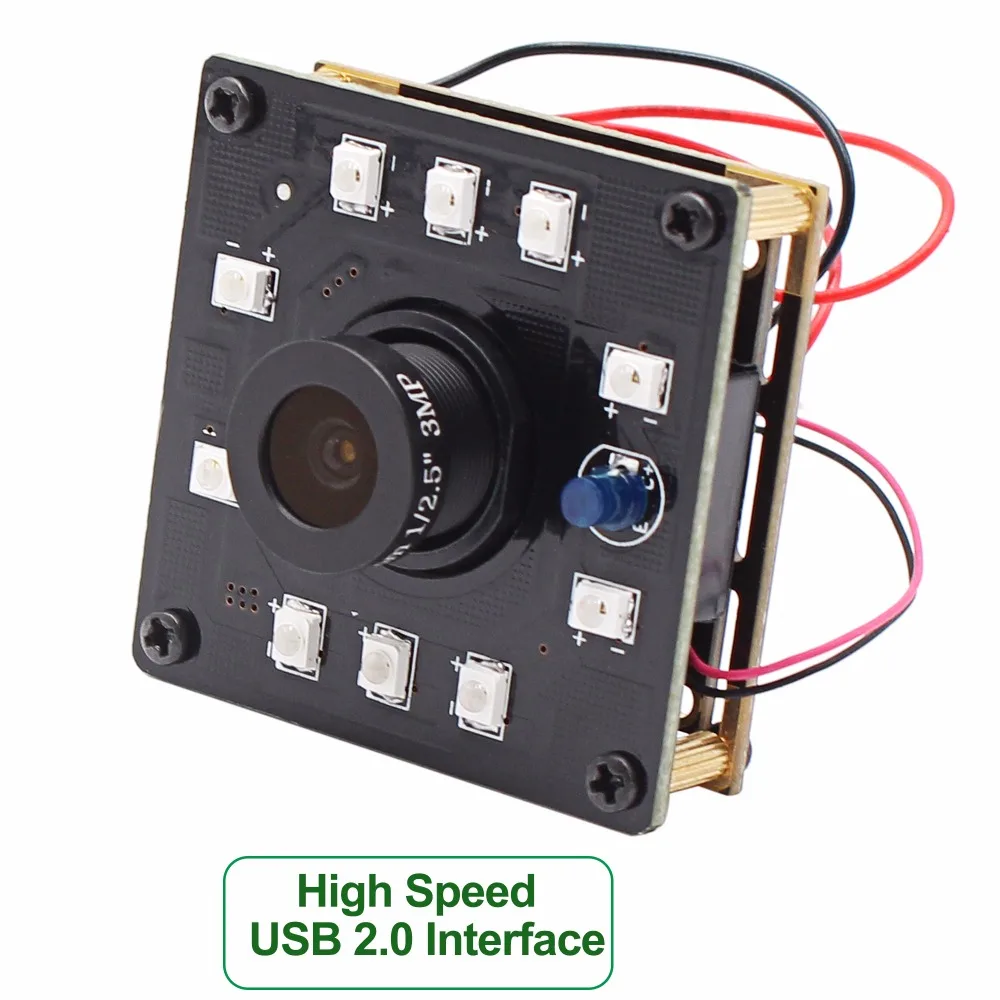

ELP 1080P 2MP CMOS Night Vision high speed IR Camera with 100 degree no distortion lens Mini industrial Webcam IR USB Camera
Package include:
1) 1 PC IR usb camera module with 100 degree no distortion lens （2.1/2.8/3.6/6/8/12mm lens optional ）
2) 1PC 1m usb cable (2m/3m/5m optional)
*High Speed 1080P HD USB Camera
*Equiped with 100 degree no distortion lens
*Can drive 30fps@1080P and 60fps@720p,120fps@480P
*CMOS OV2710 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
| Normal models | ELP-USBFHD01M-KRL100(100 degree no distortion lens) |
| ELP-USBFHD01M-KRL21(2.1mm lens) | |
| ELP-USBFHD01M-KRL28(2.8mm lens) | |
| ELP-USBFHD01M-KRL36(3.6mm lens) | |
| ELP-USBFHD01M-KRL60(6mm lens) | |
| ELP-USBFHD01M-KRL80(8mm lens) | |
| ELP-USBFHD01M-KRL12(12mm lens) | |
| Sensor | 1/2.7" CMOS OV2710 |
| Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
| Max. Resolution | 1920X1080 |
| Picture format | MJPEG or YUY2 |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps |
| 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps | |
| 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps | |
| 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps | |
| 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps | |
| 640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps | |
| 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps | |
| 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps | |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | with IR LED board and IR CUT |
| view angle | 30-150 degree optional |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |

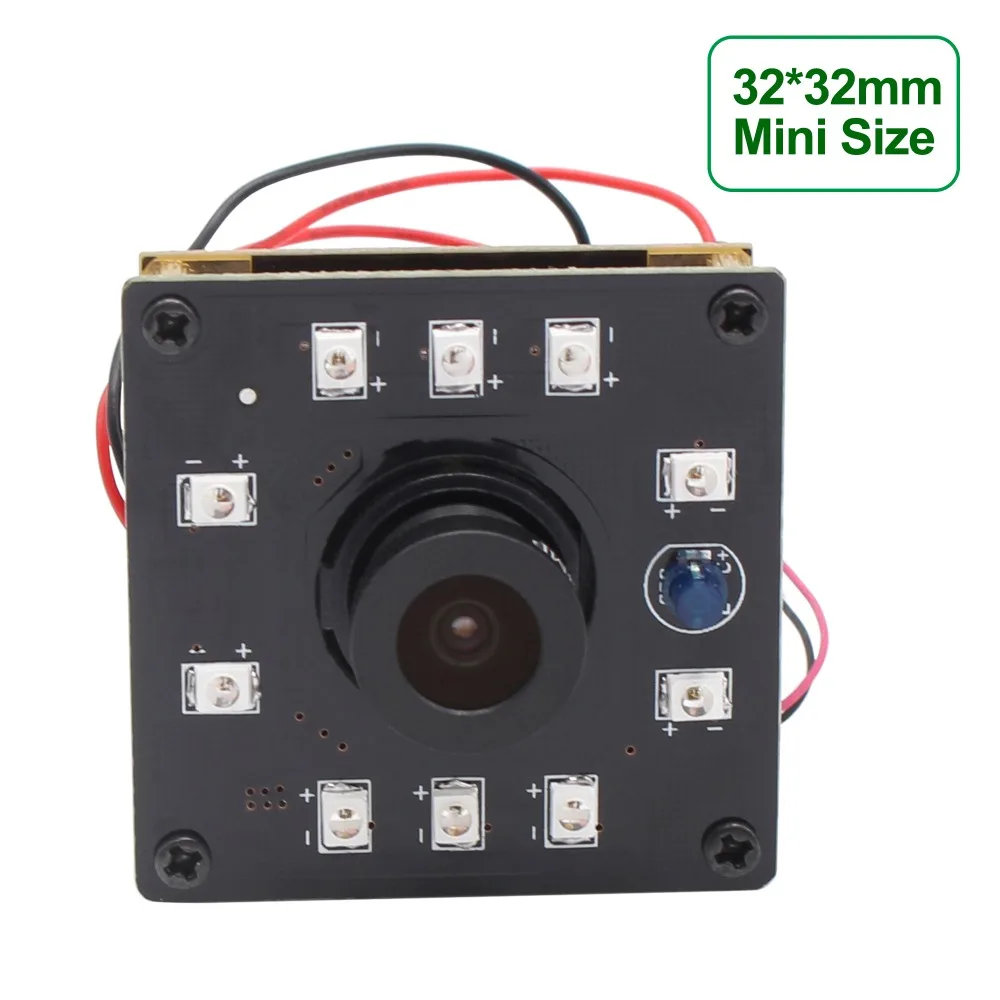

| Size | 32x32mm/38*38 |
| Support OS | WinXP/Vista/WIN7/WIN8 |
| Linux with UVC | |
| Mac-OS X 10.4.8 or later | |
| Wince with UVC | |
| Android 4.0 or above |
Outdoor /Indoor true and undistorted color image:
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
