5pcs LIfepo4 2S BMS 10A 8A battery PCB protection board with Balance function for 3.2v 32650 26650 7.3v LFP life cells pouch bag






84% чел. понравился этот товар!
В наличие
Распродажа!
Осталось:
08:08:08
6 861,18 руб.
5pcs LIfepo4 2S BMS 10A 8A battery PCB protection board with Balance function for 3.2v 32650 26650 7.3v LFP life cells pouch bag high current + free shipping , duty free
NOTE: customize service provide , We can design the voltage and discharge current as you need , Please feel free to contact us ! Thanks ~

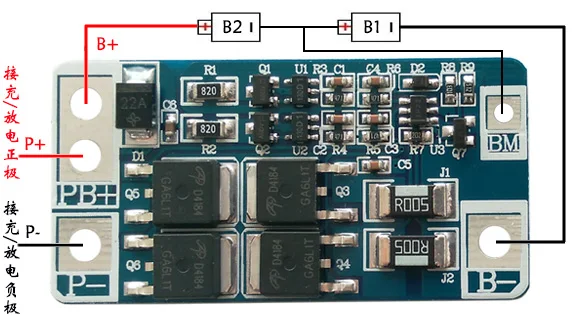

Suitable for 6v 6.4v lifepo4 battery pack, 3.2v battery can be used the discharge current is different, the others are the same. Allows current to pass: 10A Operating current , with balance fuction, Size 47*24*4.2mm Wiring instructions: there is a word on the board, B + the first battery positive B - the second battery negative BM two battery connection P + charge discharge positive P- charge discharge negative Tips: After the protection board is connected, the output will be charged first. to active. B+ is connected to the battery positive pole; · B- is connected to the negative pole of the battery; · MB is connected to the connection point between battery 1 and battery 2; · P+ is connected to the positive terminal of the charge/discharge terminal (the charge terminal/discharge terminal is shared); · P- Connect the charge/discharge terminal negative (common to the charge/discharge terminal).
