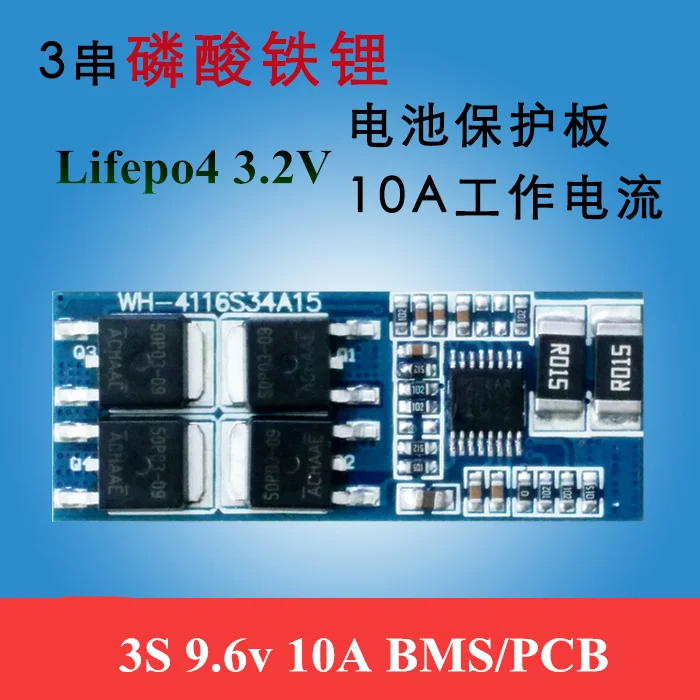

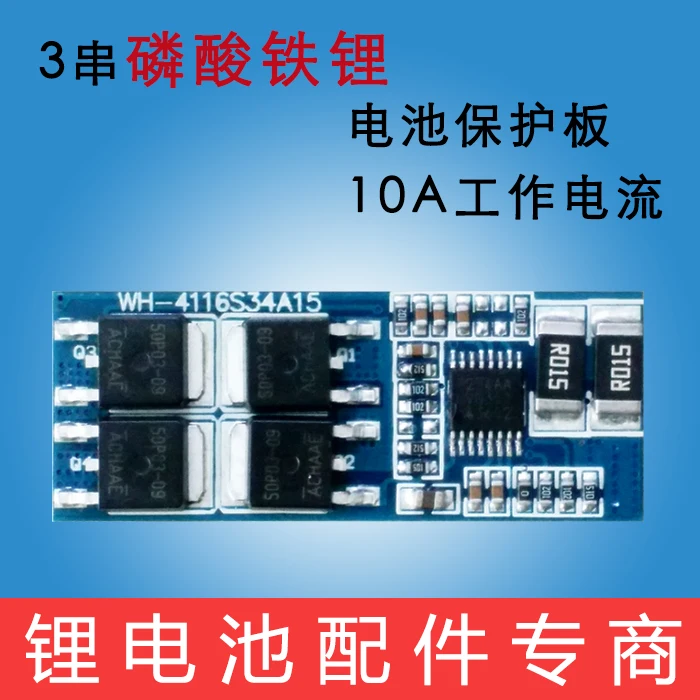

10pcs 9.6v LIfepo4 3S BMS 10A 12A battery PCB protection board for 3.2v 32650 26650 10.8v lithium LFP lifepo cells high current
88% чел. понравился этот товар!
В наличие
Распродажа!
Осталось:
08:08:08
10pcs 9.6v LIfepo4 3S BMS 10A 12A battery PCB protection board for 3.2v 32650 26650 10.8v lithium LFP lifepo cells high current + free shipping , duty free
NOTE: customize service provide , We can design the voltage and discharge current as you need , Please feel free to contact us ! Thanks ~

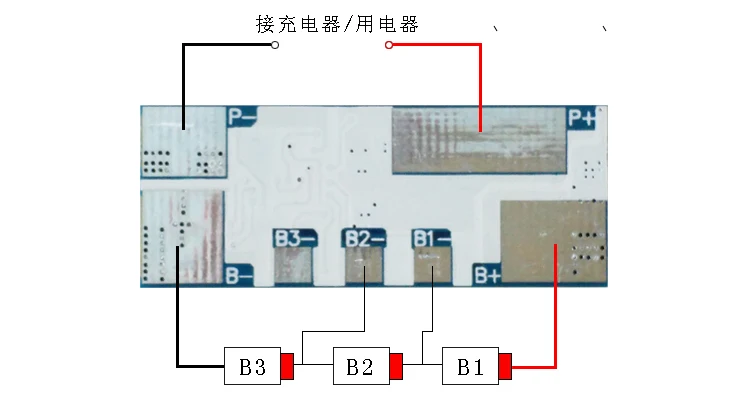

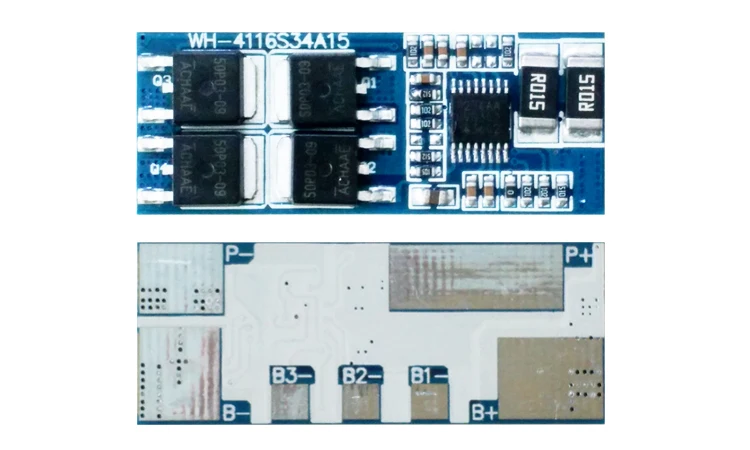

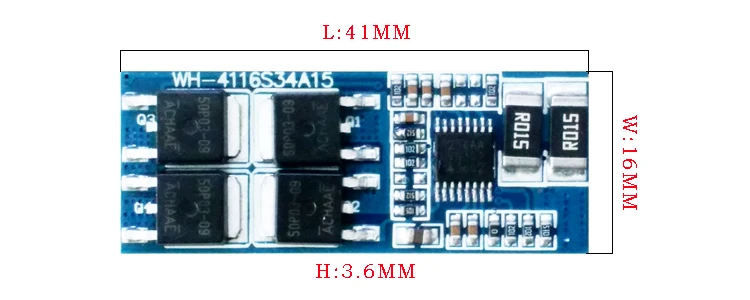

Suitable for 9v 9.6v lifepo4 battery pack, 3.2v battery can be used the discharge current is different, the others are the same. Allows current to pass: 10A Operating current , Size 41*16*3.6mm Wiring instructions: there is a word on the board, B + the first battery positive B - the second battery negative BM two battery connection P + charge discharge positive P- charge discharge negative Tips: After the protection board is connected, the output will be charged first. to active. B+ is connected to the positive pole of the battery pack; · 3.6V is not connected; · 7.2V connects the battery 2 to the contact in the battery 3; · 10.8V connects the contacts in battery 1 and battery 2; · B- is connected to the negative pole of the battery pack; · P+ is connected to the positive terminal of the charge/discharge terminal (the charge terminal/discharge terminal is shared);
