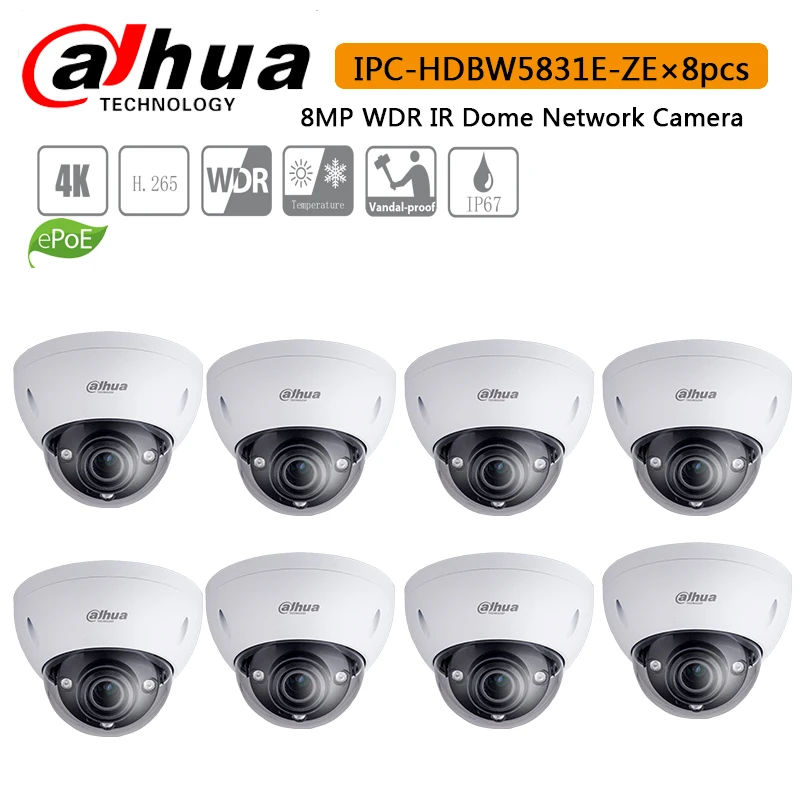

DH Original IPC-HDBW5831E-ZE 8MP WDR IR Dome Network Camera 2.7mm-12mm Motorized Lens Memory SD Card IP67 IK10 PoE 50m ICR |




IPC-HDBW5831E-ZE
8MP WDR IR Dome Network Camera
> 1/2.5” 8Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 dual-stream encoding > 15fps*4K(3840×2160),25/30fps*3M(2304×1296)
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~12mm motorized lens
> Max. IR LEDs Length 50m
> Micro SD card memory, IP67,IK10, PoE+



* Specifications:Swipe right to see more(on app) →
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.5” 8Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
3840(H)x2160(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM/ROM |
512MB/32MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination |
0.05Lux/F1.4 (Color,1/3s,30IRE) 0.2Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance |
Distance up to 50m (164ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs |
3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Motorized/ Auto Iris(DC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.7mm~12mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H:110°~40° , V:58°~23° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
4x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.3m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
W |
85m(280ft) |
34m(112ft) |
17m(56ft) |
8.5m(28ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
T |
228m(748ft) |
91m(299ft |
46m(151ft) |
23m(75ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC12V, AC24V, PoE+(802.3at)(Class 4) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<15W |
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance |
IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

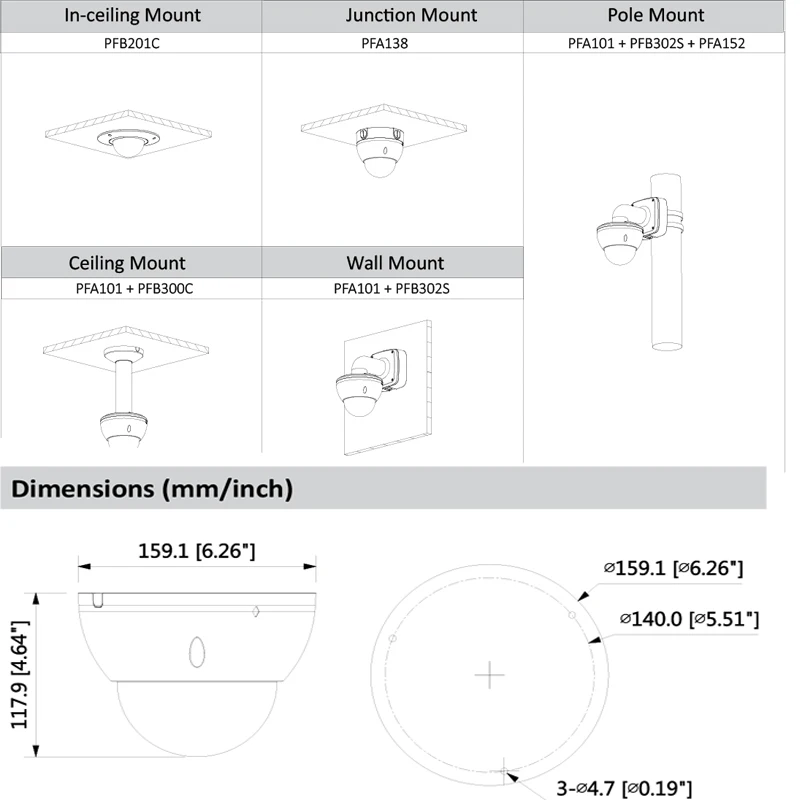

Dimensions |
Φ159.1mm×117.9mm (6.26”×4.64”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.95kg (2.09lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.20kg (2.65lb) |
