1-10V Dimmable led transformer 100W Constant voltage DC12V/24V Triac power supply for strip downlight spotlight | Лампы и

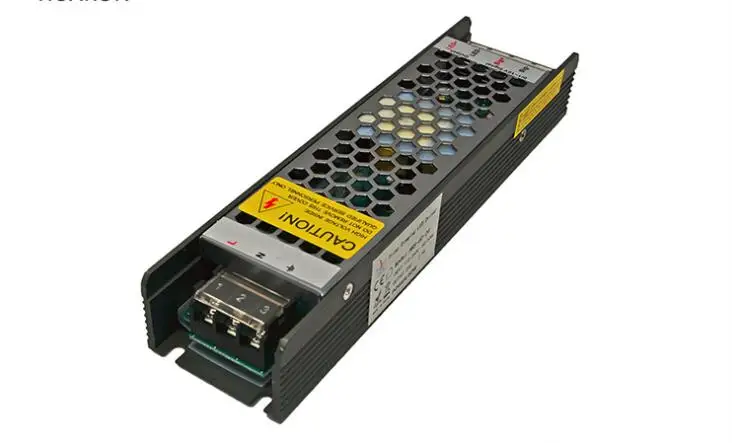

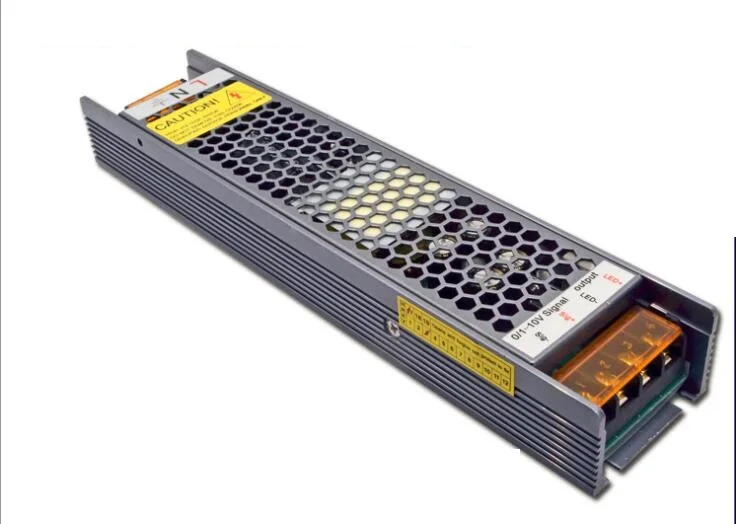

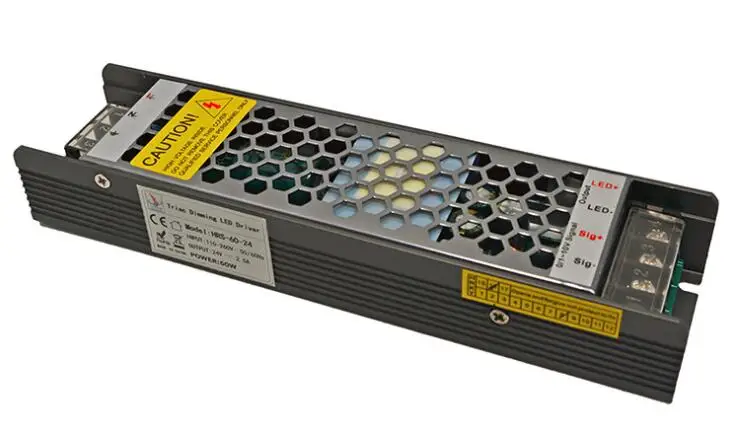

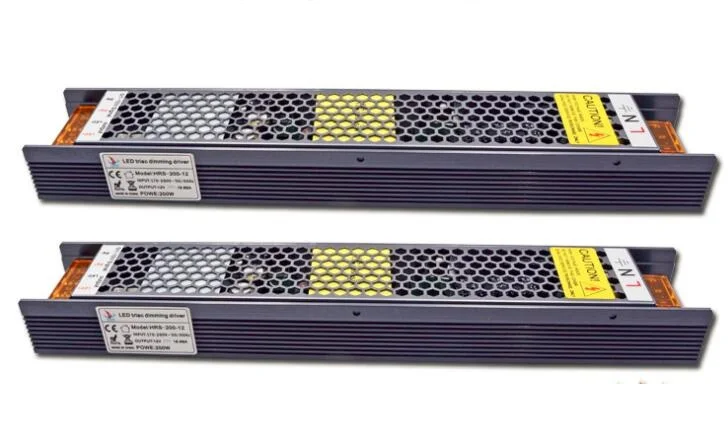

100W 1-10V led Dimmable transformer and triac dimmable driver
Power: 100W
Input voltage:AC170-265V
Output Voltage: DC12V /24v
Constant Current: 8.3A/4.16A
Power Factor:>0.9
IP Code: IP20
Frequency:50/60 Hz
Convention Efficiency: 88%
Operation Temperature:-20-+45℃
Guarantee: 5 years
Certificate: CE,Rohs,
Application: LED Downlight ,LED panel light,LED Strip and ceiling light,Mirrow light ,etc
Advantage:
Aluminous housing, light weight with Contant voltage function Isolated transformer, safety on human body The design adopts the international companies IC scheme, stable quality The life more than 50,000hrs Have the perfect over-current, over-voltage, short circuit, over temperature, over power protection function It has moisture-proof, dust-proof function Working evvironment: -10 C, +60 C It conforms to the CE, RoHS standard
