Yobang Security RFID Keyfobs Access Controller with Gate Lock opener Waterproof Touch Password Keypad Door Control System |

Waterproof Touch Metal RFID Access Control keypad Electronic Door Lock Access Control System

Overview:

The unit is a single door multifunction standalone access controller, which is an ideal choice for door access for shops, households, commercial and industrial applications, such as, factories, warehouse, laboratories, banks and prisons.

Feature:

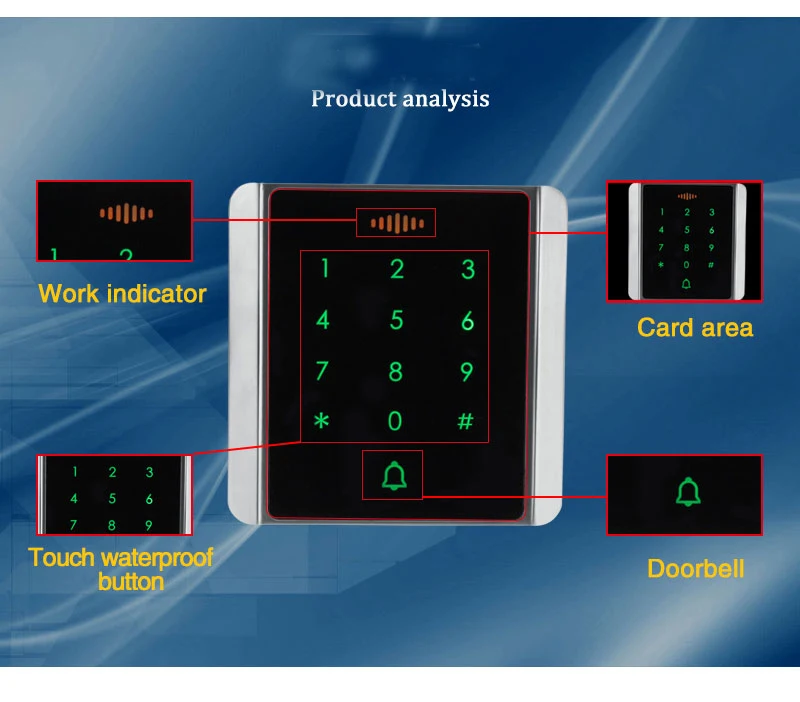

1. Touch Panel ,Doorbell Button, Waterproof Panel,conforms to IP65
2. Strong Metal case with backlight
3. Full programming from the keypad
4. 8000 users,WG26/34 input/output
   Supports Card, PIN, Card + PIN
5. Can be used as a stand alone keypad
6. Backlight keys
7. Wiegand 26 input for connection to external reader or Wiegand 34 output for connection to a controller
8. Adjustable door output time,alarm time,door open time
9. Very low power consumption (30mA)
10. Fast operation speed,<20ms with 2000 users
11. Lock output current short circuit protection
12. Easy to install and program
13. Built-in light dependent resistor (LDR) for anti tamper.

Specification:

• Operating Voltage : DC12V
• User Capacity: 8000
• Card Reading Distance: 5~15cm
• Current: <30mA (Standby); <60mA (Active)
• Lock Output Load: <3A
• Alarm Output Load: <20A
• Operation Temperature: -45C~60C
• Operating Humidity: 10%~90% RH
• Waterproof: Conforms to IP68
• Adjustable Door Relay time: 0~99 seconds
• Wiegand Interface: Wiegand 26 bit
• Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader
• Compatible Cards: EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCIK, etc)
• Frequency: 125kh

Package Include:

• 1 * Access Control
• 1 * English User Manual

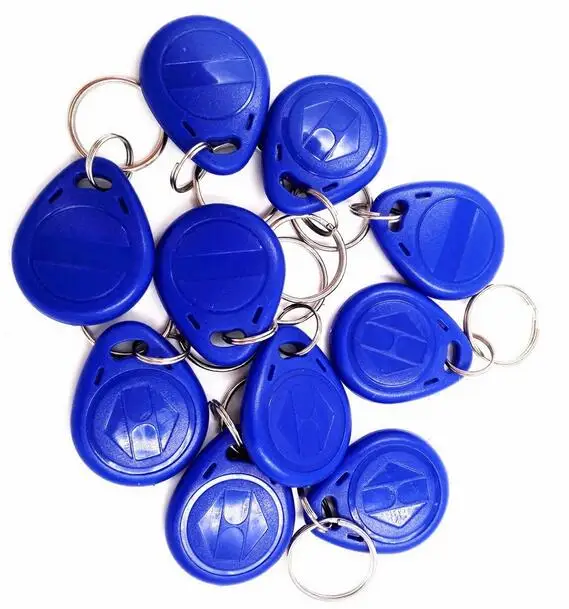

• 10 * RFID keyfobs
