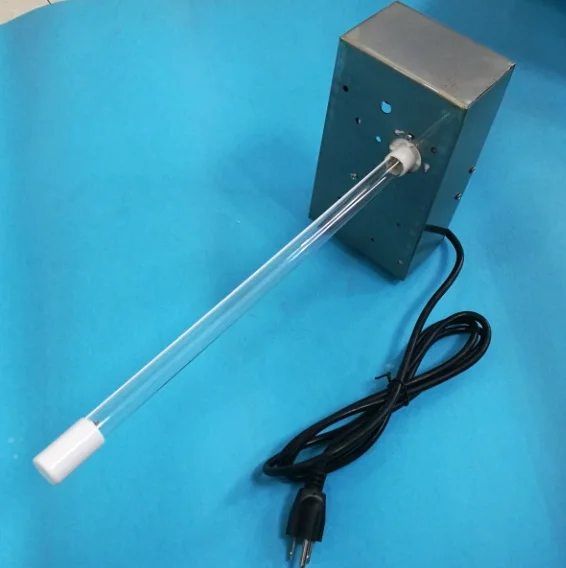

The UV Cleanser represents the strongest available UV Cleanser available for today’s demanding quality market and is the only system of its kind with a LifeTime Warranty.



Voltage: 115 volts



Total Amperage: .70 at 115v and .35 amps at 230v



Bulb: High Output 253.6nm - Hot Cathode



Bulb Options: Non-ozone or .05 Ozone



Intensity @ 1 Foot: 1025 nanometers per second



Intensity @ 1 Foot: 2050 nanometers per second Twin Bulb Model



Lamp Length: 16 inches



Lamp Life: 1-3 years diminishing after year one



Dimensions: L 7-¼” W 4-¼” H 1-3.4” – 2-½”



Weight: 1 Lbs.



Power Cord: 6 Foot



Warranty: LifeTime



Packing:44×23×48CM/10PCS/12/11KG



According to the Environmental Protection Agency, the air we breath in our homes here in Phoenix can be up to 70 times more polluted than outdoor air. Poor indoor air quality is a problem that affects everyone whether you have a central forced air system, heat pump, split or package system or window units. Air conditioning coils are full of moisture, in the form of condensation, which bacteria and mold thrive on. This makes your air conditioner coil a breeding ground for microscopic growth and every time your system turns on these spores are released into the air from the coil. These spores then travel through the air ducts and are blown right out the vents throughout your entire home. This commonly causes allergic reactions, sinus problems and even headaches, commonly referred to as Sick Building Syndrome. The solution is simple, and very cost efficient. All these microorganisms can be removed by having Arizona Acclimated Services install an intensive ultraviolet disinfectant system for you.





Unlike filters, which collect pollutants as they pass through your home HVAC system, ultraviolet light purifiers neutralize the pollutants. A properly installed UVC light disinfectant system will emit doses of short wave ultraviolet "C" light as the air passes through the system. The highly intensive radiant UVC light kills these spores, mold, bacteria and viruses carried in the air. This process provides continuous cleaning of the air, coils and drain pan. Data provided by the EPA has shown that UVC purifiers to be 99% efficient at inactivating these harmful contaminants.

Influenza-A

Staphylococcus

Streptococcus

Tuberculosis

And More

UV light has been proven for decades to effectively disinfect air, surfaces and water. In heath care institutions where occupants are constantly exposed to the pathogens that cause infectious diseases, ultraviolet units are used to kill the microorganisms as rapidly as possible. On an average day a family of four will introduce countless numbers of influenza, streptococcal and germs into their home. Cleansers and detergents work well for kitchens, bathrooms, and the clothes we wear, but what about the air we breath? UV air purifiers can help your family live in a healthier environment, especially if any of them suffer from allergies, asthma or other respiratory disease.





Germicidal UV In-Duct Whole Home HVAC Air Vent UV Air Cleanser Ultraviolet Air Purifier Whole House Germicidal UV Light



UV AIR LIGHTS FOR HVAC OR HOME AIR PURIFIER

UV-C light inhibits the growth and reproduction of germs and bacteria that circulate through a home’s heating and air conditioning system. The treatment is a safe, silent, and proven way to make your home a healthier place to live.



The UV-PURE unit is designed to emit powerful UVC band light rays which sterilize and reduce airborne microorganisms as they pass through a heating or air conditioning system. It is installed in the main supply or return duct and operates continuously to automatically purify the air in the home 24 hours a day.



This product is not sold as a medical device and is not for the purpose of diagnosis of any disease or condition nor for use in the mitigation, treatment, or prevention of any disease or condition.



READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.



This device MUST be installed by a qualified agency in accordance with the manufacturer's installation instructions. The definition of a qualified agency is: any individual, firm, corporation or company which either in person or through a representative is engaged in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the precautions required, and has complied with all the requirements of the authority having jurisdiction.



SAFETY CONSIDERATIONS



WARNING: Before installing or servicing a humidifier, air filter, heat system, or this unit, etc., always turn

all power OFF and have units unplugged. Electrical shock can cause personal injury or death. Never

expose eyes or skin to direct UV-C light from any source.

WARNING: To prevent water damage or electric shock, do not mount unit under a humidifier.

WARNING: Designed for a closed duct system. Do not mount near a return air opening.

WARNING: This product is designed for indoor installation only (i.e. attics, crawl spaces, basements,

etc.). For use on gas fired, oil fired, electric and split system heat pump forced air systems*. This product

is NOT designed to be mounted outside on gas fired or heat pump packaged units**.

WARNING: Never expose eyes or skin to UVC light from any source.

• Looking directly at the UVC light may cause permanent eye damage or blindness.

• Never operate the UV-PURE Air Purifying System out of the plenum.

• Designed for a closed duct system. Do not mount near a supply or a return air opening.

• All duct openings in direct line of site of the UV light must be sealed with aluminum tape or equivalent sealing methods.

WARNING: UV light will break down plastic materials not rated for UV exposure:

(Examples: wire insulation, flex duct, drain pans and humidifiers)

• The unit must be mounted at least 30" from the above stated type of materials.

• I f it is necessary to mount the unit in direct line of sight of these types of materials, they must be shielded with aluminum foil, aluminum foil tape, or sheet metal.

WARNING: DO NOT mount this unit outdoors.

• This product is designed for indoor installation only (i.e. attics, crawl spaces, basements, etc.).



WARNING: Never touch broken lamp or internal contents of lamp. The lamp contains mercury.

• After opening the carton, unpack and inspect the unit and lamp for damage. Do not install

this unit if any damage is noticeable. If lamp is damaged, cracked or broken, do not touch

lamp or other contents in carton. Close carton and return to seller immediately.

• In case of accidental exposure to internal contents of lamp, wash hands and any other

affected skin area with mild detergent. Remove affected clothing immediately. If skin surface

is pierced, seek medical attention immediately.

NOTE: If you touch the glass of the lamp, you should wipe the glass clean with isopropyl alcohol

and a lint free wipe. If the lamp is not cleaned, the film of hand oils causes a reduction in the

light intensity.

WARNING: Before installing or servicing a humidifier, air filter, HVAC system, or this unit, etc.,

always turn all power OFF and have unit unplugged. Electrical shock can cause personal injury or

death. Never expose eyes or skin to direct UVC light from any source.

WARNING: To prevent water damage or electric shock, do not mount unit under a humidifier.

WARNING: This product is designed for indoor installation only (i.e. attics, crawl spaces, basements,

etc.). For use on gas fired, oil fired, electric and split system heat pump forced air systems*. This

product is NOT designed to be mounted outside on gas fired or heat pump packaged units**.



WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.

Never operate the UV-PURE Air Purifying System out of the plenum.

Avoid touching the glass portion of the lamp with your hands



GENERAL INFORMATION

The UV-PURE unit uses technology that is recommended by doctors who state that “ultraviolet radiation,properly integrated with heating, ventilating, and air conditioning systems, shows the most promise as a widely applicable means of air disinfection”.





INSTALLATION

1. Locate a suitable location for the unit

downstream from the 'A' coil in the supply

plenum or in the return plenum; preferably

downstream from the air filter. For optimum

"cleaning" effect on the 'A' coil, mount the

unit in the supply plenum as close as possible

to the 'A' coil. (See Figure 1)



 For more uv purifier see below





Packing:44×23×48CM/10PCS/12/11KG

We support retail and wholesale.  If Quantity is big, pls ask for discount for freight cost and unit price   Super Quality with Extremely competitive prices Quartz material Factory direct supply   We are Professional UV Lamps, UV Air Cleaners , Quartz Sleeve,UV Ballast Manufacturer and Exporter,  If you can not find what you are looking for,pls contact us ,We will satisfy your needs! 10% USA Cost With High Quality, OEM/ODM Accepted, Small Order Welcome.   Our goods do not supporting return policy, as this is easy broken item and it is consumption goods.
