Universal test frame PCB testing jig PCBA fixture Tool bakelite Test Rack |

Universal test frame PCB testing jig PCBA test fixture Tool bakelite fixture Test Rack

Description：

The test rack of each model contains the corresponding ABC board, such as FC80X50X42, which contains 80X50X42ABC board.If you need to purchase ABC board separately, please contact customer service to purchase it!

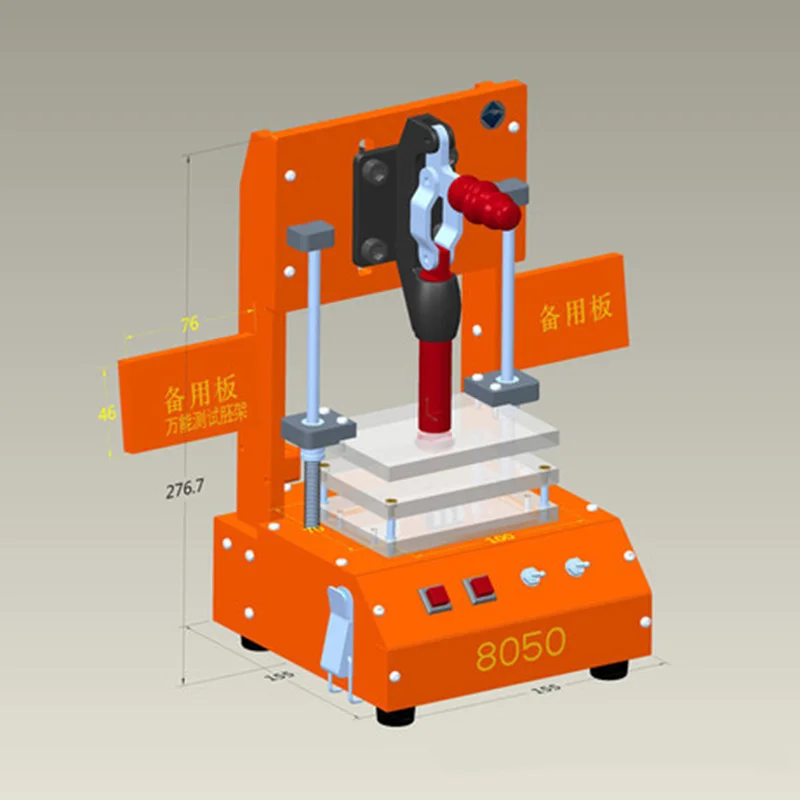

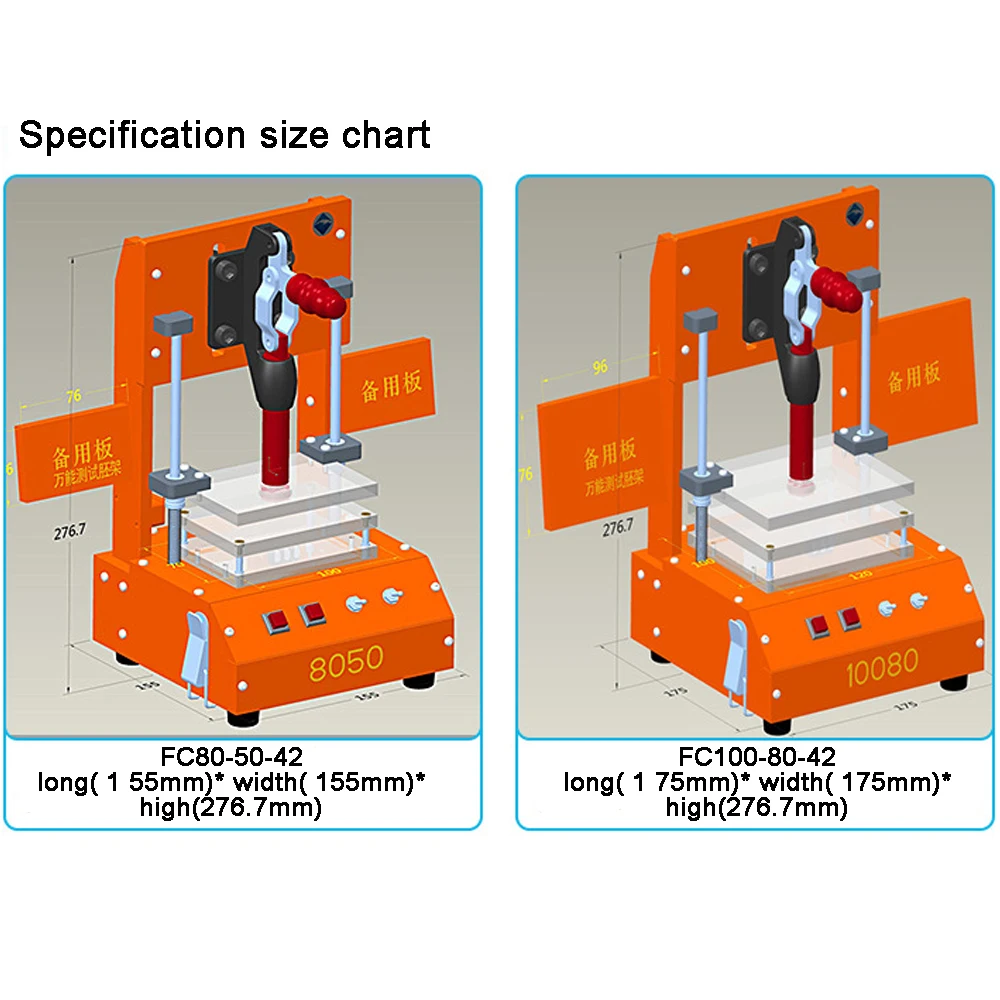

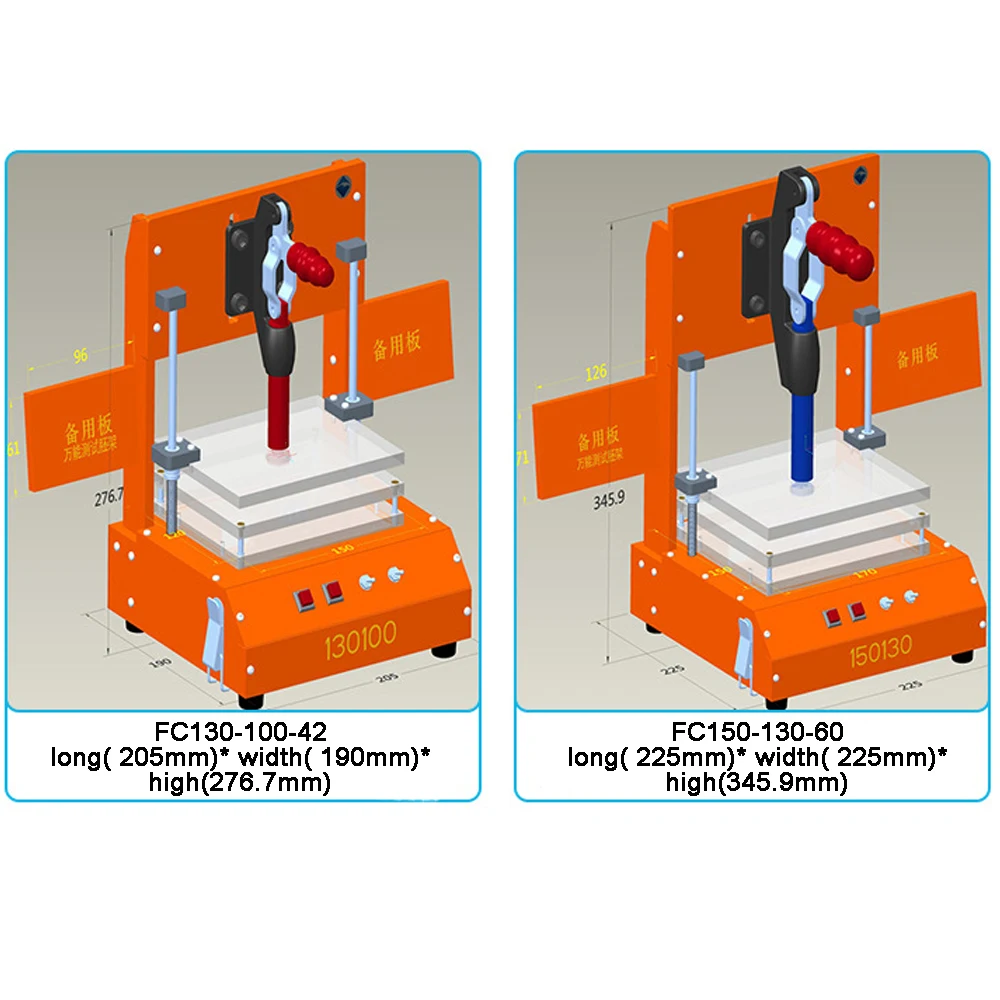

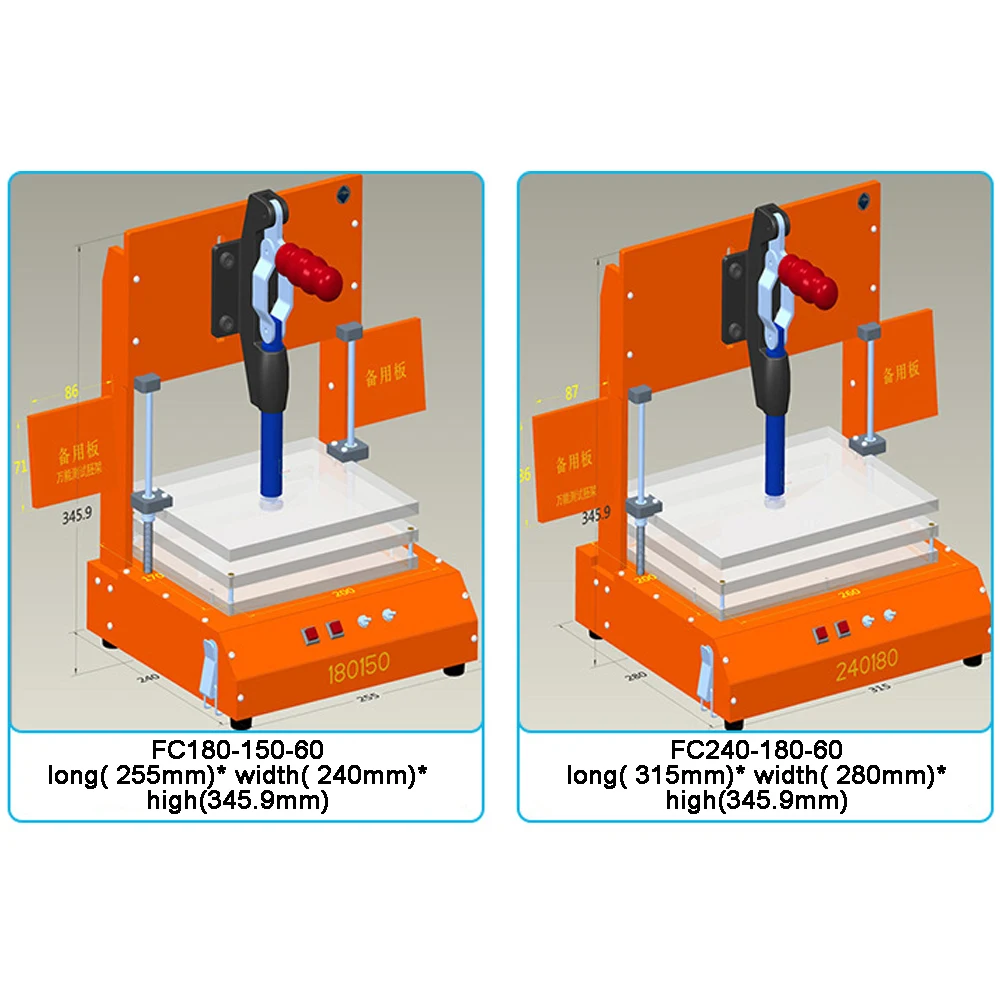

The FC80-50-42 can be tested with a PCB board with a maximum size of 80X50mm, and a PCB board within 80X50mm can be used to select the frame, and 42mm indicates the test schedule.If you need to test different PCB boards, you can process the ABC board and suggest several sets of ABC boards.

The material of ABC third board is: 8-10mm transparent acrylic sheet (80-50-42, 100-80-42, 130-100-42, transparent acrylic thickness is 8mm,150-130-60\180-150-60-240-180-60. 3 board transparent acrylic thickness is 10mm.)

The frame material is the electric wood, the express logistics is very safe

How to choose the embryo frame:

Within the size of 180*150mm, choose the 180-150-60 type embryo frame.

Feature:

1. The cover can be opened to facilitate the welding line;

2. Replace the A, B, C board for easy replacement

3. The distance between B and C board is adjustable;

4. The positioning pin has insufficient elastic force, and 4 holes are reserved for convenient increase;

5. Standard fitting hole position, accessories are free to choose;

6. The C board adapter plate can be rotated by 90°.
