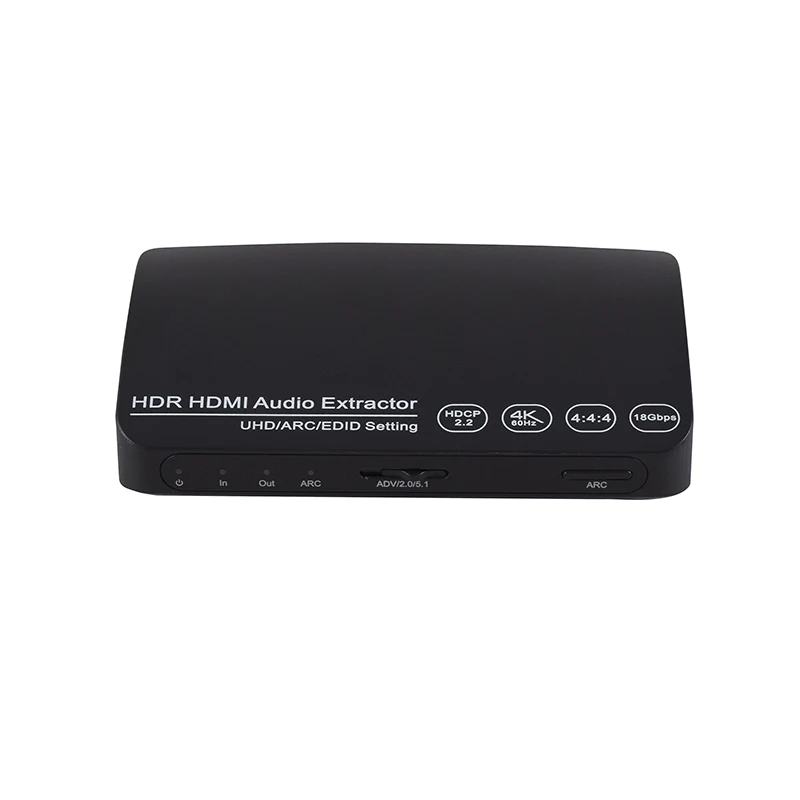

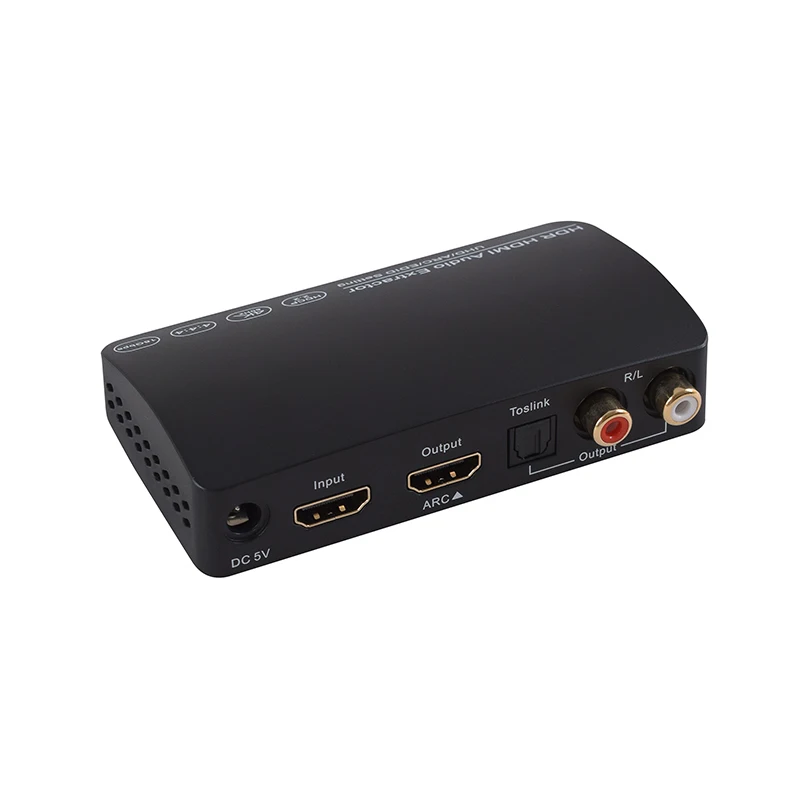

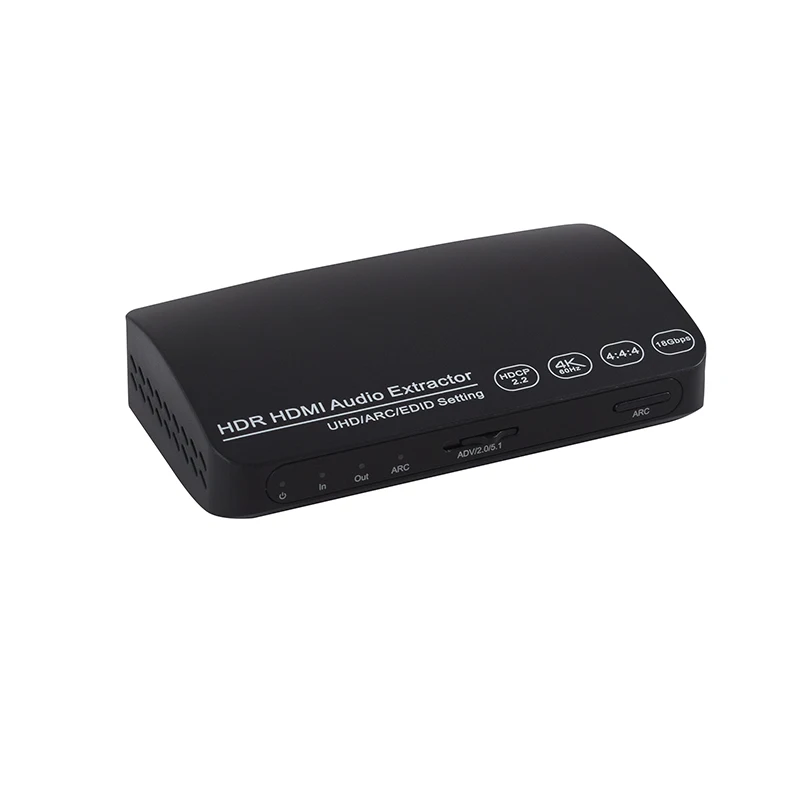

18 Gbps 4k HDMI Switch Splitter with Toslink Analog Audio Extractor Supports ARC 3D 1080P 4K for PC Laptop XBOX 360 PS4 |
81% чел. понравился этот товар!
В наличие
Распродажа!
Осталось:
08:08:08
305,61 - 322,24 руб.

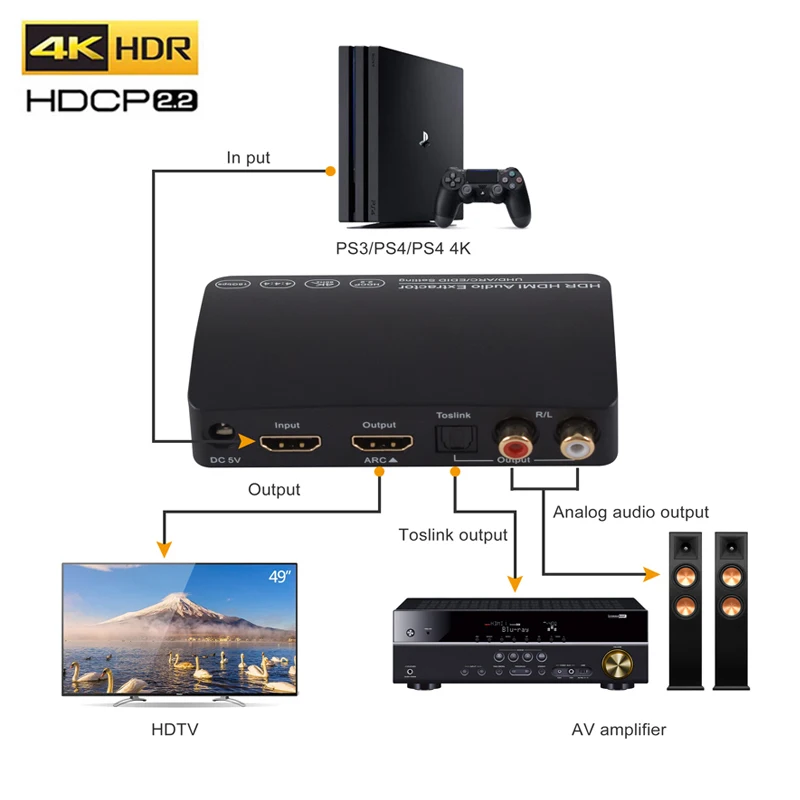

Connection and install
1.To use HDMI cable to connect the HD source with the HDMI input port of device. 2.To use HDMI cable to connect the HDMI output port of device with the display. 3.To use optical cable to connect the toslink output port of the device with the AV Receiver. 4.To L/R audio cable to connect the L/R output of the device with the speaker. 5.To connect the power adaptor to the DC 5V port of the device. 6.SWITCH:Switch button for audio output mode, it can choose 2.0, 5.1, ADV [Advance audio] three kinds of audio output mode by circulate switching (When switch to 5.1 audio mode output, the Digital audio signal receiving terminal must can support DTS/DOLBY-AC3 decode, or the audio signal receiving terminal will have no sound output; If need the audio signal receiving terminal can output the audio, pls switch to 2.0 audio mode. When audio output switch to the ADV [Advance audio] mode, the audio output format will be decided by the audio signal receiving machine audio decode ability. The device will output 7.1 channel audio signal while the output end connects the av amplifier with HDMI port that support 7.1 channel audio decode.(the HD Source signal itself is 7.1 channel) 7.After pressing the ARC button , the ARC function is enabled and the matched ARC led light will go bright, the Toslink output port will output the TV ARC audio.(Please make sure that your TV can support ARC function); after pressing the ARC button again, the ARC function is closed and the ARC led light will go dark,and the Toslink port and L/R output port output the extracted audio from the HDMI input. Specification: Mode name:HDR HDMI Audio Extractor Input channel:HDMI port Output channel:HDMI port.Toslink port.L/R port ARC features:Support(Toslink output only) Video format:480P/720P/1080P/2160P Deep color:8/10/12Bit@480P/720P/1080P 8Bit@2160P Digital audio output supported audio format:LPCM2.0/DTS/DOLBY-AC3 Analog audio output amplitude:2V RMS DAC sample frequency range:32-192 KHz DAC Bit rate range:16-24 Bit HDMI transmission bandwidth:25-600MHz HDMI transmission rate:0.75-18Gbps HDMI version:HDMI 1.3/1.4/4k 60Hz HDCP version:HDCP 1.2/1.4/2.2 Input cable length:2160P/AWG 26 le5m 1080P/AWG 26 le10m Output cable length:2160P/AWG 26 le5m 1080P/AWG 26 le10m Power adapter specification:Input: AC 100-240V Output: DC 5V/1A Max working current:700mA Storage humidity:5-95%RH(No Condensation) Accessories:Manual, Power Adaptor Package include： 1 x HDMI converter 1 x USB cable 1 x UA Plug 1 x User manual 1 x Box
