300mm + 600mm 2 Axis Linear Scale Kits Encoder 1+ 10/240VAC Digital Readout DRO For Milling Machine |
About us
Welcome to our shop, we are a professional CNC machine tool accessories and motion control product supplier, located in Shenzhen, China. We provide complete machine tool accessories solutions, and we have 5 professional Mechanical engineers providing type selection, system design and technical support services. Any questions please contact us freely.
Model available
|
Digital Readout Displayer |
1 /2 /3 /4 Axis |
|
Linear Scale travel (L0=0~3000mm) |
50/100/150/200/250/300/350/400/450/50/550/600/650/700/750/800/850/900/950/1000……. |
|
Resolution |
Standard: 5um (1um/0.001mm resolution optional) |
Please select or leave a message about the model you need, for any questions, just contact us ☺

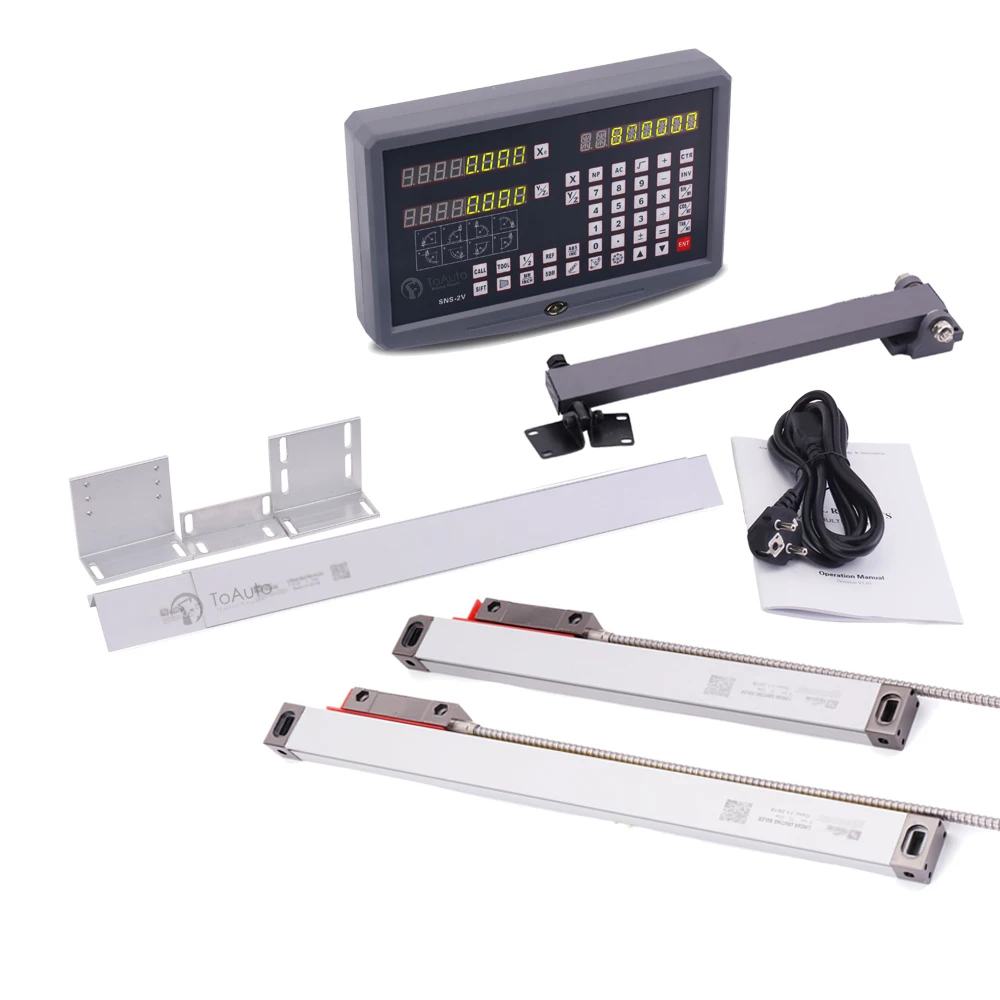

Shipping listing （for this Listing）
|
1 PC |
2 Axis digital readout display DRO |
|
2 PCS |
Linear Scale （300mm + 600mm） |
|
1PC |
Instruction Manual (English) |
|
Accessories |
scale cover, L connecting bracket, scale cover, screw bag and so on. |

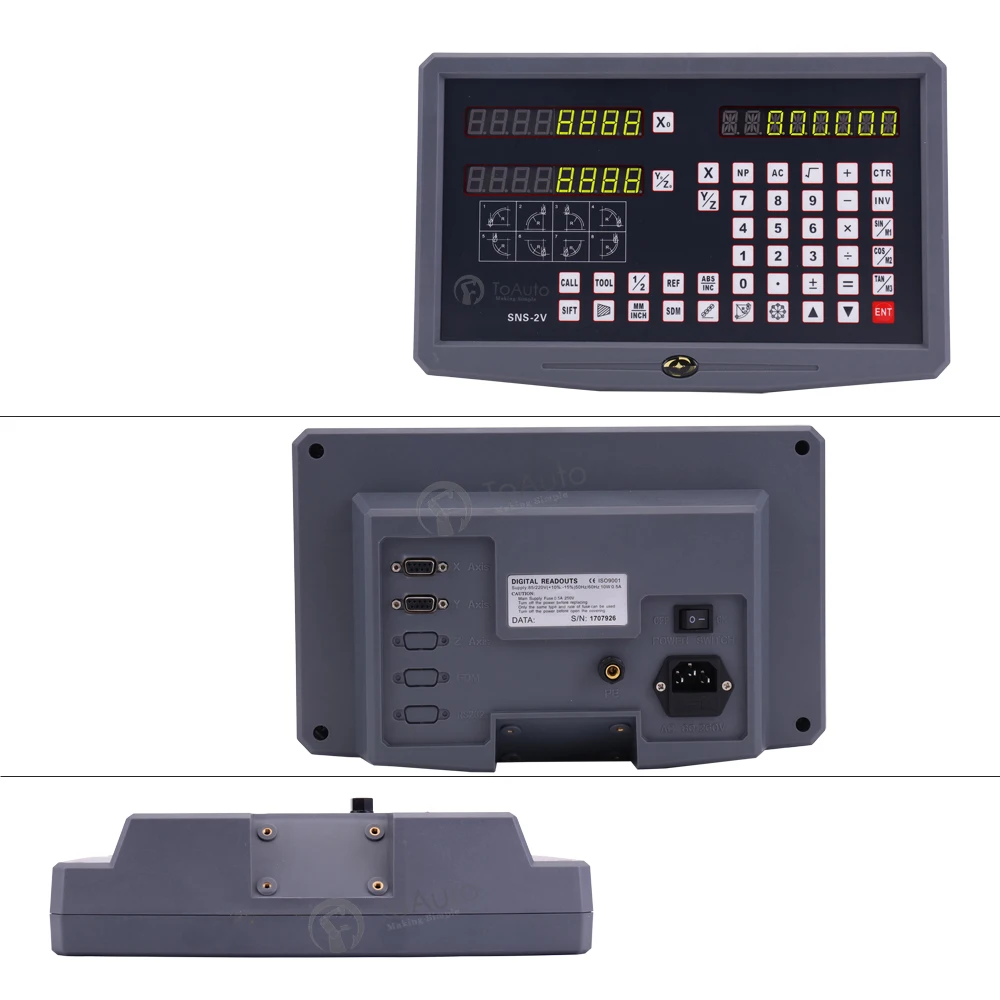

Specifications of digital readout
|
Technical parameters |
|
|
Supply Voltage range |
AC 86V~240V; 50~60Hz |
|
Power consumption |
15VA |
|
Operating temperature |
0~50 degree centigrade |
|
Storage temperature |
-30~70 degree centigrade |
|
Relative humidity |
Less than 90% |
|
Readout allowable input signal |
TTL square wave |
|
Allowable input signal frequency |
Less than 5M Hz |
|
Max resolution of digital display length |
5µm |
|
Min resolution of digital display angle |
0.0001/pulse |
|
Cable length |
3-meter |
|
Weight |
1.2kg |
|
Dimensions |
299*191*56mm (11.8"*7.5"*2.0") |
|
Linear Scale communicate |
DB9(RS232) |
|
Display language |
English |
|
Lifetime |
five million times |
|
Functions overview |
|
|
. Parameters setting . zeroing . preset data to designated axis . Toggle display unit between inch and mm . Absolute/Incremental/200 groups SDM . 1/2 Function . Clear all SDM datum . Sleeping mode . Power interruption memory . Search the absolute reference point of scale . Non linear error compensation . 200 groups SDM coordinate (Zeroing at the current point, Preset datum of SDM coordinate)
|
. Calculator . Circumference holes processing . Linear holes processing . ARC Processing . Oblique processing . Slope processing . Chamber processing . The tool diameter compensation function . Digital filter of the grinding machine . Lathe function(200 sets tool libs, taper function,l R/D function, Y+Z function) . EDM function |
Feature
(1) Digital readout kit can avoid wasting time to check machine precision
(2) Advanced functions calculator so to accomplish a perfect project

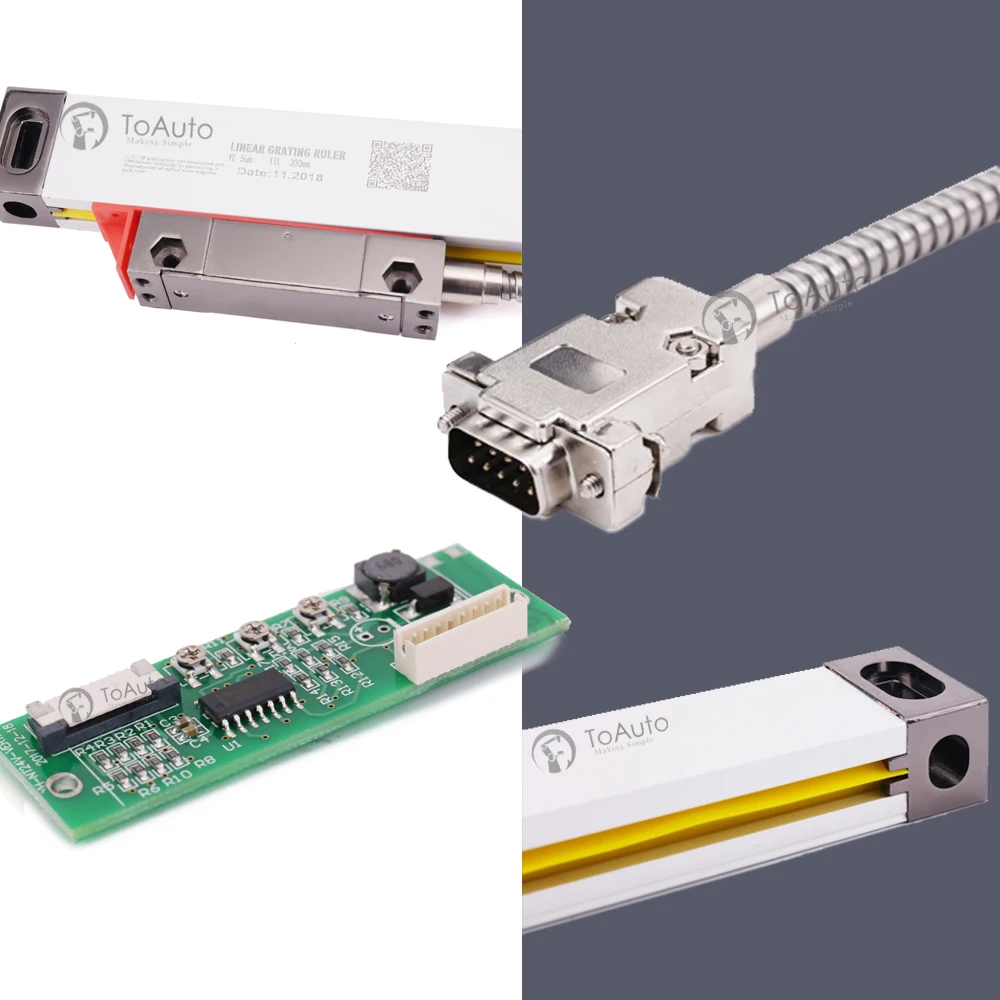

(3) Reliable quality. signal line using multi-layer isolation wire and metal soft shell to prevent interference;The scale body is made of aluminum alloy, which is durable after anodic treatment.The sensors use the precision measuring grating as the measuring datum, high precision.
(4) Technical support is always free. 1 year warranty.
Application field
The digital readout is applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Keep the manual for future references.
