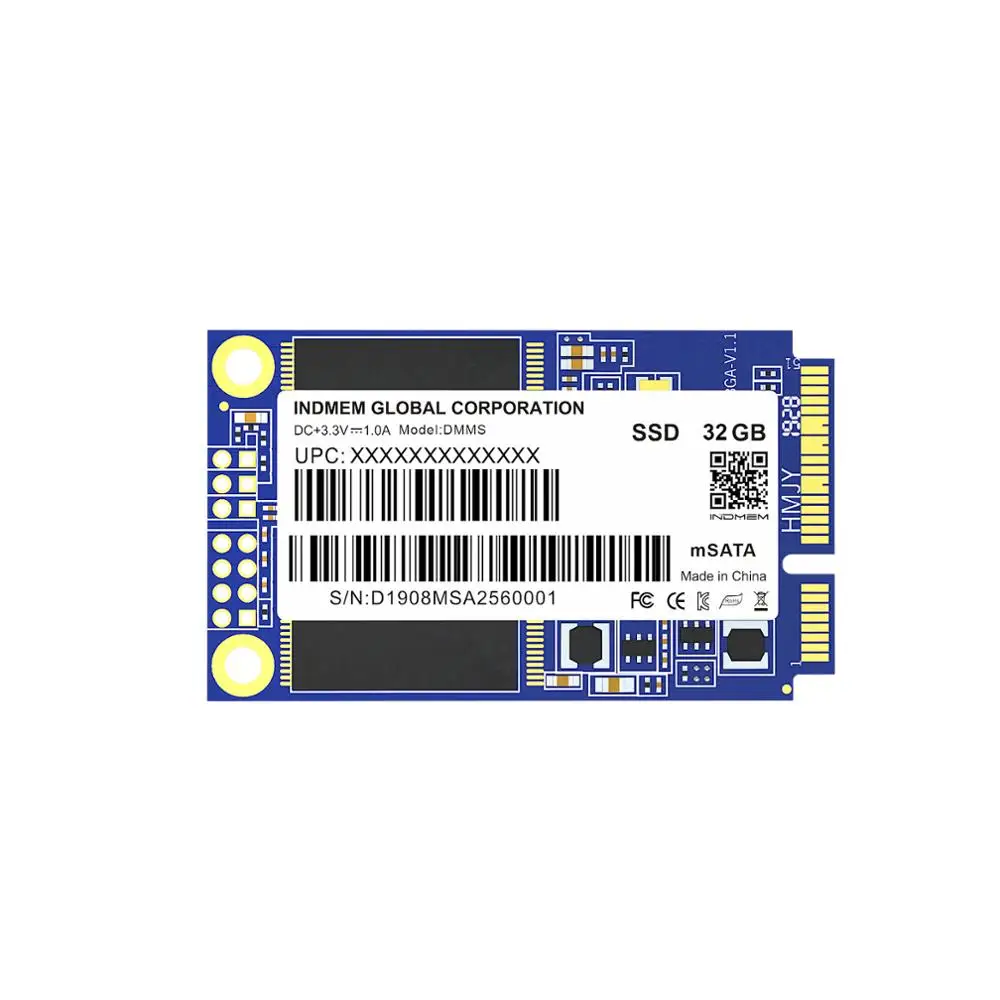

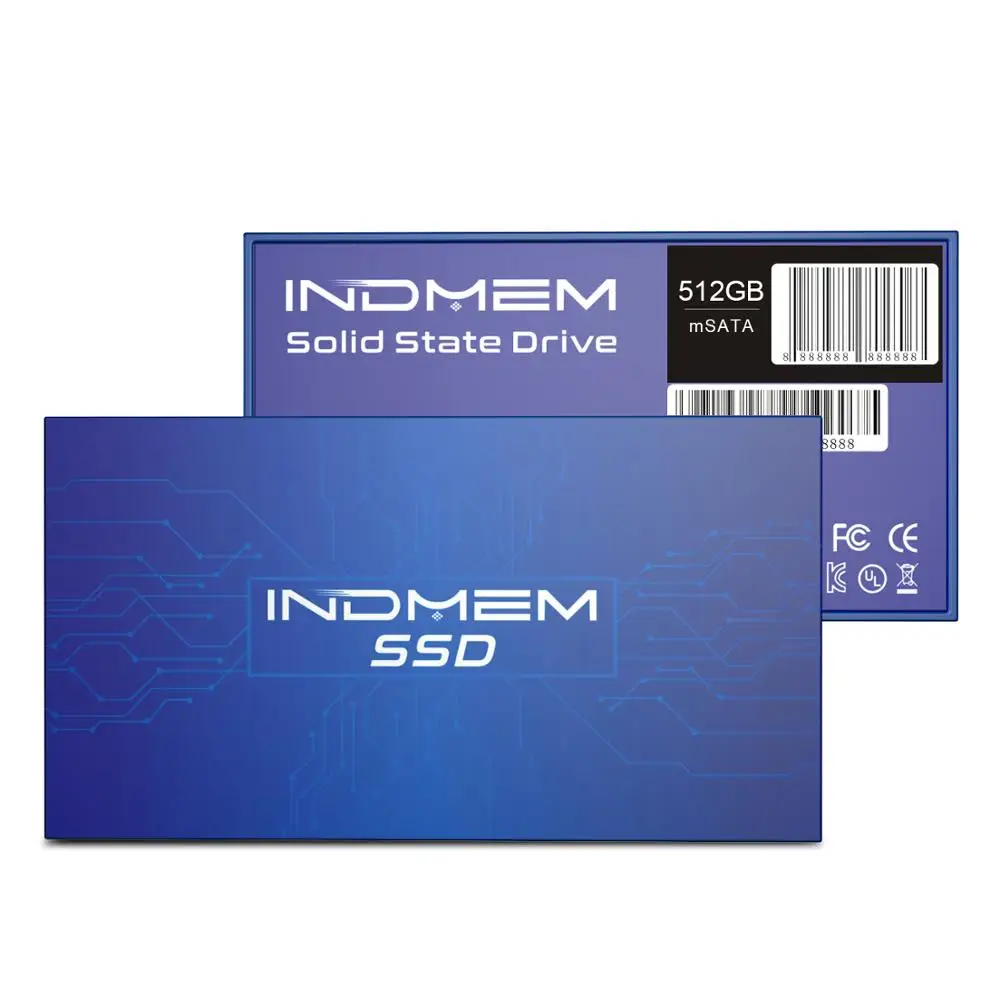

INDMEM mSata SSD MLC Sata 256GB 128GB 64GB 32GB HD mSata SSD 120GB 240GB 512G Internal Solid State Hard Drive Disco Duro SSD MLC
Powered by 3D NAND Flash MLC Chip, SMI Master Control. Stable read and write speeds, no velocity attenuation. More stable reading and writing than using virtual SLC mode.
Built-in ECC and average algorithm, bad block management system with error correction formula function.
Fast Real Sequential Read & Write Speed up to 550MB/s and 280MB/s. Rapid boot response.
10,000 Erase Test with Low power consumption. Compatible with all mSATA interface devices, such as desktop PC, laptop, ultrabook, tablet PC, point of sales terminal (POS).
3 year manufacturer's limited warranty.
mSATA Size: 50*30*4mm
Interface Type: mSATA
Work Temperature: 0°C to 70°C
Master Control: SMI
Chipset: NAND Flash MLC
1x mSATA SSD
1x Instruction Manual
1.Why the capacity displayed from PC is smaller than original capacity?
Actual usable space may be less than the total storage capacity listed due to Deci
mal measurement used to represent usable capacity of the SSD.
Actual capacity calculation: Total storage x 0.93
Factory default setting :1GB= 1000MB= 000000K010000000000
Computer system setting:1GB= 1024MB=1048576KB=1073741824B
Example: 360GB SSD
Factory capacity: 360x1000x 1000x1000=360000000000B
Transfer to PC displayed actual capacity:
Fast calculation: 360Gx0.93=335G
2.Why can't we find SSD hard disk and read/write data?
The newly bought SSD generally need to be formatted in Disk Management before
using.It is recommended to format in the windows operating system and use NT
Step 1: Launch EaseUS Partition Master.
On the main window, right-click on the unallocated space on your hard drive or external storage device and select "Create".
Step 2: Adjust the new partitionsize, file system, label, etc. ...
Step 3: Confirm to create a new partition.
3.Why the test speed is different from yours?
In our description, the speed is just for your reference, SSD speed will be influenced by many factors, such as interface type, computer hardware grade, computer system, and test system.
4.How to format SSD and achieve 4K alignment?
Win7 or higher version OS is recommended due to 'Disk Management Formatting"
function is built in the systems. We recommend NTDS disk partition format and D
ISKGENIUS tool to make drive partition.
PS: Please make sure your PC system runs under AHCI mode.Otherwise,SSD write
/read speed performance and response time will be affected. Use as SSD Benchm
ark to check if SSD has complied with 4K Alignment and already been under AHCI
