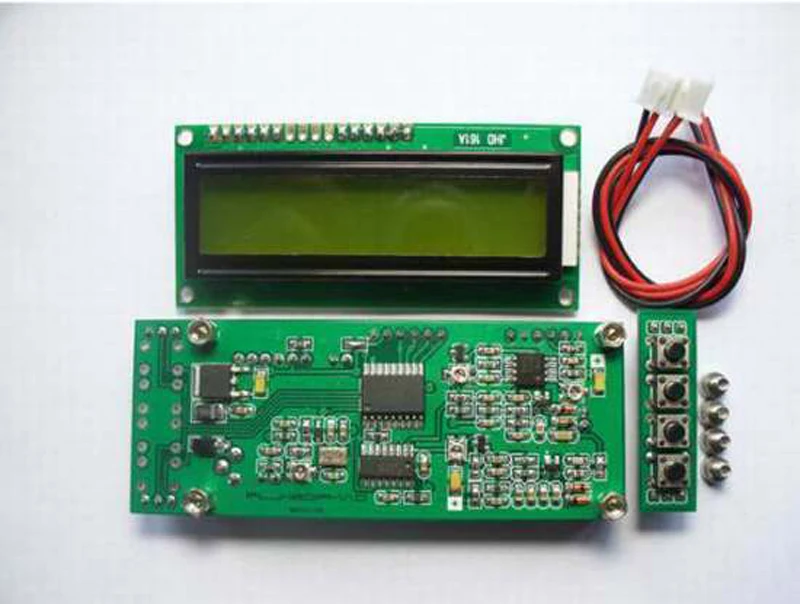

0.1MHz to 1200MHz Frequency Meter PLJ-1601-CCounter Tester Measurement Digital display Cymometer Module For Ham Radio Amplifier

0.1MHz ~ 1200MHz frequency meter PLJ-1601-C frequency components of the frequency measurement display module

• Features:




  Use 8 bit Microchip PIC16F876A,up to 1.1GHz
  Gate time
  0.01 seconds
  0.1 seconds
  1.0 seconds
  Measuring channels ( high and low channels are high impedance )

  1)Low channel

  Measuring range : 0.1MHz ~ 70MHz
  Measurement accuracy:
  ± 100Hz ( 0.01 seconds gate )
  ± 10Hz ( 0.1 seconds gate )
  ± 1Hz ( 1.0 seconds gate )
  Sensitivity:
  0.1MHz ~ 10MHz: better than 50mVPP
  10MHz ~ 60MHz: superior to 50mVPP
  60MHz ~ 75MHz: not tested

  2)High channel frequency (64 points )

  Measuring range : 10MHz ~ 1.1GHz
  Measurement Accuracy : ± 6400Hz (0.01 seconds gate )
  ± 640Hz ( 0.1 seconds gate )
  ± 64Hz ( 1.0 seconds gate )
  High channel sensitivity : 10MHz ~ 30MHz: better than 100mVPP
  30MHz ~ 60MHz: superior to 50mVPP
  60MHz ~ 1.1GHz: not tested
  Automatic channel is automatically selected based on the frequency of the input signal level of channel

  Crystal measuring channel
  Measuring range : 1 MHz ~ 50 MHz ( the most low-end and highest end untested )

  3) . Frequency reference
  5032 package 13.000 MHz Warming voltage controlled crystal oscillator ( VC - TCXO) , frequency stability is ± 2.5 ppm

  IF settings
  The minimum frequency is adjustable in steps of 100 Hz, frequency range 0 ~ 999.9999 MHz, can be set to plus or minus IF mode


  working voltage
  DC input: DC 9V ~ 12V
  working current
  The backlight is enabled: ≤ 75 mA backlight disabling: ≤ 55 mA
  Display
  maximum of 9 digit display
  physical dimensions
  Length * width * height: 92mm × 37mm × 27mm
  Board interface
  RF INPUT (measuring signal input): XH2.54-2P curved needle square socket
  ICSP INPUT (MCU interface): XH2.54-6P curved needle square socket
  ECL INPUT (external clock input): XH2.54-2P curved needle square socket
  POWER INPUT (Power Interface): ① with 3.5mm socket (DC is negative)
  The XH2.54-2P curved needle square socket


  Package Contents
  100% Brand New
  1 X

  0.1MHz ~ 1200MHz frequency meter PLJ-1601-C frequency components of the frequency measurement display module
