6Way 12V 24V Auto Car Power Distribution Blade Fuse Holder Box Block Panel Board box with LED indicator 1 in and 6 out | Автомобили

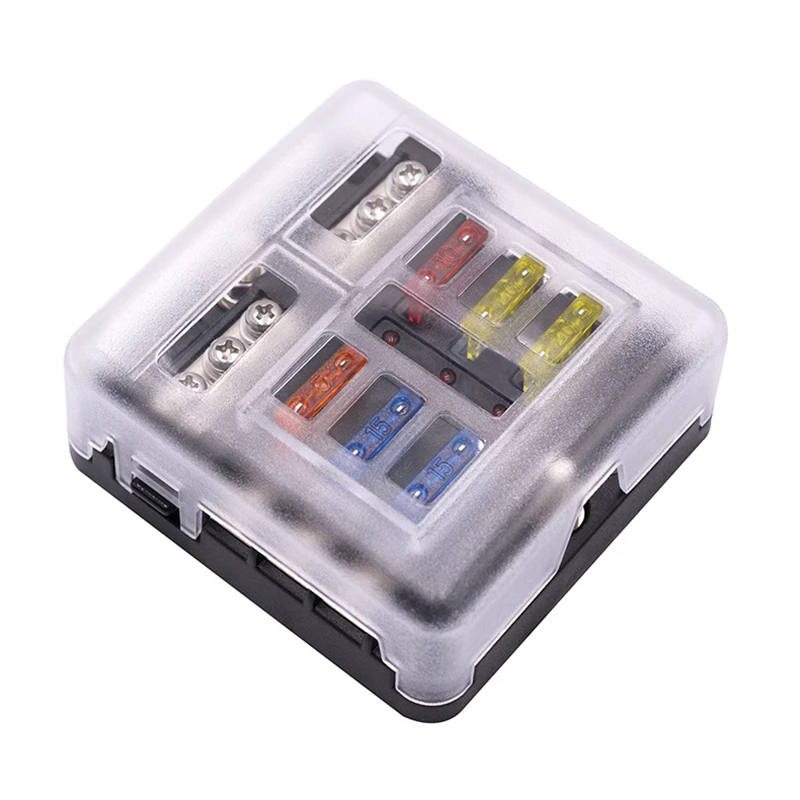

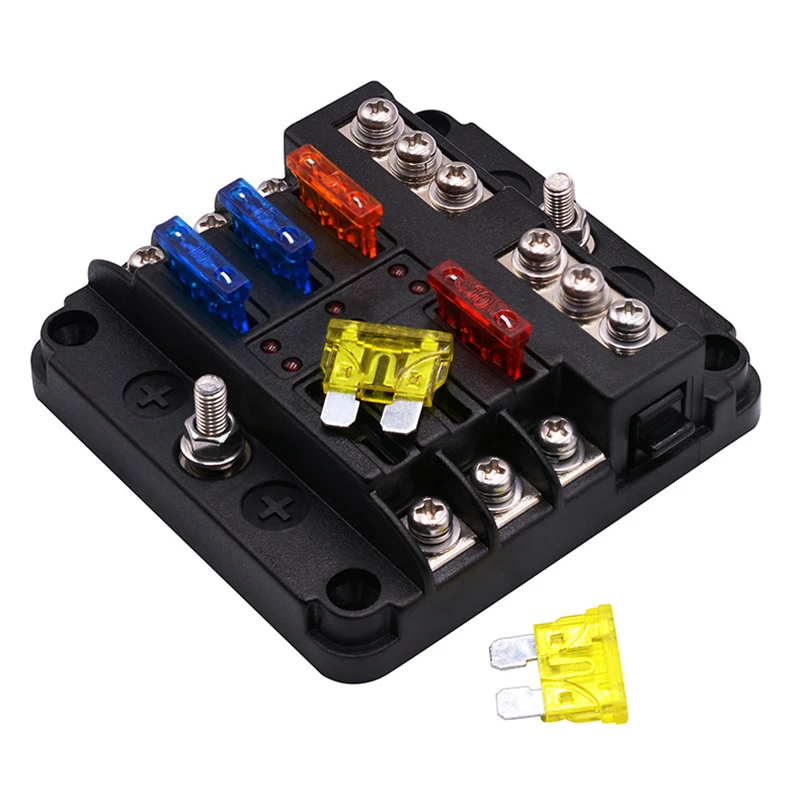

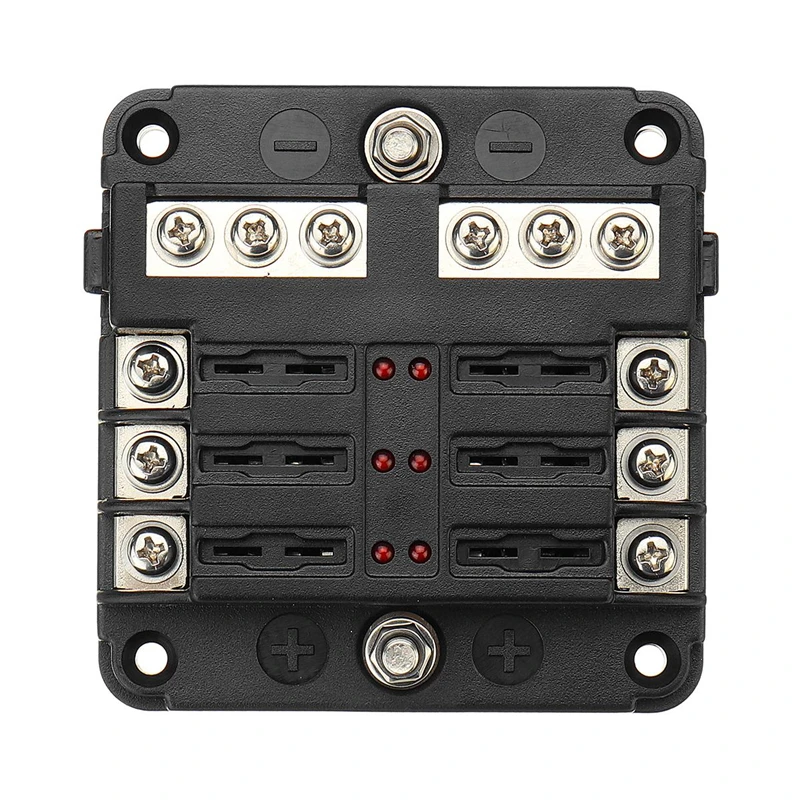

6 Way Blade Fuse Holder Box Block Case 12V/24V Car Truck Boat Marine Bus RV Van

Specifications:
Applicable to: 12V/24V (<32V) DC
Packing: transparent pouch
Size:18x14x4cm

Product material: PBT body, PC waterproof dust cover, nickel-plated copper connection terminal, PPX40 sticker
Input rated voltage: 12V/24V (<32V) DC
Input rated current: 100A (MAX)
Output current: 30A per circuit (MAX)
Indicator color: Red
Main line terminal: M5 threaded stud
Main line wire: #4-6
Single wire terminal: M4 threaded stud
Single wire: #12-16

Package Included:

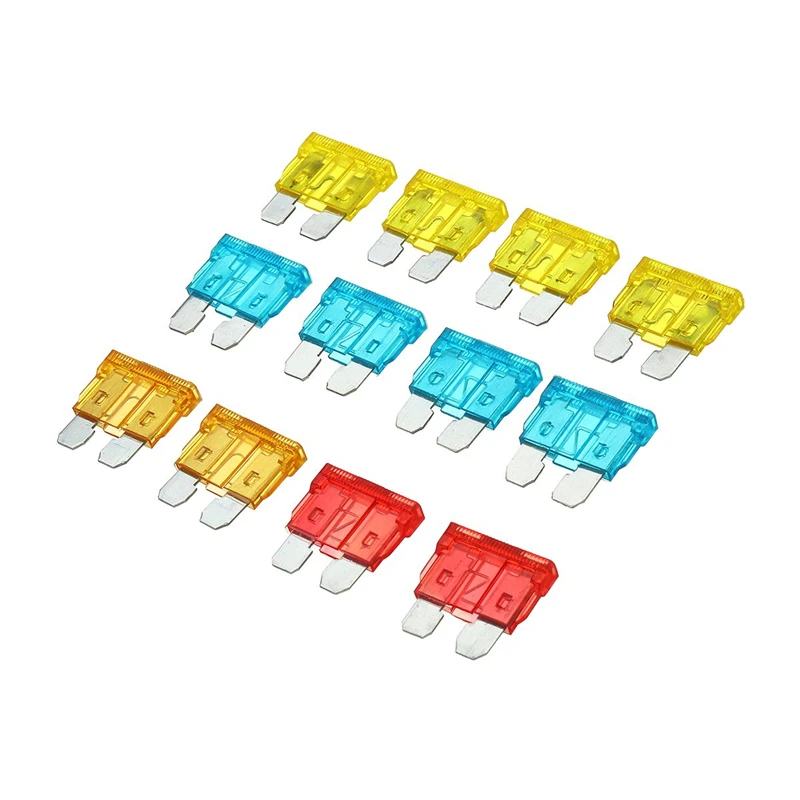

1pcs 6-way fuse box
2pcs 5A Fuse(Orange)
2pcs 10A Fuse(Red)
4pcs 15A Fuse(Blue)
4pcs 20A Fuse(Yellow)
4pcs Screw
2pcs Sticker

Indicator function: When the red LED is lit, it means the fuse has been disconnected, you need to replace the fuse in time to continue running.

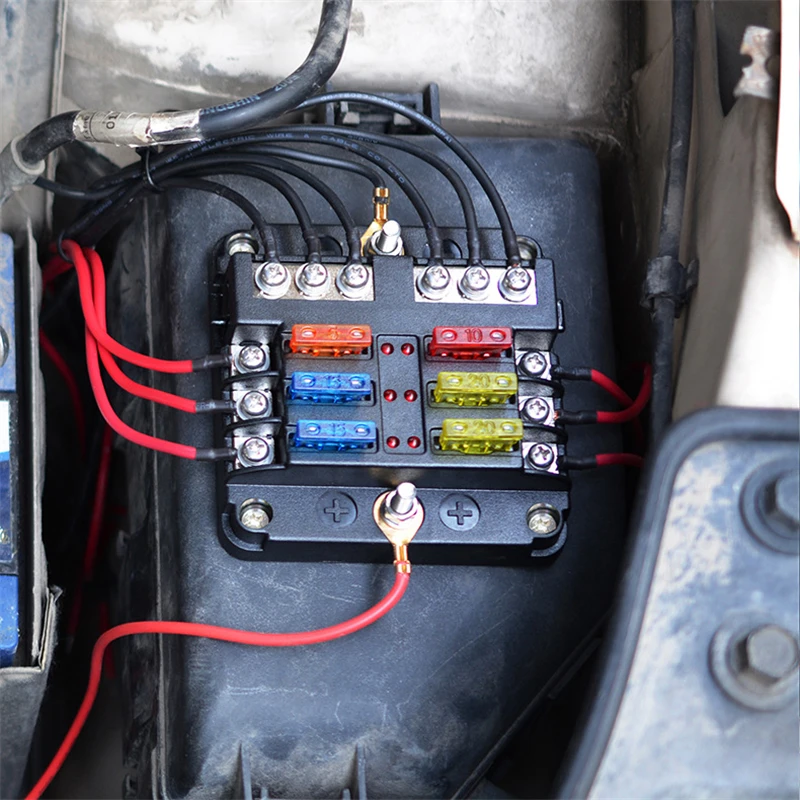

Product installation range: can be installed on cars, Yueshu, RV, bus, yacht, boat, etc.
Product use range: can be directly connected to the line of any electric appliance on the car / ship
[roof lights, car headlights, width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.]
