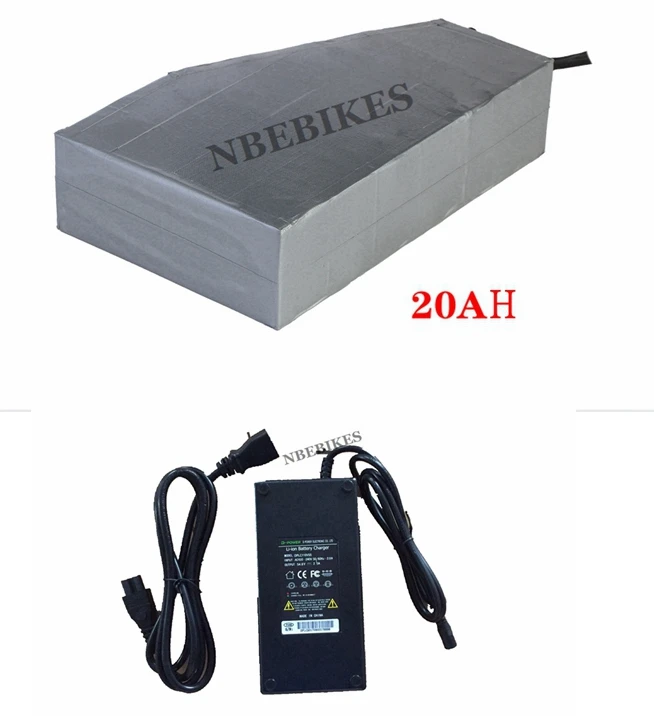

52V Triangle Battery Li Ion 20/30Ah EBike Batterie Pack Electric Bike Wheel Lithium with 58.8V 4A Charger | Спорт и

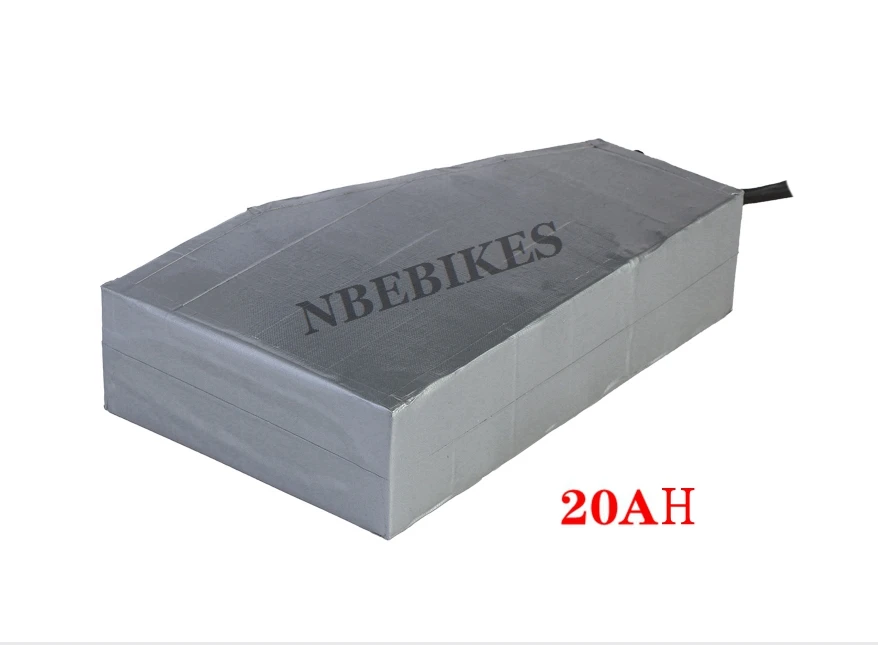

52V  20AH

Items:  52V 20AH
Source Resistance (mΩ):   <40mΩ
Battery Size:   Refer to Size Picture (Manual measure by human, please allow the tolerance.)
Discharge Cutoff Voltage (V):   44+/-1V
Charge Cutoff Voltage (V):   58.8V
Rated Discharge Current (A):   35A
Maximum Continuous Discharge Current (A):  59.4A
Maximum Instantaneous Discharge Current (A):  101.5A
Maximum Continuous BMS Limited Current (A):  35A
Maximum Instantaneous BMS Limited Current (A):  80A
Maximum Continuous Charge Current (A):  10A
Charge Mode:  CC-CV
Standard Charge Current (A):  2A
Charge Time under Standard Charge Current:  12 hours
Fast Charge Current (A):  5A
Charge Time under Fast Charge Current:  4.5 hours
Charge Temperature Range:  0-55°
Discharge Temperature Range:  -20-60°
Battery Net Weight (include BMS) (kg):  5.6kgs
Battery Gross Weight (include Package) (kg):  8kgs
Charging Cycles:  >700 times
Recommended For Motor:EBike 48vHubMotor BBS02 BBSHD

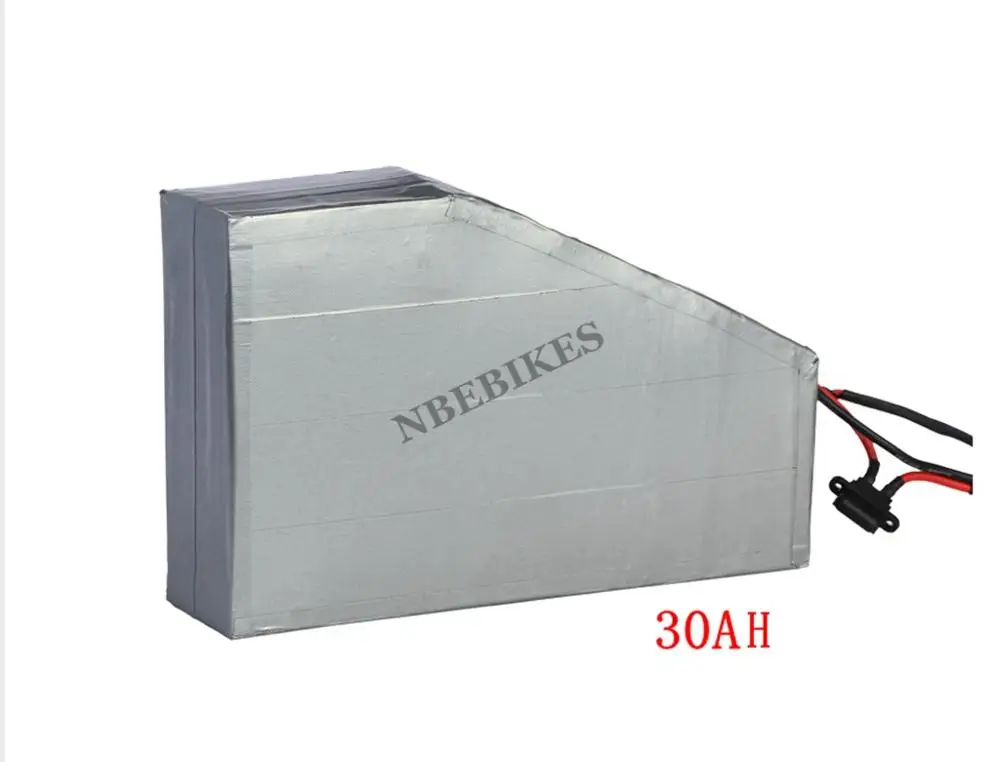

52V  30AH

Battery cell type: INR18650-3500mAh

Nominal Voltage: 52V

Charging Voltage: 58.8± 0.3V

Nominal Capacity: 30Ah (0.2C)

Standard Charge: 2. 0A

Standard Discharge: 20A

Maximum discharge current: 30A

Over charge protection voltage: 4.25V±0.025V

PACK Overcharge protection voltage: 58.8±1.0V Test current 0.2A

Delay time for over charge protection: 1.2-2.0S

Over charge protection release voltage: 4.19V±0.1V

Over discharge protection voltage: 2.80V±0.10V

PACK Over discharge protection voltage: 39-42V Test current 0.2A

Delay time for over discharge protection: 0.3-2.0S

Over discharge protection release voltage: 3.0V±0.10V

Over current protection: 146～185A

Delay time for over current protection: 200-300mS

Delay time for short circuit protection: ≦600uS

Power consumption of protection circuit: ≦30μA

Operating Temperature: 0.2C

Charge: Ambient Temperature -30℃ ~ +85℃, 45to 85%RH

Cell Temperature: 0℃ ~ +50℃, 45 to 85%RH

Discharge: Ambient Temperature -30℃ ~ +85℃, 45 to 85%RH

Charge / Discharge Current and Termination:

Charge: The battery pack is capable of continuous charge at 58.8V and a 2.0A current, cut off current with 200mA

Discharge: The battery pack is capable of continues discharge at rate with20A ,cut off voltage with（39-42)V
