170 Wide Angle HD Car DVR Wireless Wifi backup Parking Reverse Rear View Camera Vehicle Auto security Waterproof | Автомобили
Transmission mode:Wi-Fi digital signal
Antenna specification:Omni directional
Working humidity:85% RH
Image pixel:1.2 million pixels
Angle of view:125~150
Night vision distance:5~10M
Receiver:Any Android system with Wi-Fi mode
-Widely used in cars, buses, commercial vehicles, trucks, construction vehicles and other transportation equipments.
-Intelligent device to receive, eliminating the complexity of the installation's proceeduces, at low cost to achieve intelligent reversing purpose.
-Low bit rate video coding technology, the image is clear and smooth, without delay
-Using U.S. imports of low power processing chipset for fast response time, the system is stable and reliable.
-HD digital car camera, wide angle lens, wide angle's view
-Reverse video recording
Every time when the mobile phone is turned on reversing car's app or apk, the videos can be saved in the smart phone, the five cycle cover in recording your driving track each time on reversing the vehicle, it can minus your risks.
-Intelligent electronic back view mirror function
Through the real-time viewing device, from the back's visual video, you can see in real time for the back side of the vehicle condition, full angle of view, small mirror perspective beyond the traditional post, Blurred vision, improve driving safety conditions.
-Smart Start Background, Start voice call
Android background system can monitor the trigger signal, automatic start, no need to manually enter. Apple voice call start system, static IP link, to achieve online and reverse in the same time.
-Do not turn on the car and any power when you are installing the Reversing Car Devices.
-Find the good spot for the reversing car camera for the installation.
First,Tear down the trunk of the plastic shell, accurately find the three power wires location,
Back-up Light+ (yellow power wire), for reversing lamp power supply
wire anode connection.
ACC Power+ (red power wire), please pick up the car on the ACC
Cathode GND - (black power wire), please connect the negative wire
Second,For installing the camera, remove the license plate light, the camera through the car license plate light slot connected to the host. Connect the three power wires in the correct position, after that you can start the vehicle, adjust the best reversing perspective, fixed the camera firmly by screws, and finally tie up the host and the power cord.

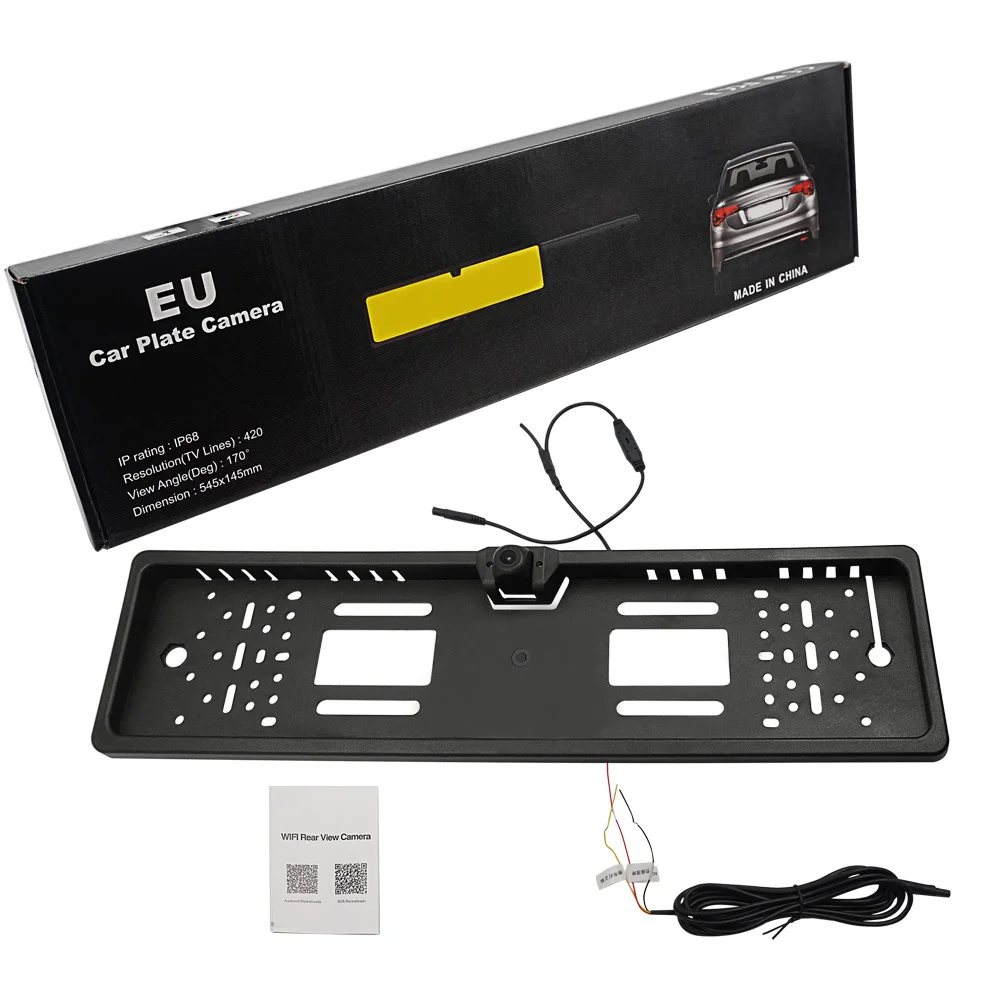

1 x Reversing camera
1 x User manual

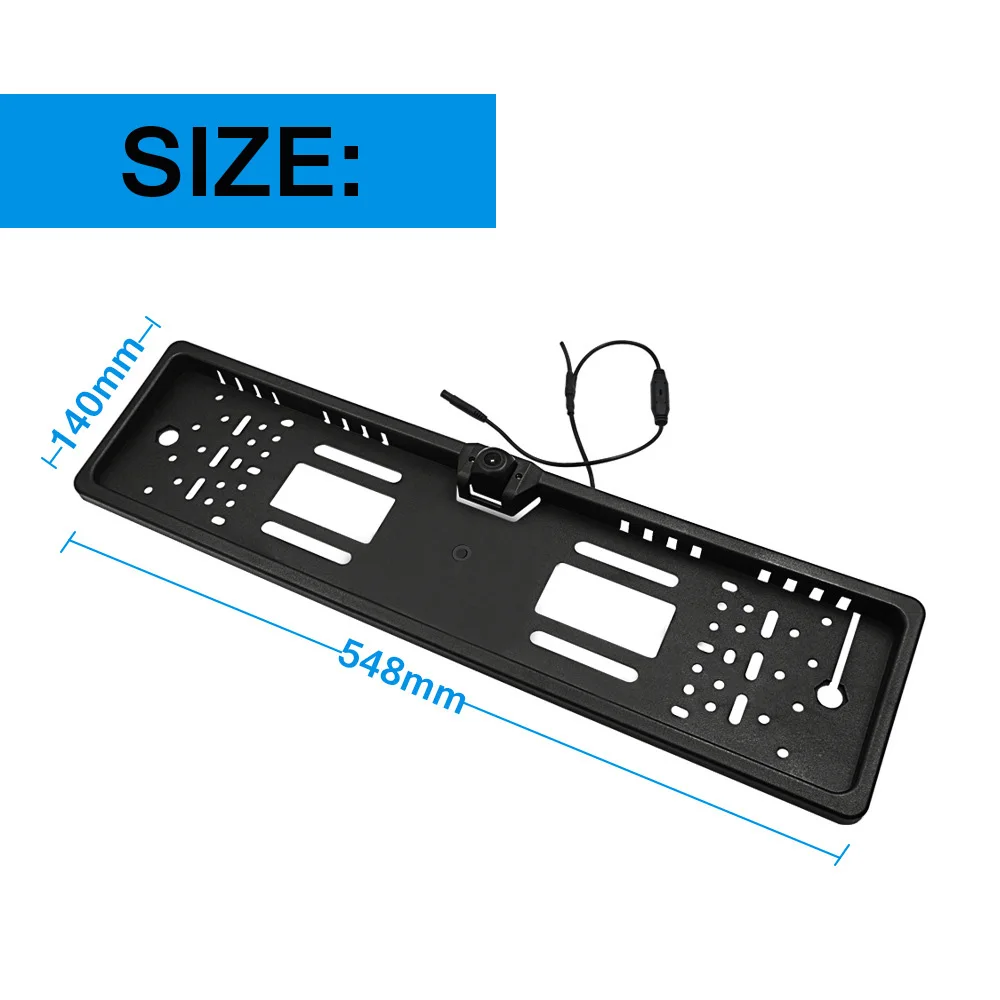

1. Manual measuring, please allow 1 ~ 3mm error,thank you.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
