40W Small Wood Cutting Laser Machine 4040 Little Cutter For Timber Plywood MDF Acrylic With Factory Price High Precision |
40W Small Wood Cutting Laser Machine 4040 Little Laser Cutter For Timber Plywood MDF Acrylic With Factory Price High Precision
Introduction
This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver.This brand new ZODO440 CO2 laser engraver have electric up and down honeycomb table. It can work well in both carving and cutting works.
Features

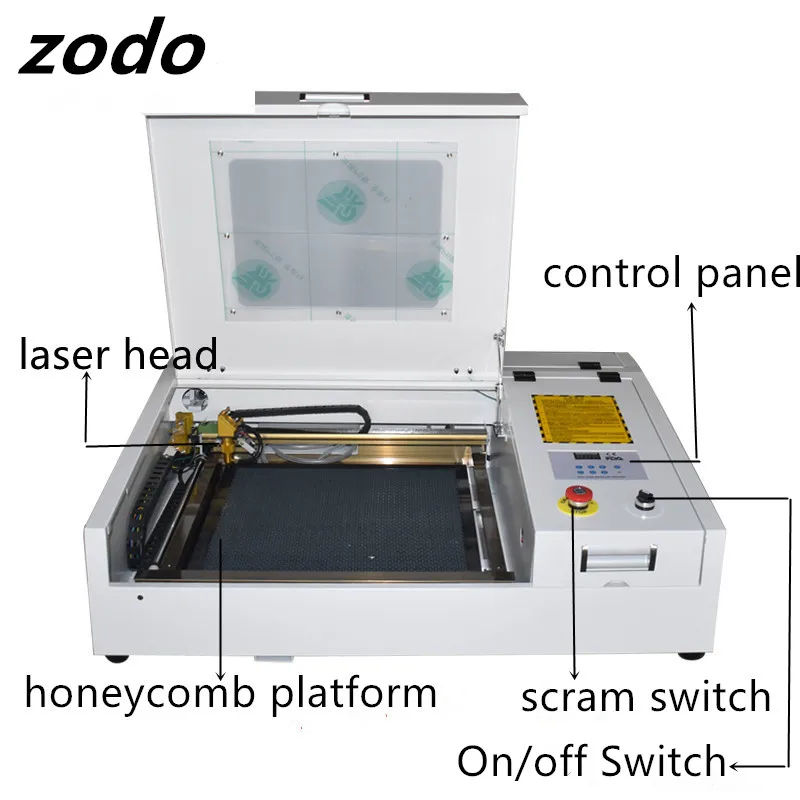

1.Honeycomb Plat Form Heat and the beam can leave quickly when the materials are worked on the honeycomb worktable. At the same time, the open-type design of the honeycomb type can enhance the ability to handle the smoke and debris, ensure the equipment normally operation. So ‘honeycomb worktable’ play a very important role. 2.Laser Head. Yellow industrial laser head, red light positioning. Auto focus, auto blowing. 3.LED Lighting. 4.Digital control panel 5.Emergency stop switch 6.Laser Tube Brand: Beijing LF Brand 7.Corel Draw Software: Has the ability of both NewlySeal and NewlyDraw .So it can work well in both carving and cutting works.By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF/BMP/JPEG. 8.Main board : M2 Main board which can control the machine more precise. 9.Built the heat exhaust fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility. 10.Computer system: Window 7,Window 8, Window XP. APPLE system not applicable. 11.It employs an USB port and thus can be connected to your laptop or desktop. Parameter|
Model |
ZD-440RD/440M |
|
Laser type |
Sealed CO2 laser tube |
|
Laser power |
40W/50W |
|
Engraving/cutting area |
300*400mm/400*400mm |
|
Engraving speed |
0-60000mm/min |
|
Power supply |
220V±10% 50hz/110V±10% 60hz |
|
Location precision |
0.1mm |
|
Working temperature |
15-35°C |
|
Working humidity |
5-95% |
|
Driving mode |
Stepping motor |
|
Cooling mode |
Forced water cooling |
|
Plat form |
Fixed honeycomb table |
|
Software controller |
RD small card/M2 |
|
Dimensions |
980*770*320mm |
|
Net weight |
50kg/70kg |
|
USB |
Support online |
Applicable Materials And Industry
Materials: The computerized Mini laser engraving and cutting machine is suitable for various materials, such ad bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, fabrics, paper, film, canvas, acrylic and plastics. Industry: This mini machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoe making, furniture industry, craft work, nameplates decorations, woodcut and other industries.

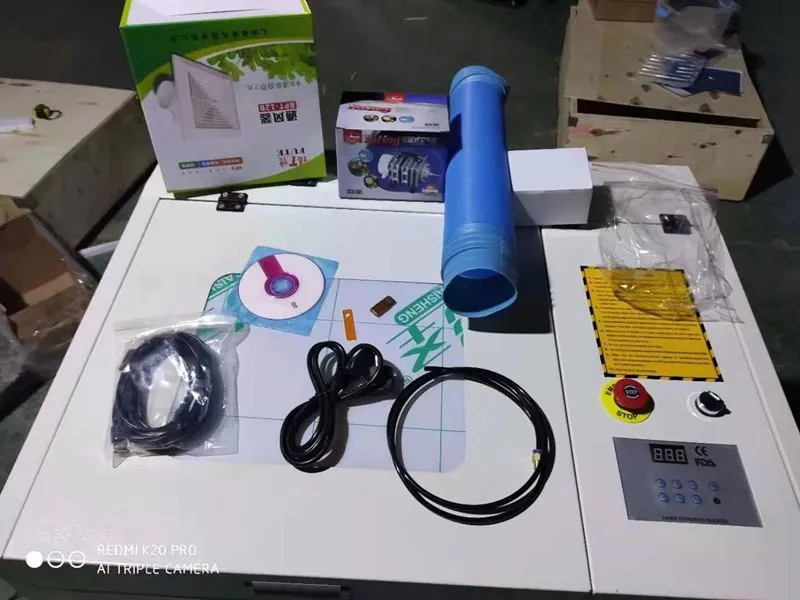

Packing List
1.Accessory Bag x1
2.Instruction Video CD x1
3.English User Manual x1
4.Co2 laser engraver x1
5.Water pump x1
6.Smoke Pipe x1
7.Smoke Fan x1
8.Power wire x1
9.USB cable x1
10.USB Key Soft Dog x1
11.Air pump x1
Package
1: We have 3 layers package: The outside, we adopt plywood case, which is fumigation free.
2: In the middle is covered with thick foam to protect the machine from shaking.
3: Inside this is covered by thickening plastic bag for waterproof.
Our Service And Warranty
1.Video technical support is available from us. It can help you to learn and operate the machine step by step. 2.110W 60hz for USA, Canada, Japan etc. 220V-250V for other countries all over the world. Please tell me what voltage you want after you buy this item. 3.We offer one year warranty for the whole machine,three month warranty for the laser tube &lens. 4.We offer whole life free consultation for the machine . 5.24hours online aftersale serviceDelivery
1.we can delivery machine to you by air, sea or TNT,DHL etc. express delivery. usually we advise you choose air way for small machine, sea way for big machine and spare parts for express delivery. If you want to send the machine by DHL,UPS, or FedEx, please tell us your city and post code. We will check the courier cost for you. So please contact us before you order.
2. When payment and shipping information are confirmed, shipping will be made within 7 working days. 8. If we are not on line, please leave us messages on AliExpress. Any questions on our product or your order, we will reply you within 24 hours.
