12.5 inch 2K display module kit IPS full viewing angle HDMI resolution 2560X1440 high score highlight color gamut DIY displ | Компьютеры

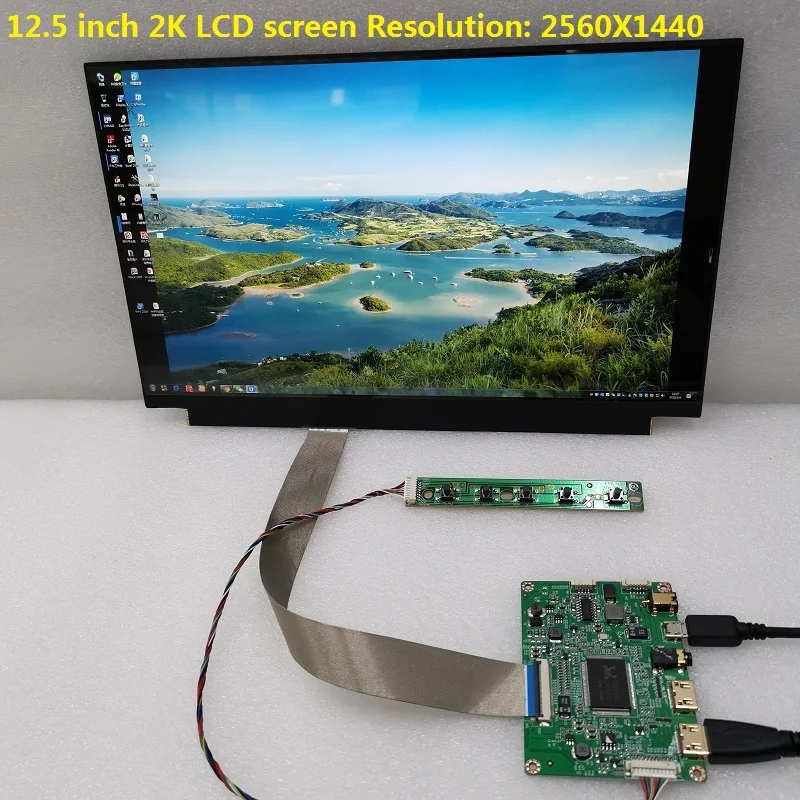

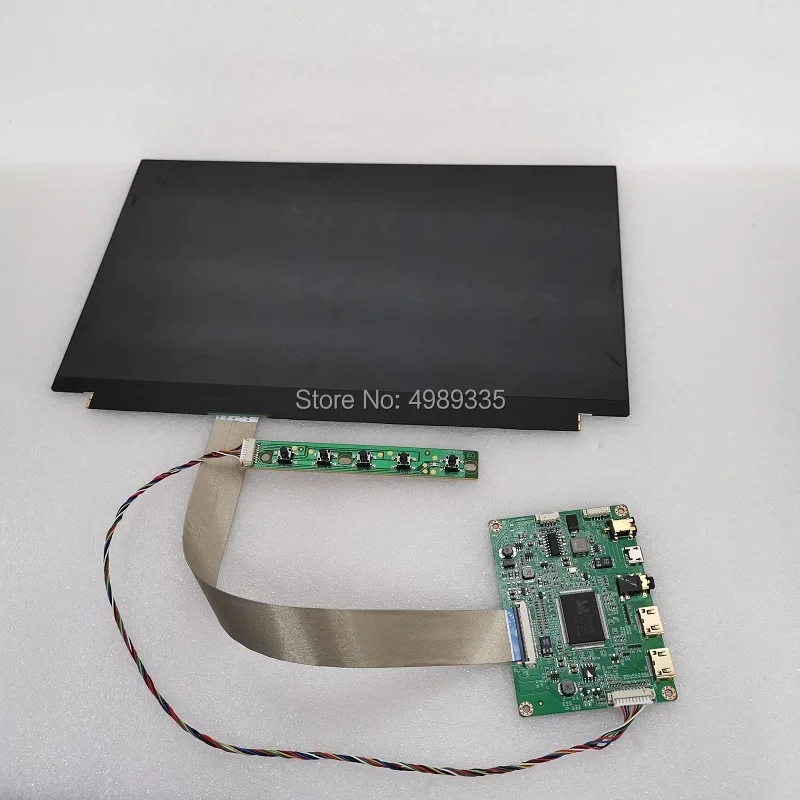

12.5 inch 2K display module block kit IPS screen HDMIUSB5V power resolution 2560X1440

One: structure size 1. Display area (H × V) 276.48 × 155.52 mm (H × V) 2. Opening area (H × V)-(H × V) 3. Appearance size (H × V) 282.68 × 178.66 mm (H × V) 4. Appearance thickness 2.1 / 2.3 (Typ./Max.) Mm Two: basic parameters of the panel 1.12.5 inches inch Panel type: IGZO TFT-LCD 2. Panel resolution: 2560 (RGB) × 1440, Quad-HD 3. Display mode: normally black display, transmissive 4. Surface treatment: Matte surface, Hard coating (2H) 5. Panel brightness: 350 cd / m2 (Typ.) 6. Working temperature: 0 ~ 50 ℃ 7. Contrast ratio: 1000: 1 (Typ.) (Transmission) 8. Display color: 16.7M (8-bit) 9. Light source type: WLED 10. Color gamut 72% NTSC (CIE1931) 11. Viewing angle 89/89/89/89 (Typ.) (CR≥10) Three: drive motherboard size and basic parameters (main chip RTD2550) 1. Length * Width * Thickness: 82 * 60 * 1.2m 2. Input HDMI (2) HDMI (T.M.D.S) digital signal (mini type) 3. Output PANEL interface 0.5mm pitch 30PIN forward flip FFC connector 4. Output Headphone output Support horizontal socket 5. Power supply Input power 5VUSB input, 12V DC input, dual power input (also single power input) 6. Drive screen voltage default 3.3V 7. Power supply operation Normal working mode, low power consumption mode 8. Main board standby power consumption <0.3W  9. OSD menu (brightness, contrast, automatic correction, phase, clock, line position, function setting, reset), etc. 10. OSD language Chinese, English, etc. 11. Press the key POWER / ENTER / MENU / UP / DOWN 5 key Tips: The pictures in the link are actually shipped and taken in kind. If you need to drive the motherboard size, please ask the store, thank you
