12V 24V 100W Flexible Monocrystalline Solar Panel For Car Boat Home Battery Can Charge Waterproof With PWM Controller |

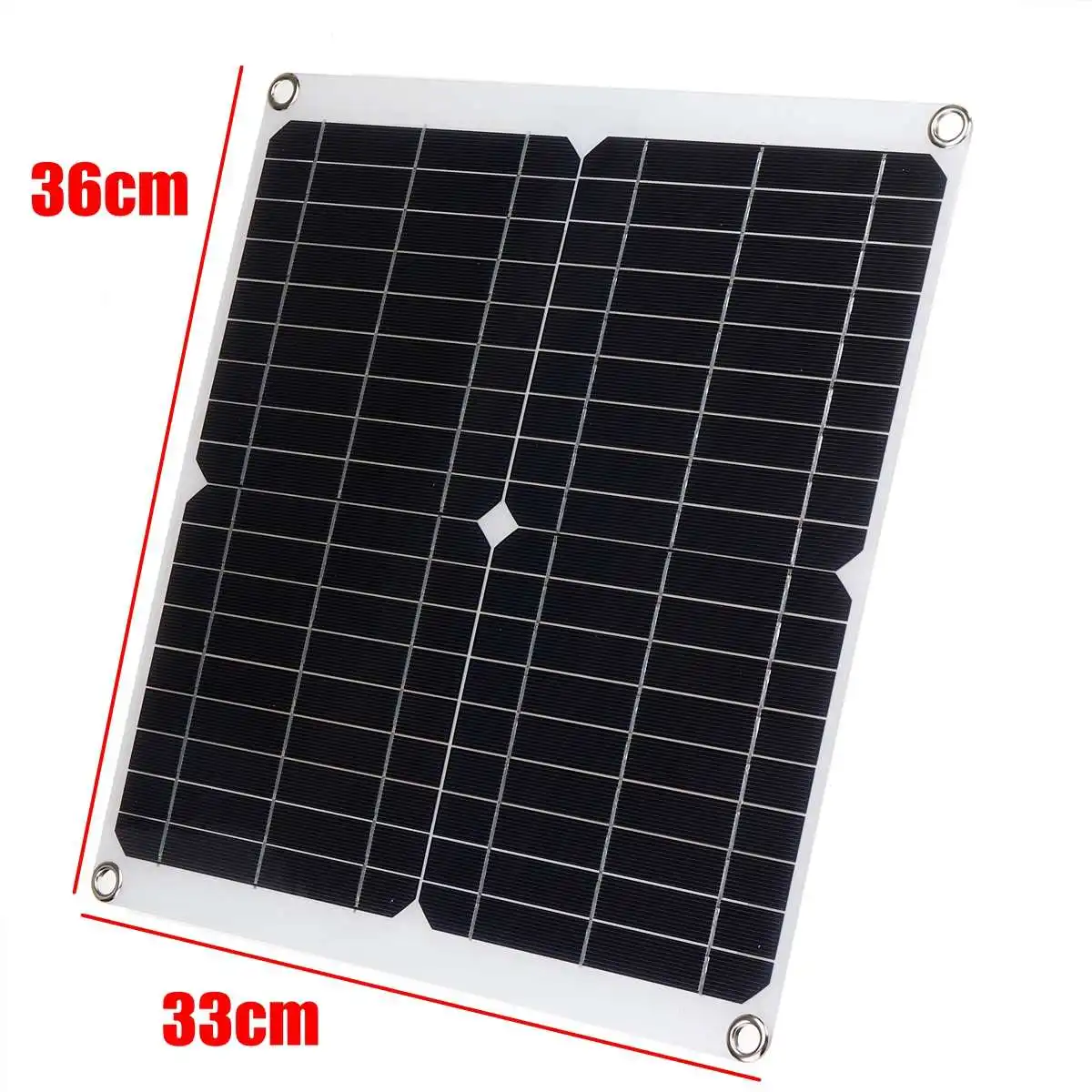

Solar Panel Specifications:
Material: monocrystalline silicon
Working Voltage: 18V
Temperature: - 40 degrees~60 degrees
Shell Material: Plastic
Back Board Material: Iron(10A-30A)
Display: LCD Screen
Batt Voltage: 12V/24V auto
Charge Current: 10A, 20A, 30A (pls choose which current you need)
Discharge Current: 10A, 10A, 10A
Operating Temperature: -35~+60
Max Solar Input: 12V battery, the highest 23V
Float Charge: 13.7V(defaul, adjustable)
Discharge Stop: 10.7V(defaul, adjustable)
Discharge Reconnect: 12.6V(defaul, adjustable)
Charge Reconnect: 13V
Voltage of Open Light: Solar Panel 8V(Light lights delay)
Voltage of Close Light: Solar Panel 8V(Light off delay)
USB Output: 2 way USB output, 5V/2.5A(MAX)
Size: (L)X(W)X(H) 13.3x7x3.2cm
● Made of monocrystalline silicon, it has a 18~21% high conversion rate.
● Environment-friendly and pollution-free, it realizes the energy conversion from solar power to electric power
● Wide range of applications, it can be used in lots of place such as for car, small household appliances, ect.
● Big LCD display, all adjustable parameter
● Dual USB output, to support Apple's mobile phone charging
● Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection
● Suitable for solar green light, solar light boxes advertising board, solar insecticidal lights, housing solar power generation system, marine solar power generation system, outdoor survival solar power generation system

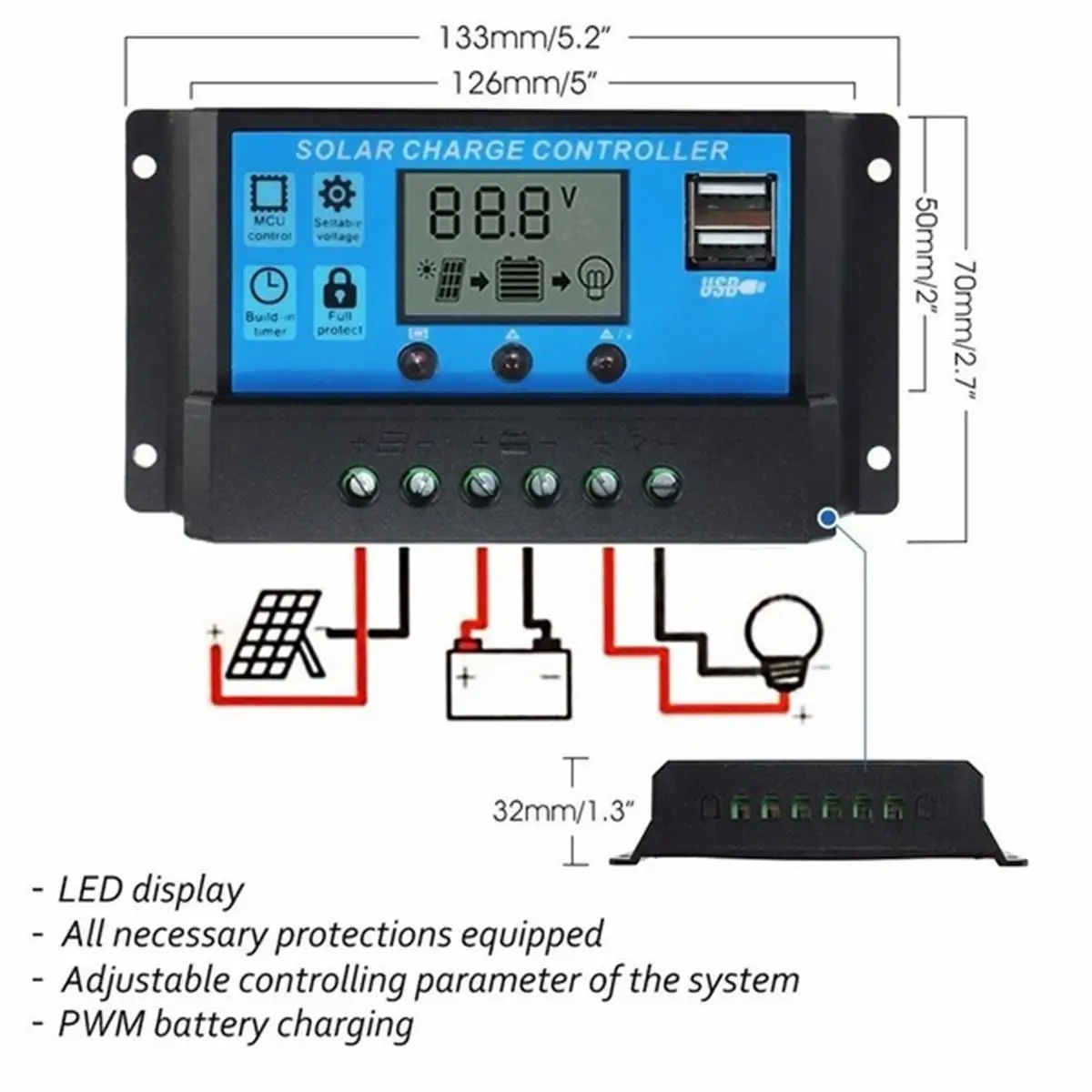

1.Connect the battery to the charge regulator-plus and minus
2.Connect the photovoltaic module to the regulator-plus and minus
3.Connect the consumer to the regulator-plus and minus
NOTE: The reverse order applies when deinstalling, an improper order can damage the controller
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation
2.The battery cable should be as short as possible to minimize loss
3.The regulator is only suitable for lead acid batteries: OPEN,AGM,GEL, it is not suited for nickel metal hydride, lithium ions or other batteries
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator

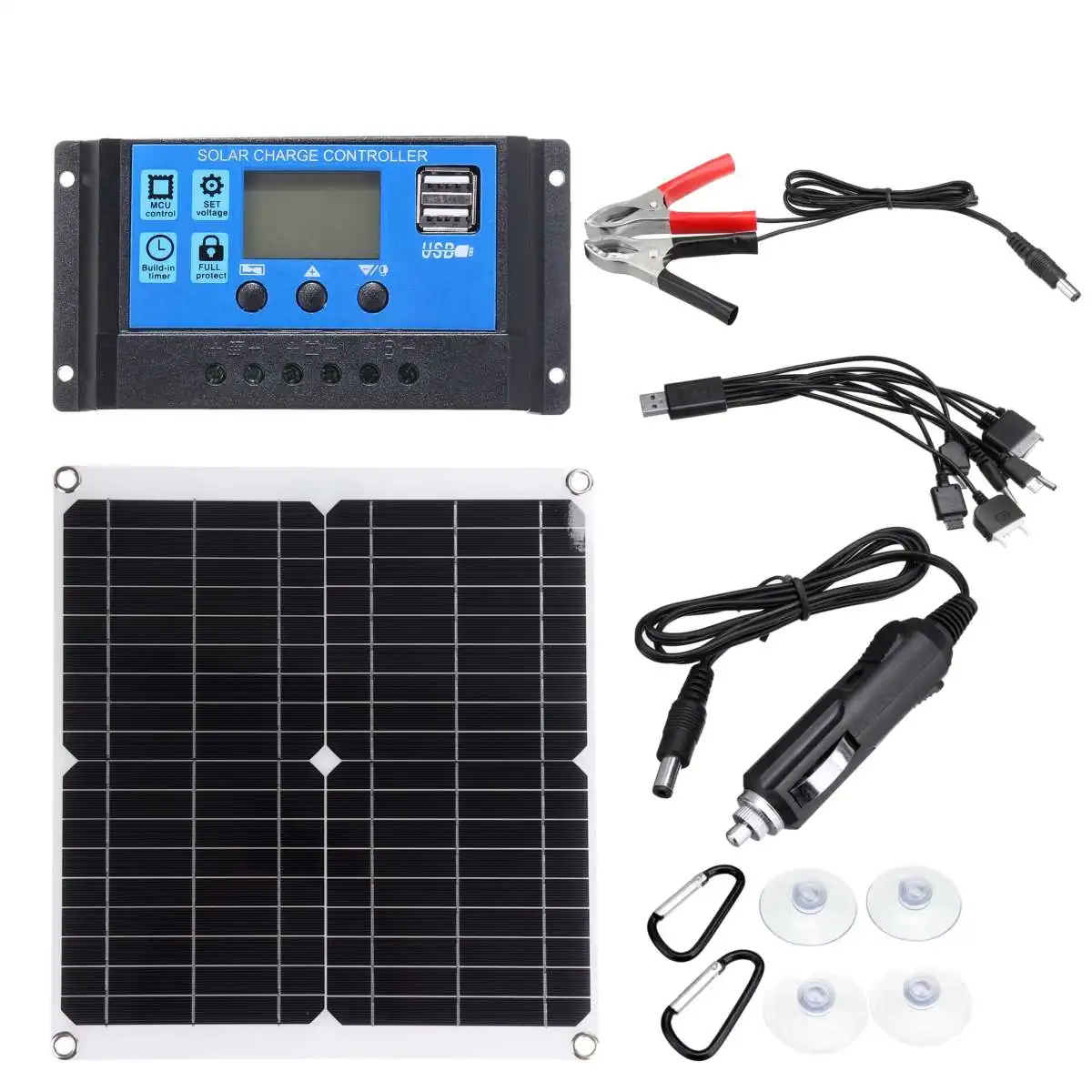

1 x Solar Panel

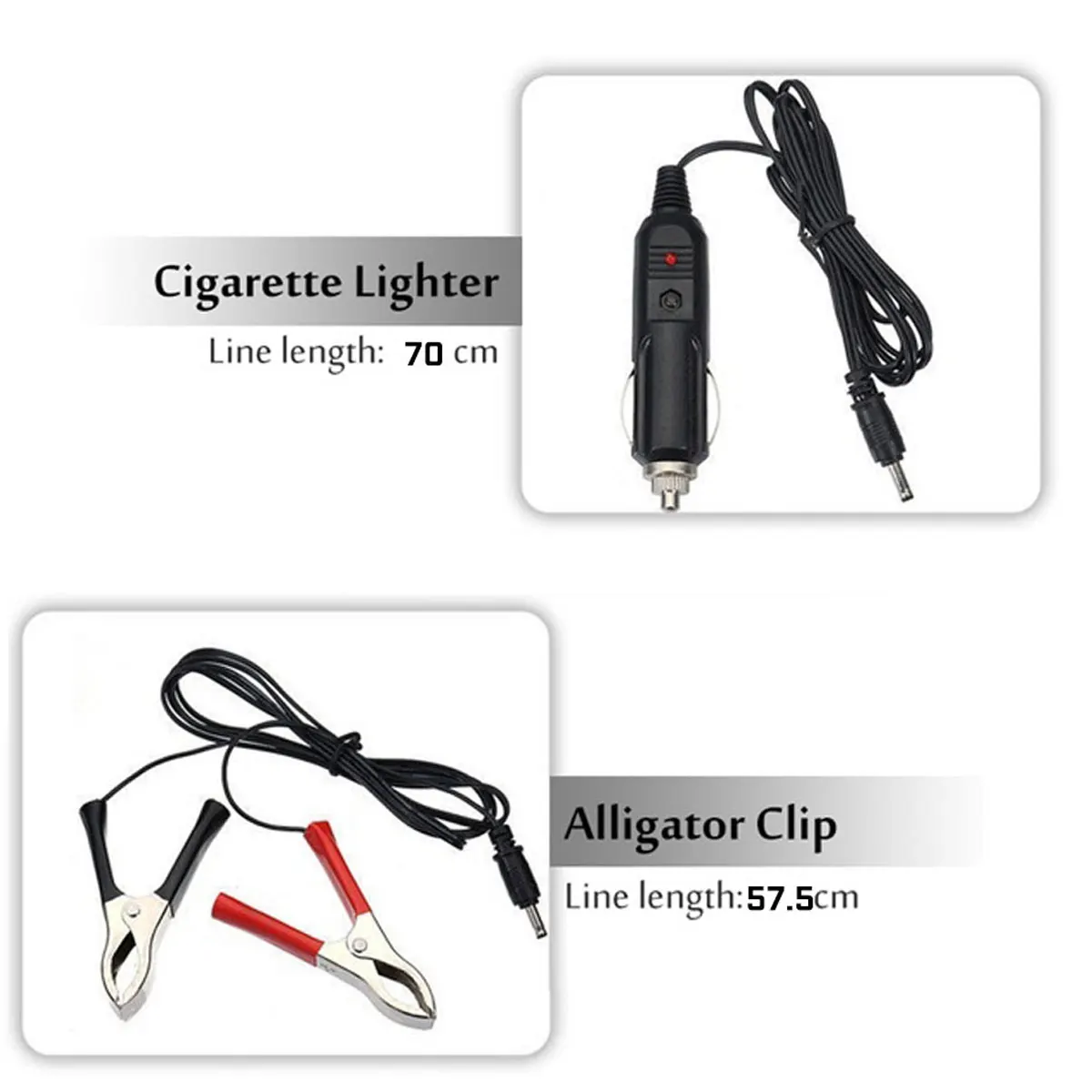

1 x Battery Clip
1 x Cigarette lighter
1 x 10 IN 1 Wire
4 x Sucker
2 x Buckle
1 x Solar Charger Controller
1 x English User Manual
(excluding other decorations)
Please feel free to contact us if you have any questions. Hope a nice day!
Please allow slight deviation of measurement due to manual measurement.
Due to different producing batches, product details might be a little different.
Due to different monitors and different light, the picture may not reflect the actual color of the item.
Please consider the actual sizes shown in the listing as the pictures are generally enlarged to show detail.
